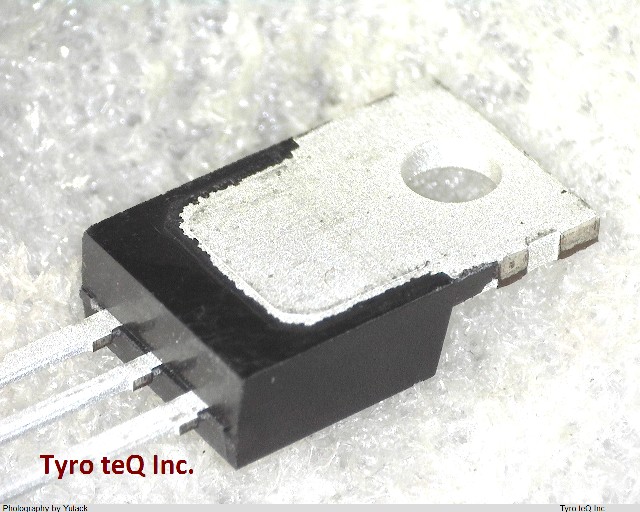

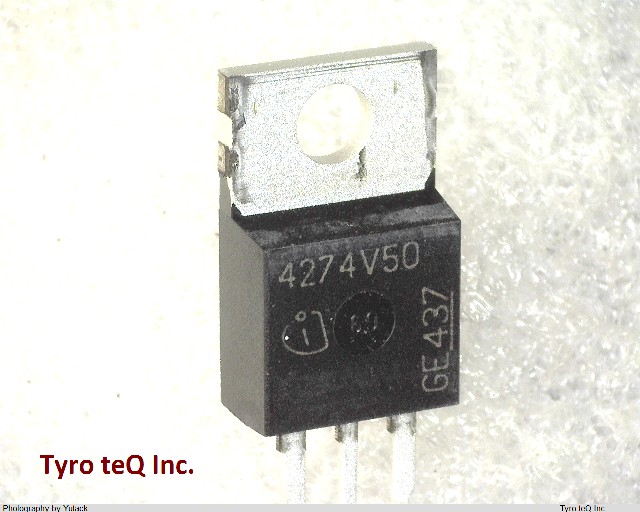

TLE4274V50

Name: TLE4274V50
Brand: INFINEON
SKU: 300026345-0000-0000-0000

TLE4274V50 - INFINEON の商品詳細ページです。

２営業日以内に回答いたします

TLE4274V50 の詳細情報

型番	TLE4274V50
メーカー	INFINEON
Adjustability	FIXED
Dropout Voltage1-Max	0.5 V
Dropout Voltage1-Nom	0.25 V
Input Voltage Absolute-Max	45 V
Input Voltage-Max	40 V
Input Voltage-Min	5.5 V
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e3
Line Regulation-Max	0.025 %
Load Regulation-Max	0.05 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	150 Cel
Operating Temperature, TJ-Min	-40 Cel
Output Current1-Max	0.4 A
Output Voltage1-Max	5.2 V
Output Voltage1-Min	4.8 V
Output Voltage1-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	TO-220
Package Equivalence Code	SIP3,.1TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Screening Level	AEC-Q100
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	4 %
