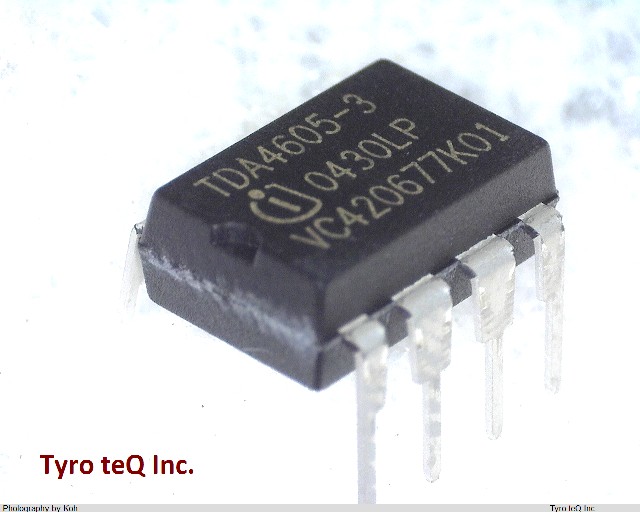

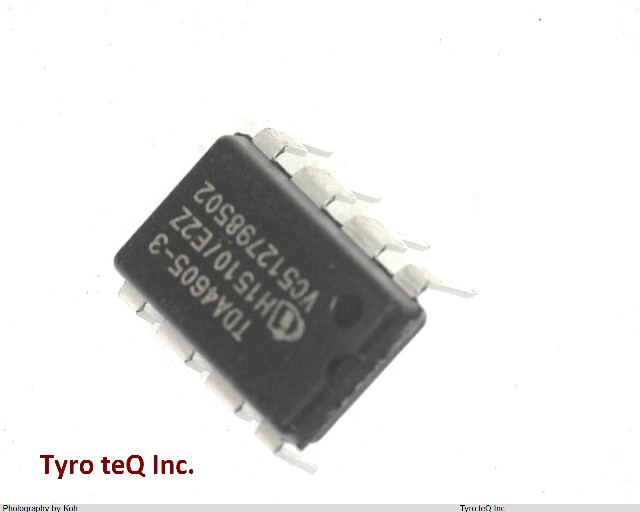

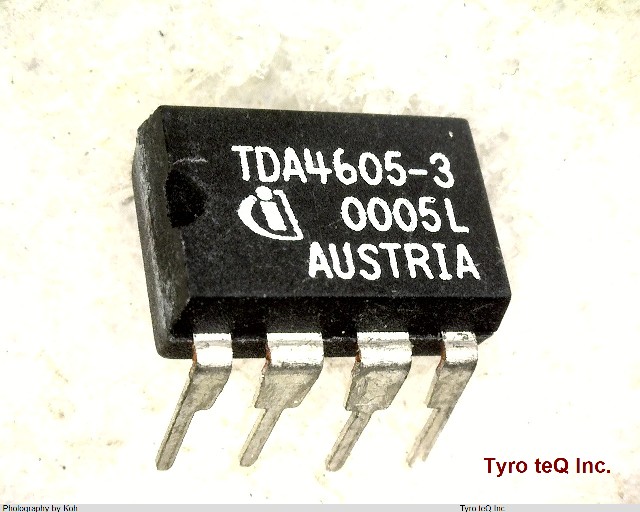

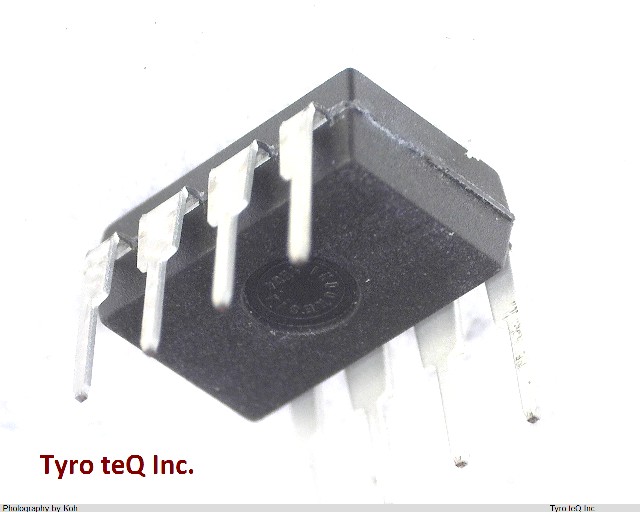

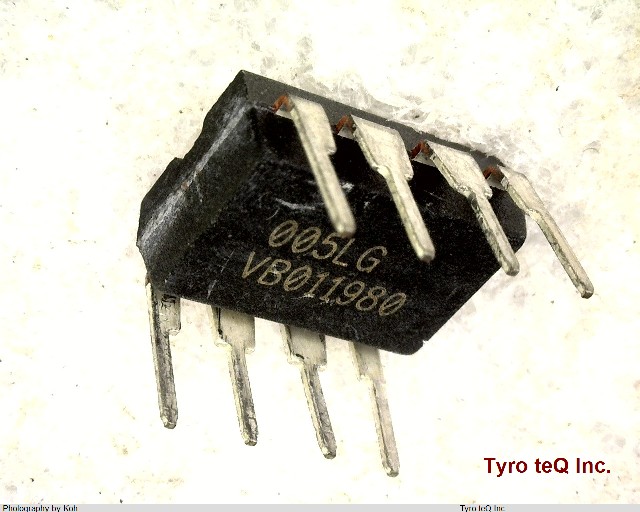

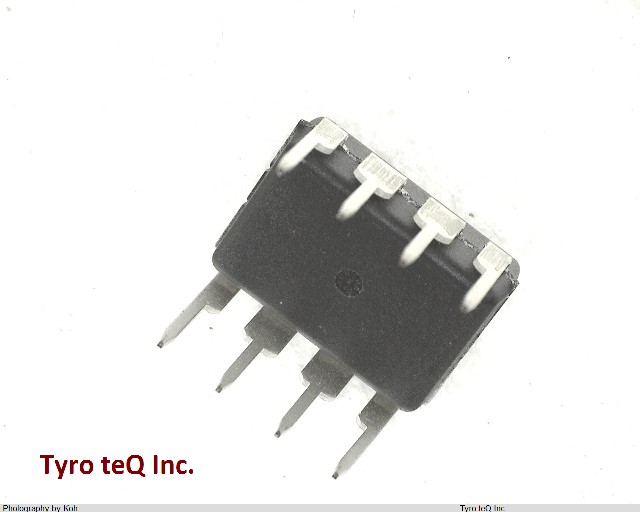

TDA4605-3

Name: TDA4605-3
Brand: INFINEON
SKU: 300001147-0000-0000-0000

TDA4605-3 - INFINEON の商品詳細ページです。

２営業日以内に回答いたします

TDA4605-3 の詳細情報

型番	TDA4605-3
メーカー	INFINEON
Analog IC - Other Type	SWITCHING CONTROLLER
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	15.5 V
Input Voltage-Min	7.5 V
Input Voltage-Nom	10 V
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e3
Length	9.585 mm
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-20 Cel
Output Current-Max	0.5 A
Output Voltage-Nom	3 V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Qualification Status	Not Qualified
Seated Height-Max	5.33 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	14 mA
Surface Mount	NO
Switcher Configuration	SINGLE
Switching Frequency-Max	40 kHz
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	7.62 mm
