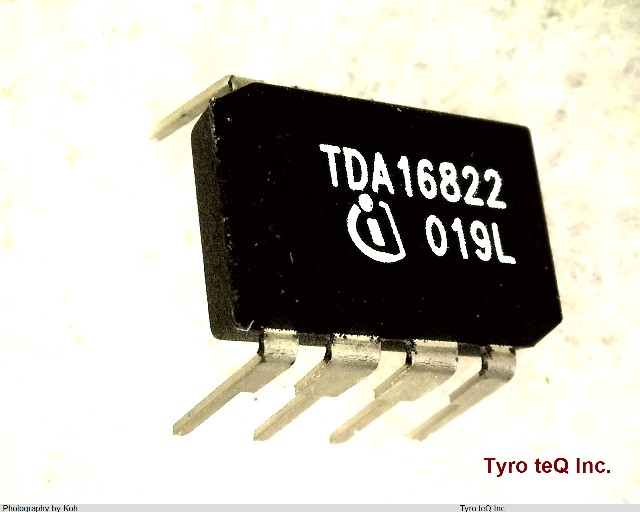

TDA16822

Name: TDA16822
Brand: INFINEON
SKU: 300384032-0000-0000-0000

TDA16822 - INFINEON の商品詳細ページです。

２営業日以内に回答いたします

TDA16822 の詳細情報

型番	TDA16822
メーカー	INFINEON
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	17 V
Input Voltage-Min	14.5 V
Input Voltage-Nom	15 V
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e3
Length	9.52 mm
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	100 Cel
Operating Temperature-Min	-25 Cel
Output Current-Max	2.5 A
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Qualification Status	Not Qualified
Seated Height-Max	4.37 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	NO
Switcher Configuration	SINGLE
Switching Frequency-Max	107 kHz
Temperature Grade	OTHER
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Width	7.62 mm

会社名称	Infineon Technologies AG
設立	1999
所在地	Am Campeon 1-12 85579 Neubiberg Germany
URL	http://www.infineon.com/
