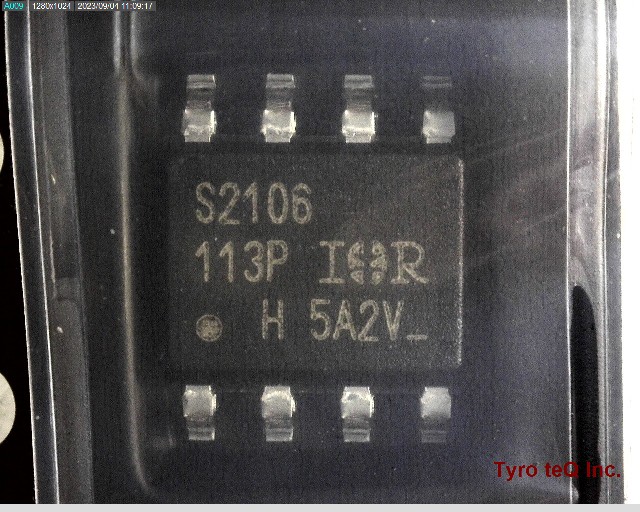

IRS2106STRPBF
1
-
- 個
２営業日以内に回答いたします
IRS2106STRPBF の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | IRS2106STRPBF |
|---|---|
| メーカー | INFINEON |
| Built-in Protections | TRANSIENT; UNDER VOLTAGE |
| DLA Qualification | Not Qualified |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER |
| J-STD-609 Code | e3 |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e3 |
| Length | 4.9 mm |
| Length (mm) | 4.9 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Min (Cel) | -40 |
| Output Current Flow Direction | SOURCE AND SINK |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | 15 V |
| Power Supplies (V) | 15 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Seated Height-Max (mm) | 1.75 |
| Sub Category | MOSFET Drivers |
| Supply Voltage-Max | 20 V |
| Supply Voltage-Max (V) | 20 |
| Supply Voltage-Min | 10 V |
| Supply Voltage-Min (V) | 10 |
| Supply Voltage-Nom | 15 V |
| Supply Voltage-Nom (V) | 15 |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Pitch (mm) | 1.27 |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Turn-off Time | 0.28 us |
| Turn-off Time (us) | 0.28 |
| Turn-on Time | 0.3 us |
| Turn-on Time (us) | 0.3 |
| Width | 3.9 mm |
| Width (mm) | 3.9 |
| 会社名称 | Infineon Technologies AG |
|---|---|
| 設立 | 1999 |
| 所在地 | Am Campeon 1-12 85579 Neubiberg Germany |
| URL | http://www.infineon.com/ |
