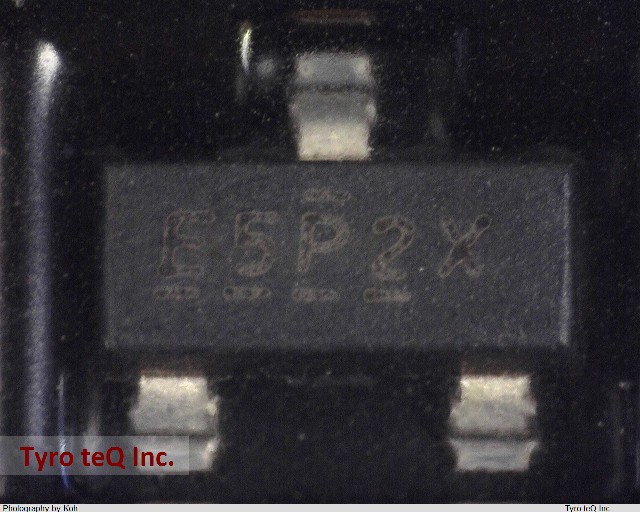

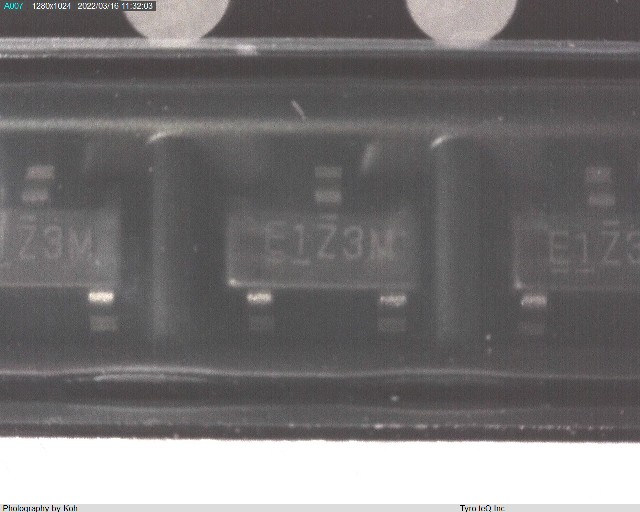

IRLML6402GTRPBF

Name: IRLML6402GTRPBF
Brand: INFINEON
SKU: 190110394-0000-0000-0000

IRLML6402GTRPBF - INFINEON の商品詳細ページです。

２営業日以内に回答いたします

IRLML6402GTRPBF の詳細情報

型番	IRLML6402GTRPBF
メーカー	INFINEON
Additional Feature	HIGH RELIABILITY
Avalanche Energy Rating (Eas)	11 mJ
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	20 V
Drain Current-Max (Abs) (ID)	3.7 A
Drain Current-Max (ID)	3.7 A
Drain-source On Resistance-Max	0.065 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
Feedback Cap-Max (Crss)	110 pF
JEDEC-95 Code	TO-236AB
JESD-30 Code	R-PDSO-G3
JESD-609 Code	e3
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	3
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Operating Temperature-Min	-55 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	P-CHANNEL
Power Dissipation Ambient-Max	1.3 W
Power Dissipation-Max (Abs)	1.3 W
Pulsed Drain Current-Max (IDM)	22 A
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	YES
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transistor Application	SWITCHING
Transistor Element Material	SILICON
