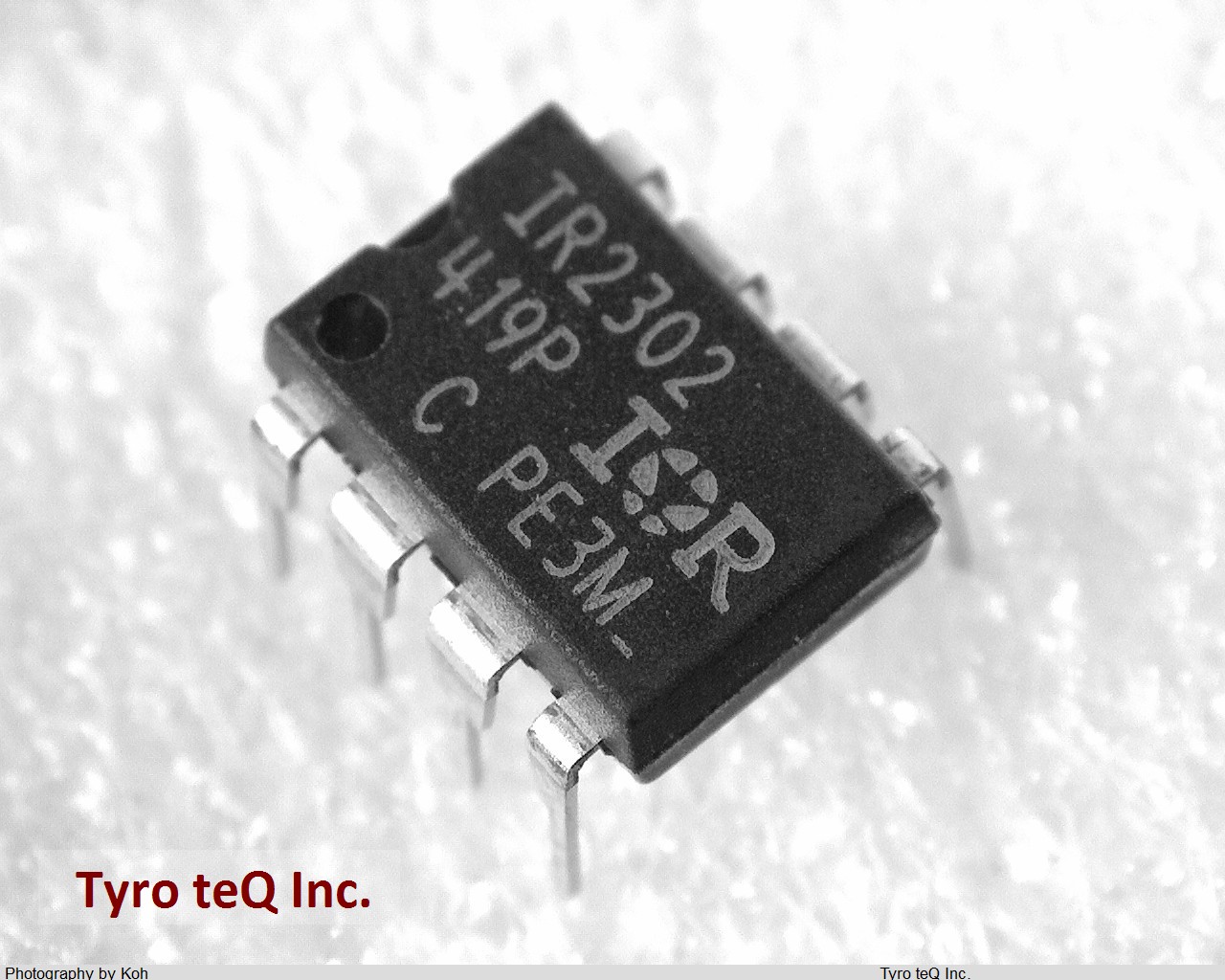

IR2302
1
-
- 個
２営業日以内に回答いたします
IR2302 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | IR2302 |
|---|---|
| メーカー | INFINEON |
| Additional Feature | FLOATING LOAD DRIVER; UNDER VOLTAGE LOCKOUT CIRCUIT |
| High Side Driver | YES |
| Interface IC Type | HALF BRIDGE BASED MOSFET DRIVER |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e0 |
| Length | 4.9 mm |
| Moisture Sensitivity Level | 2 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 150 Cel |
| Operating Temperature-Min | -40 Cel |
| Output Peak Current Limit-Nom | 0.2 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | 15 V |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Sub Category | MOSFET Drivers |
| Supply Voltage-Max | 20 V |
| Supply Voltage-Min | 5 V |
| Supply Voltage-Nom | 15 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Turn-off Time | 0.28 us |
| Turn-on Time | 0.95 us |
| Width | 3.9 mm |
| 会社名称 | Infineon Technologies AG |
|---|---|
| 設立 | 1999 |
| 所在地 | Am Campeon 1-12 85579 Neubiberg Germany |
| URL | http://www.infineon.com/ |
IR2302のレビュー
IR2302 のご注文について
050-3612-7934
045-263-9989
IR2302 - INFINEON の商品詳細ページです。
