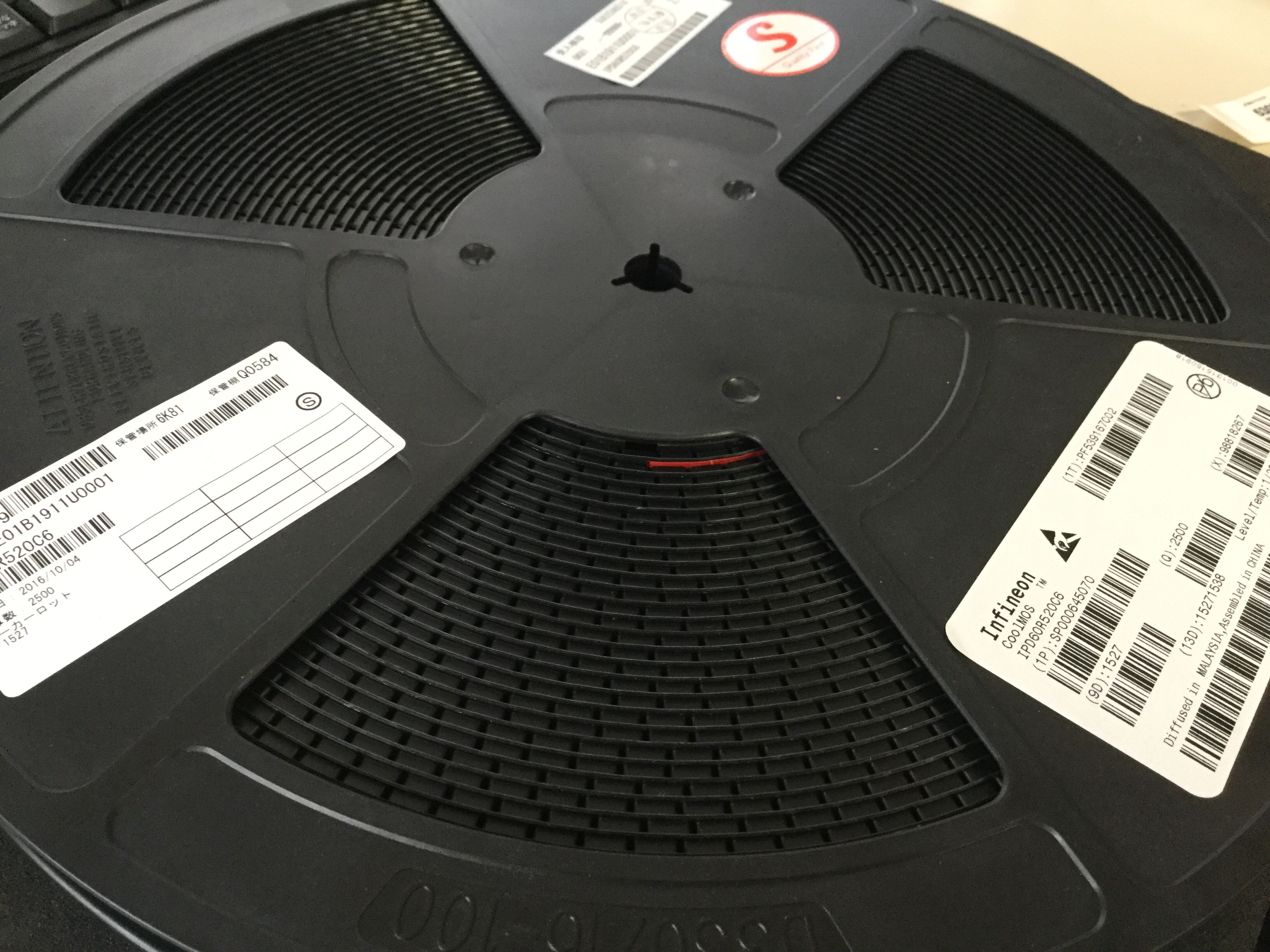

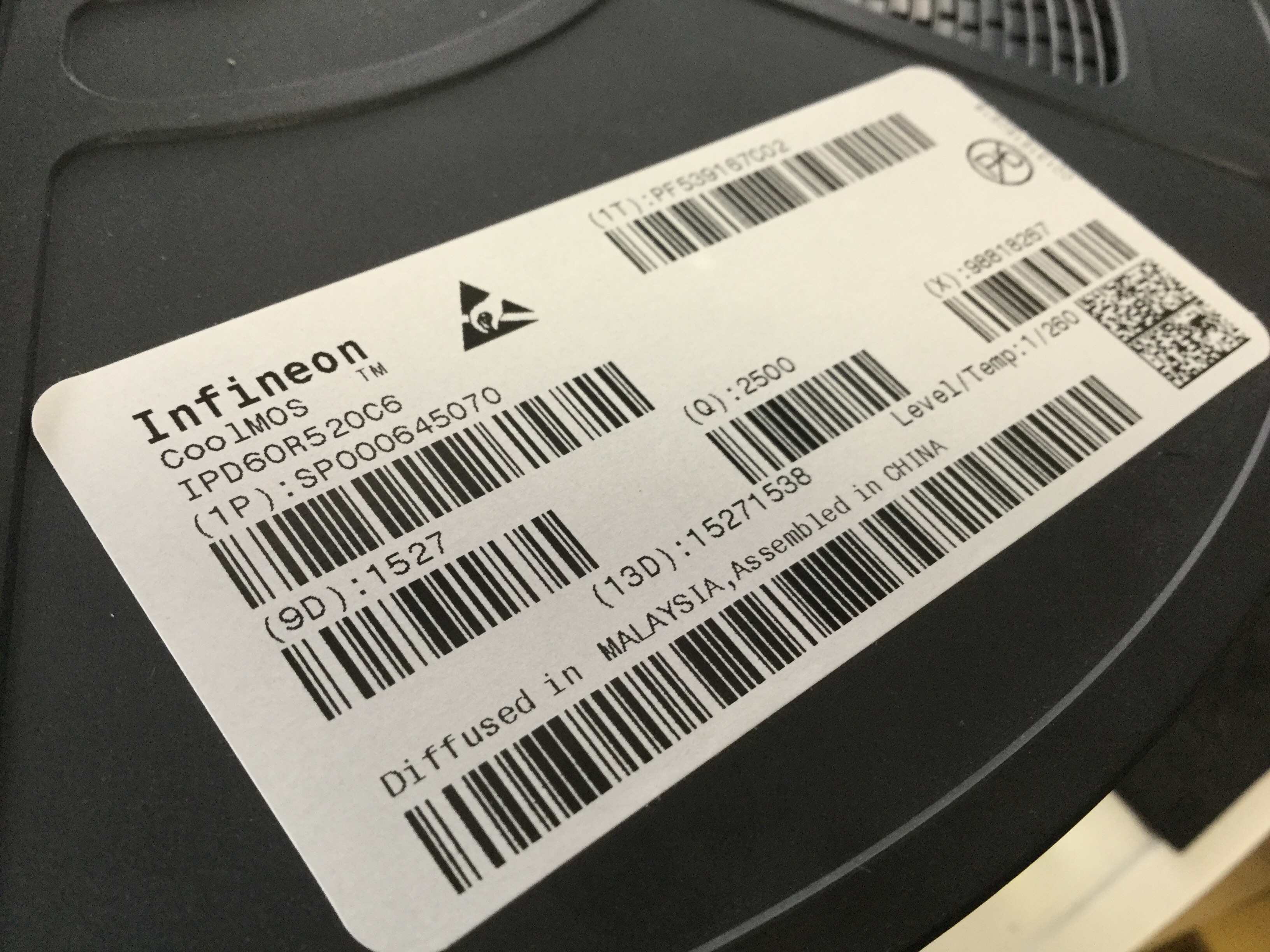

IPD60R520C6

Name: IPD60R520C6
Brand: INFINEON
SKU: 190089030-0000-0000-0000

IPD60R520C6 - INFINEON の商品詳細ページです。

２営業日以内に回答いたします

IPD60R520C6 の詳細情報

型番	IPD60R520C6
メーカー	INFINEON
Avalanche Energy Rating (Eas)	153 mJ
Case Connection	DRAIN
Configuration	SINGLE WITH BUILT-IN DIODE
DS Breakdown Voltage-Min	600 V
Drain Current-Max (Abs) (ID)	8.1 A
Drain Current-Max (ID)	8.1 A
Drain-source On Resistance-Max	0.52 ohm
FET Technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 Code	TO-252
JESD-30 Code	R-PSSO-G2
JESD-609 Code	e3
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Mode	ENHANCEMENT MODE
Operating Temperature-Max	150 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	66 W
Pulsed Drain Current-Max (IDM)	22 A
Qualification Status	Not Qualified
Sub Category	FET General Purpose Power
Surface Mount	YES
Terminal Finish	TIN
Terminal Form	GULL WING
Terminal Position	SINGLE
Transistor Application	SWITCHING
Transistor Element Material	SILICON
