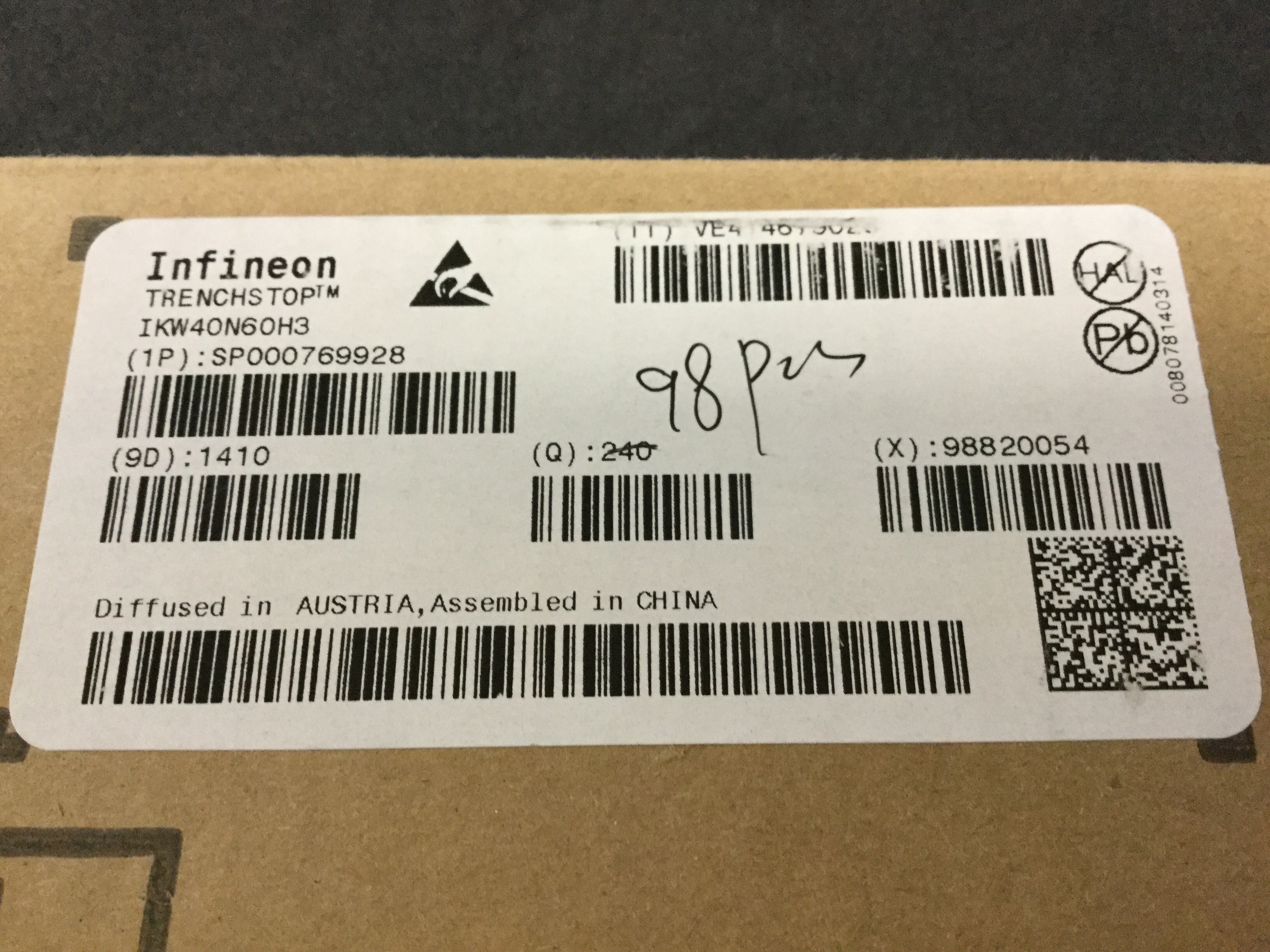

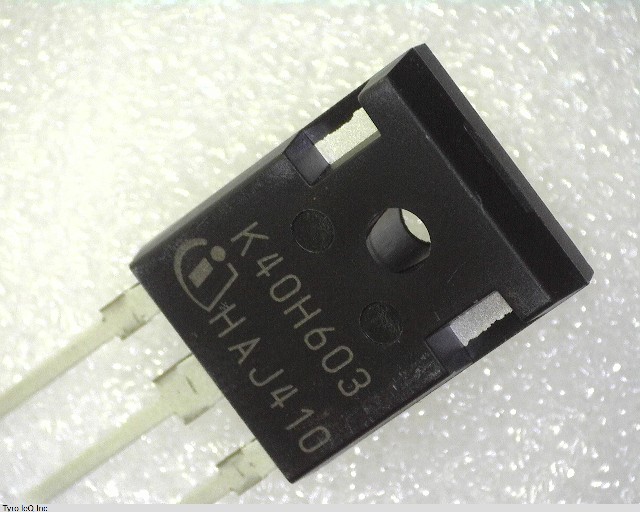

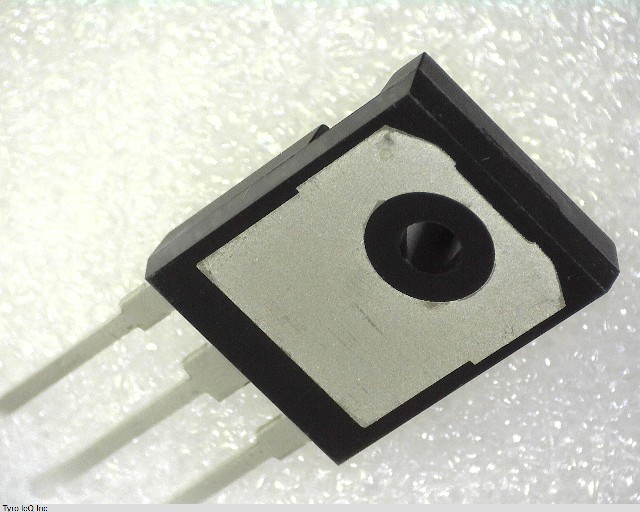

IKW40N60H3

Name: IKW40N60H3
Brand: INFINEON
SKU: 190107544-0000-0000-0000

IKW40N60H3 - INFINEON の商品詳細ページです。

２営業日以内に回答いたします

IKW40N60H3 の詳細情報

型番	IKW40N60H3
メーカー	INFINEON
Collector Current-Max (IC)	80 A
Collector-emitter Voltage-Max	600 V
Configuration	SINGLE WITH BUILT-IN DIODE
Gate-emitter Thr Voltage-Max	5.7 V
Gate-emitter Voltage-Max	20 V
JEDEC-95 Code	TO-247
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e3
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	175 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	306 W
Qualification Status	Not Qualified
Sub Category	Insulated Gate BIP Transistors
Surface Mount	NO
Terminal Finish	TIN
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Transistor Application	POWER CONTROL
Transistor Element Material	SILICON
Turn-off Time-Nom (toff)	249 ns
Turn-on Time-Nom (ton)	48 ns
