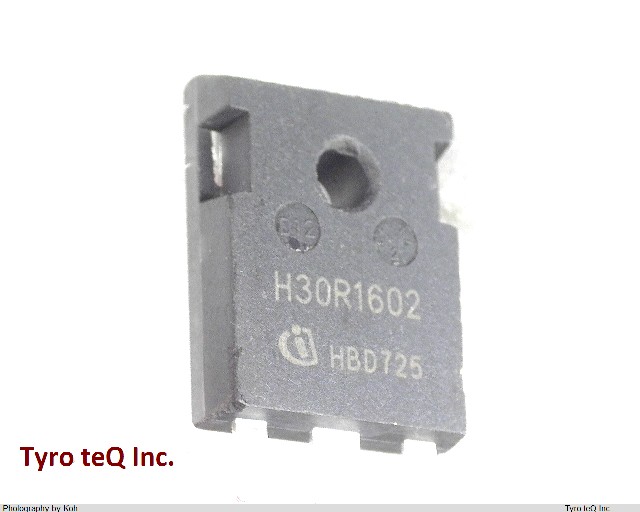

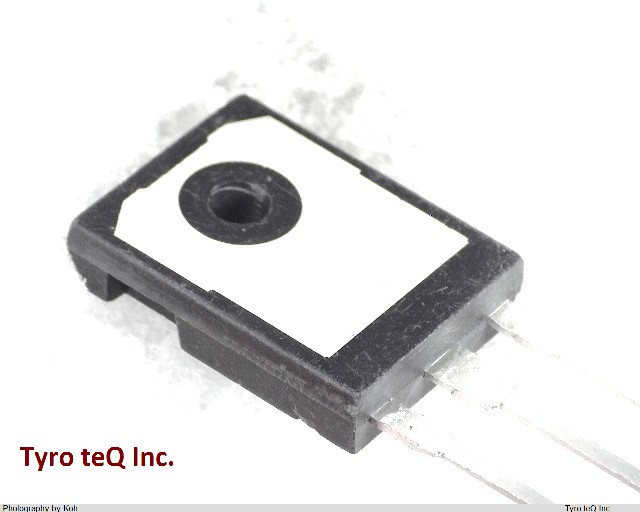

IHW30N160R2 データシート

Name: IHW30N160R2
Brand: INFINEON
SKU: 190081046-0000-0000-0000

IHW30N160R2 - INFINEON の商品詳細ページです。

２営業日以内に回答いたします

IHW30N160R2 の詳細情報

型番	IHW30N160R2
メーカー	INFINEON
データシート
Case Connection	COLLECTOR
Collector Current-Max (IC)	60 A
Collector-emitter Voltage-Max	1600 V
Configuration	SINGLE WITH BUILT-IN DIODE
Gate-emitter Thr Voltage-Max	6.4 V
Gate-emitter Voltage-Max	20 V
JEDEC-95 Code	TO-247AC
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e3
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	175 Cel
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	312 W
Qualification Status	Not Qualified
Sub Category	Insulated Gate BIP Transistors
Surface Mount	NO
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	POWER CONTROL
Transistor Element Material	SILICON
Turn-off Time-Nom (toff)	675 ns
