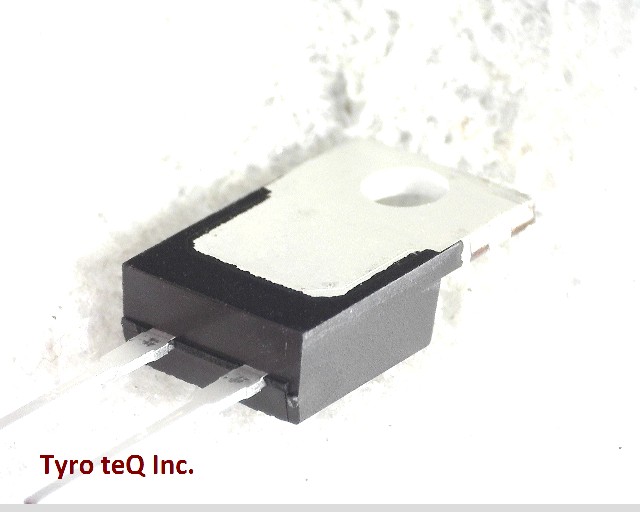

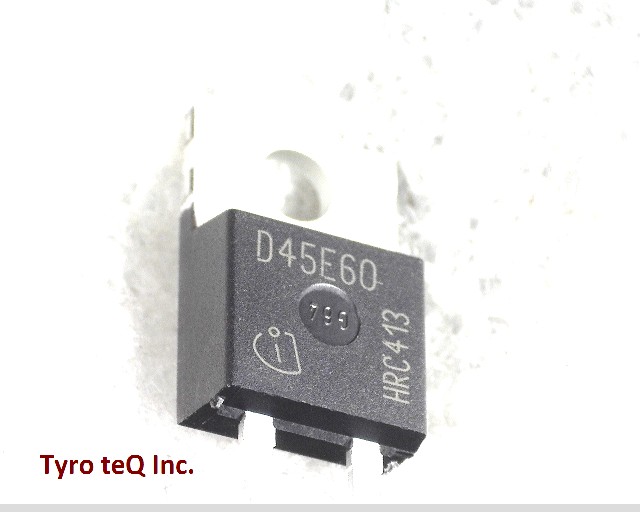

IDP45E60 データシート

Name: IDP45E60
Brand: INFINEON
SKU: 190059606-0000-0000-0000

IDP45E60 - INFINEON の商品詳細ページです。

２営業日以内に回答いたします

IDP45E60 の詳細情報

型番	IDP45E60
メーカー	INFINEON
データシート
Additional Feature	PD-CASE
Application	FAST SOFT RECOVERY
Case Connection	CATHODE
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	RECTIFIER DIODE
Forward Voltage-Max (VF)	2 V
JEDEC-95 Code	TO-220AC
JESD-30 Code	R-PSFM-T2
JESD-609 Code	e3
Non-rep Pk Forward Current-Max	162 A
Number of Elements	1
Number of Phases	1
Number of Terminals	2
Operating Temperature-Max	175 Cel
Operating Temperature-Min	-55 Cel
Output Current-Max	71 A
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Power Dissipation-Max	187 W
Qualification Status	Not Qualified
Rep Pk Reverse Voltage-Max	600 V
Reverse Current-Max	50 uA
Reverse Recovery Time-Max	0.14 us
Sub Category	Rectifier Diodes
Surface Mount	NO
Terminal Finish	TIN
Terminal Form	THROUGH-HOLE
Terminal Position	SINGLE
