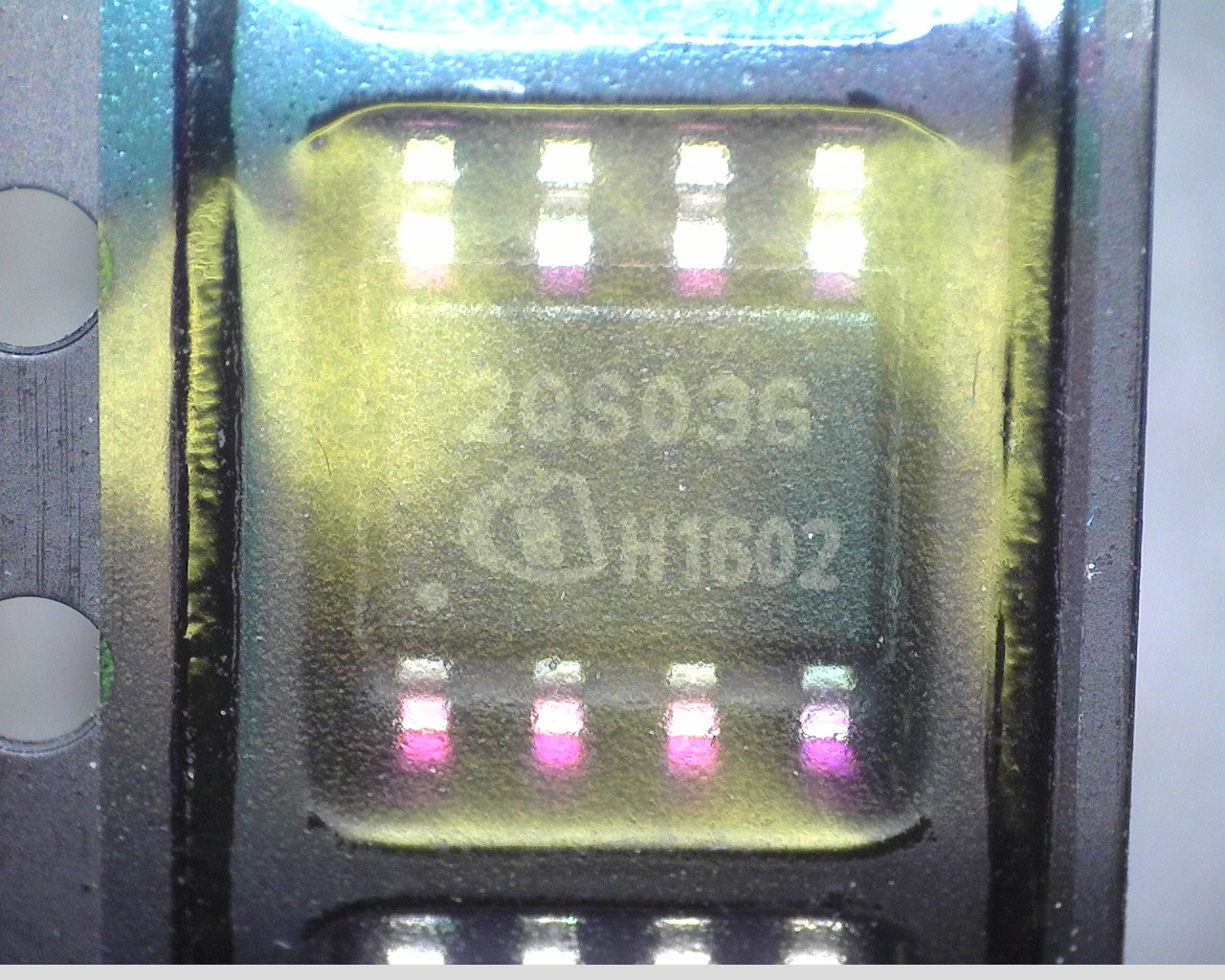

ICE2QS03G

Name: ICE2QS03G
Brand: INFINEON
SKU: 190108039-0000-0000-0000

ICE2QS03G - INFINEON の商品詳細ページです。

２営業日以内に回答いたします

ICE2QS03G の詳細情報

型番	ICE2QS03G
メーカー	INFINEON
Additional Feature	PWM CONTROL TECHNIQUE ALSO POSSIBLE
Analog IC - Other Type	SWITCHING CONTROLLER
Control Mode	CURRENT-MODE
Control Technique	RESONANT CONTROL
Input Voltage-Max	26 V
Input Voltage-Min	11.2 V
Input Voltage-Nom	18 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	5 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	8
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	SINGLE
Switching Frequency-Max	52 kHz
Technology	BICMOS
Terminal Finish	TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Width	4 mm
