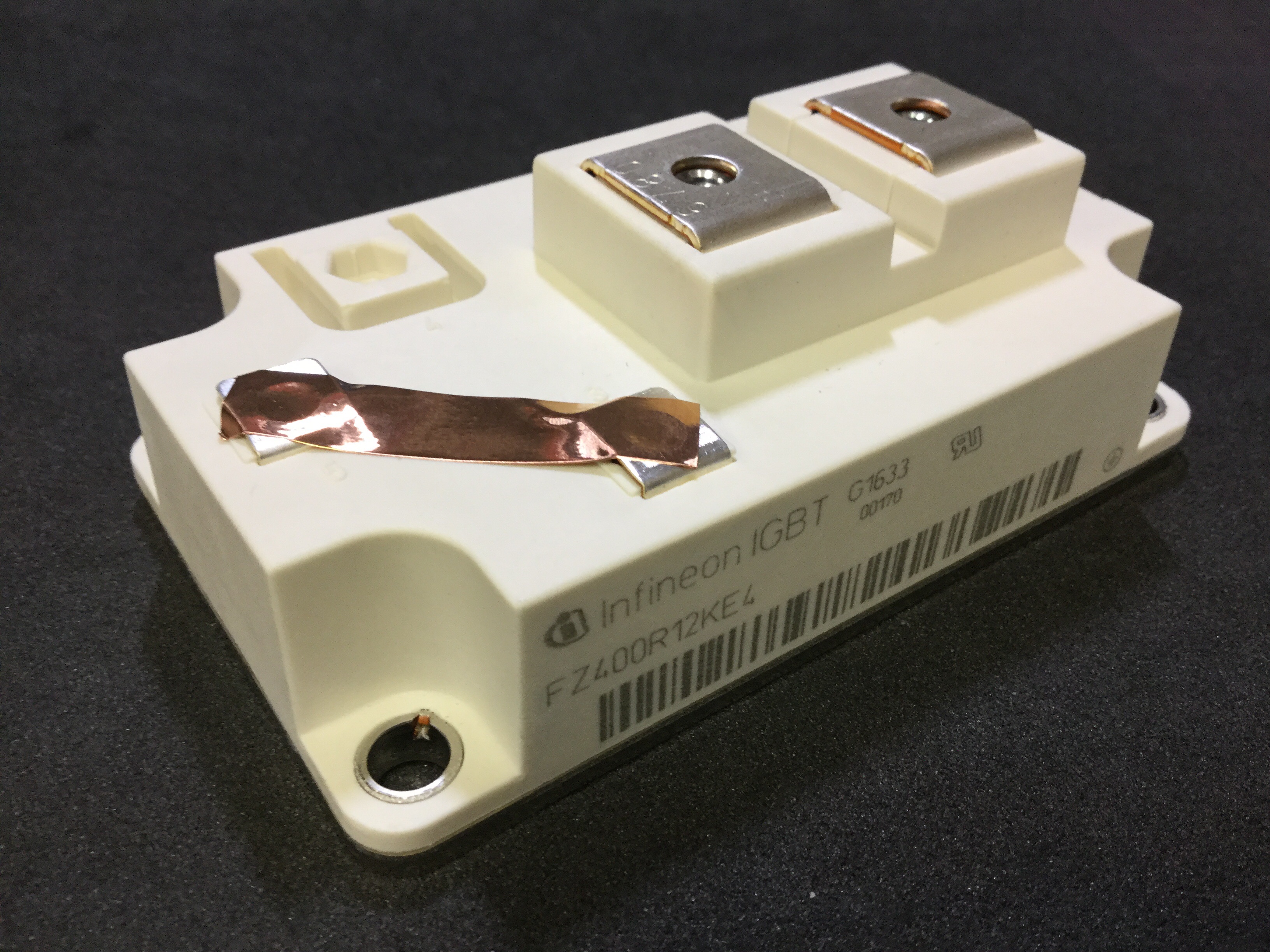

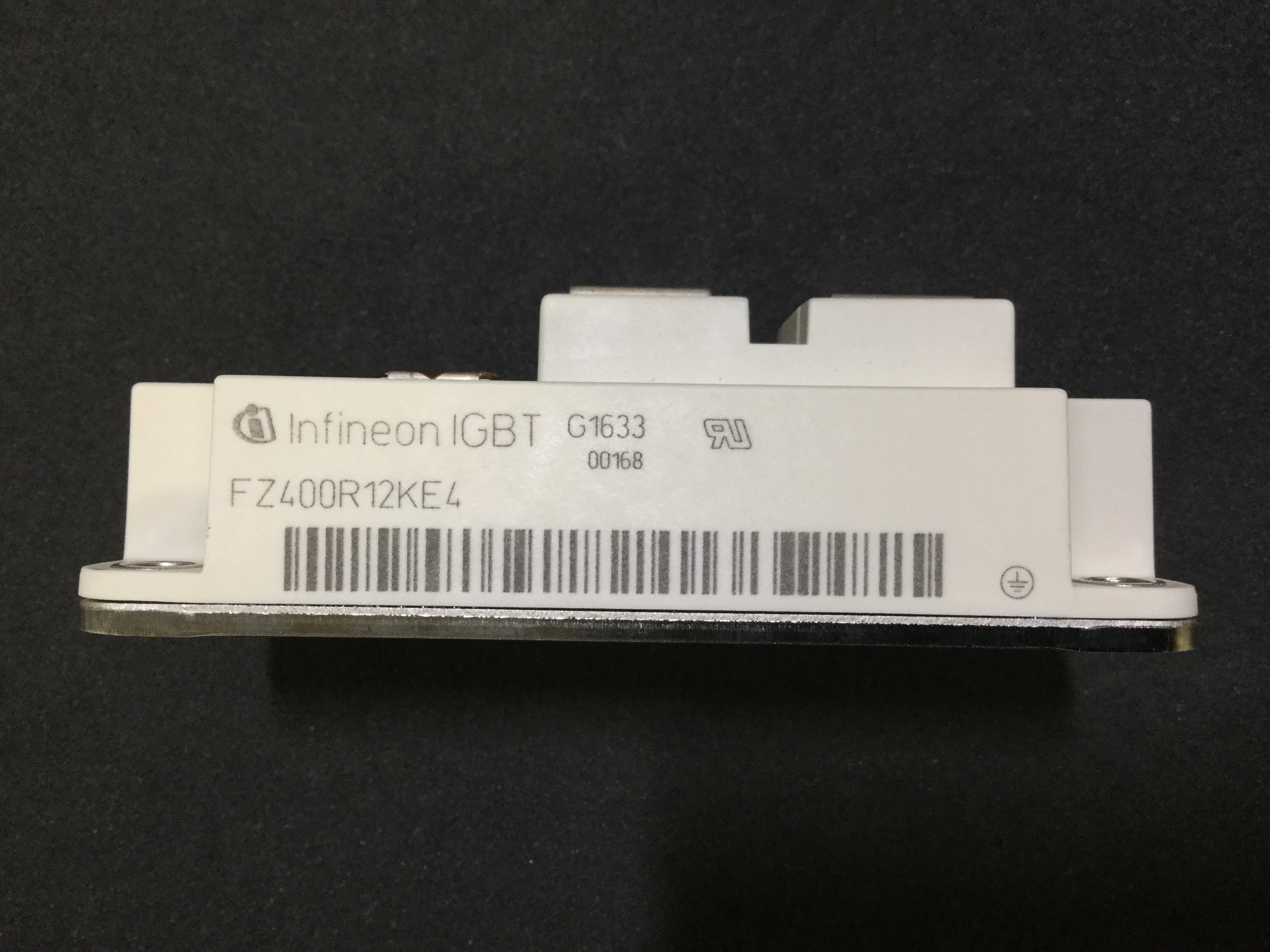

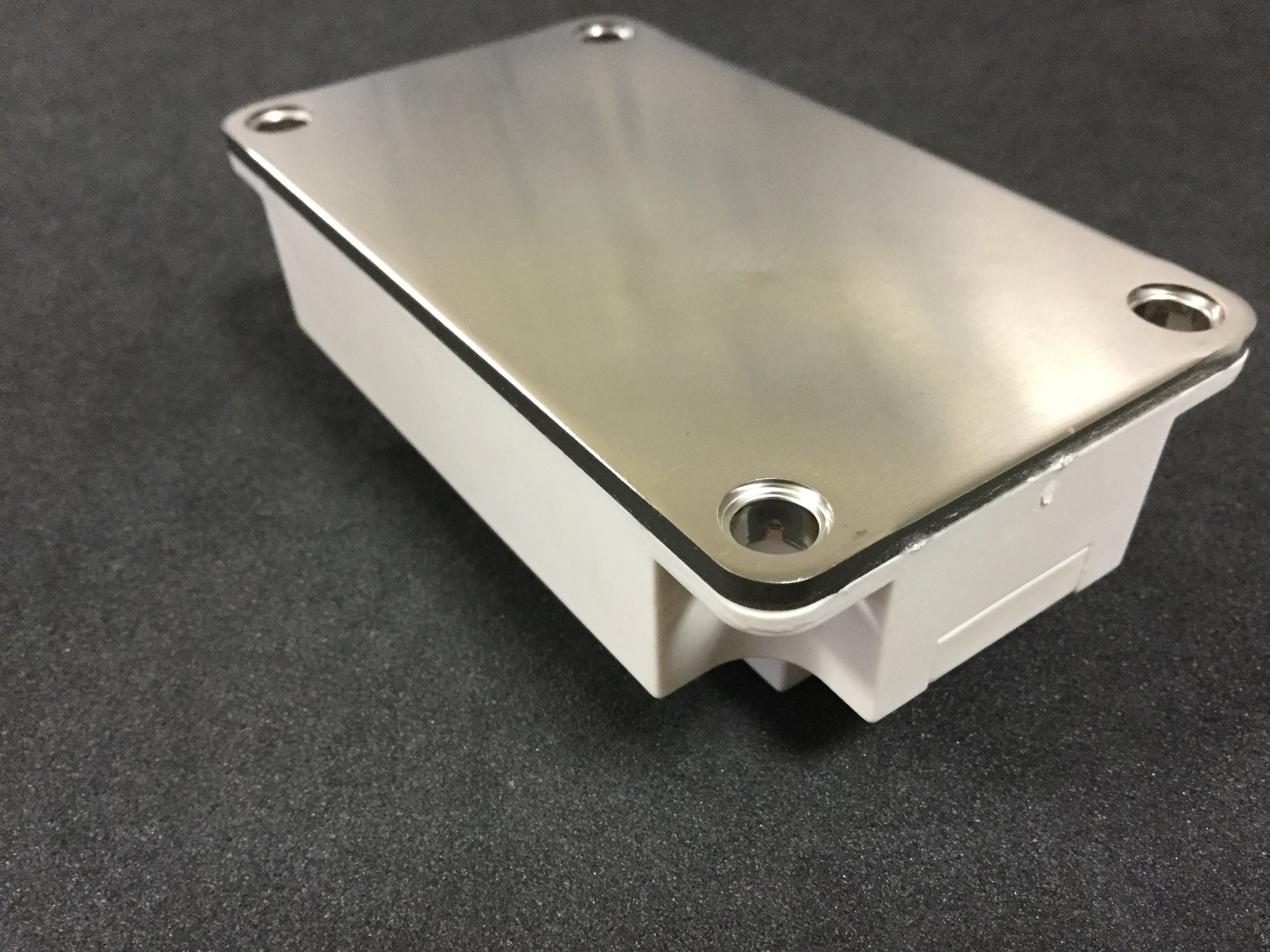

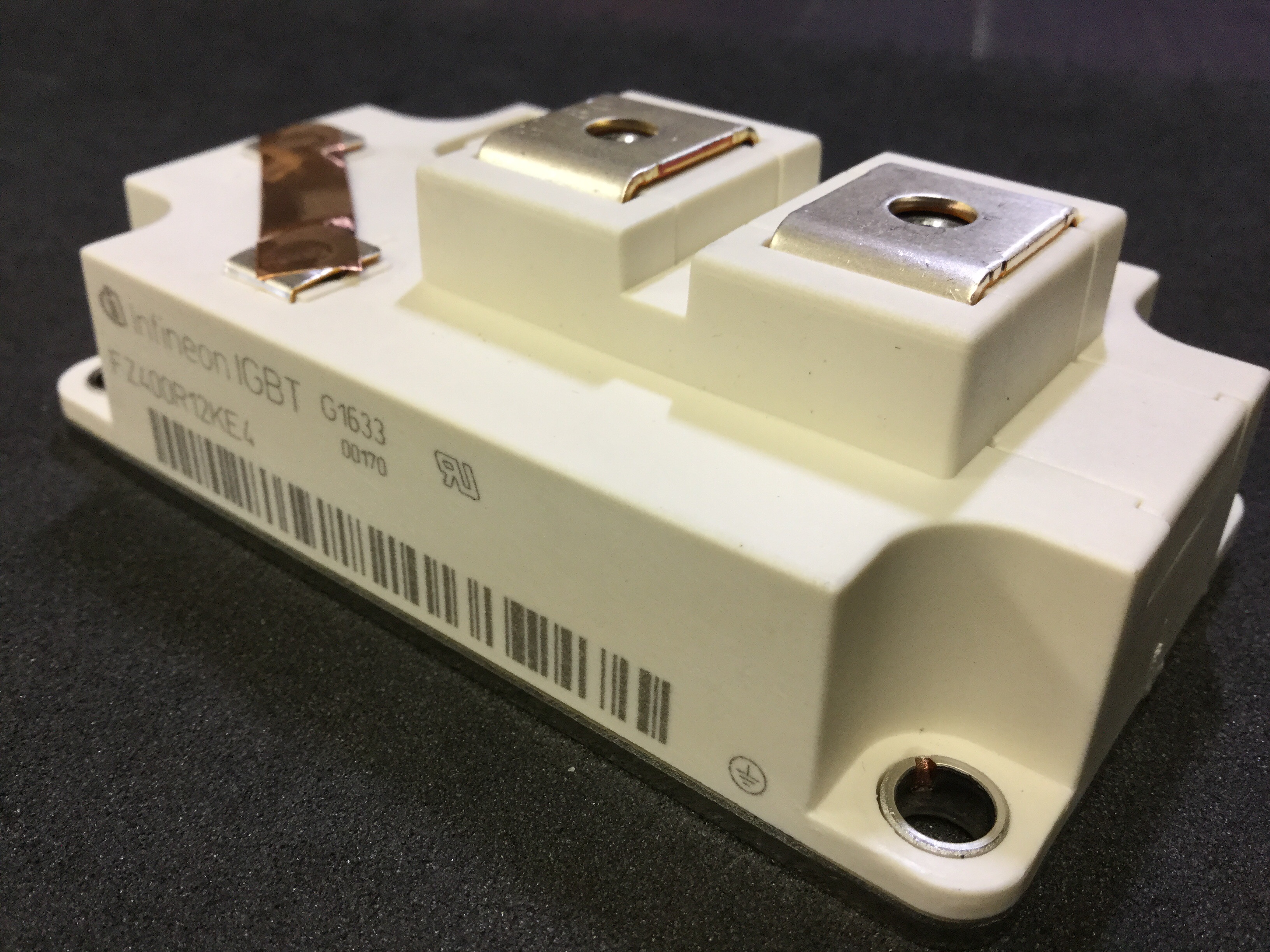

FZ400R12KE4

Name: FZ400R12KE4
Brand: INFINEON
SKU: 160107771-0000-0000-0000

FZ400R12KE4 - INFINEON の商品詳細ページです。

２営業日以内に回答いたします

FZ400R12KE4 の詳細情報

型番	FZ400R12KE4
メーカー	INFINEON
Case Connection	ISOLATED
Collector Current-Max (IC)	400 A
Collector-emitter Voltage-Max	1200 V
Configuration	SINGLE WITH BUILT-IN DIODE
Gate-emitter Voltage-Max	20 V
JESD-30 Code	R-XUFM-X3
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	3
Operating Temperature-Max	150 Cel
Package Body Material	UNSPECIFIED
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	260
Polarity/Channel Type	N-CHANNEL
Power Dissipation-Max (Abs)	2400 W
Qualification Status	Not Qualified
Sub Category	Insulated Gate BIP Transistors
Surface Mount	NO
Terminal Form	UNSPECIFIED
Terminal Position	UPPER
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	POWER CONTROL
Transistor Element Material	SILICON
Turn-off Time-Nom (toff)	810 ns
Turn-on Time-Nom (ton)	370 ns
VCEsat-Max	2.1 V
