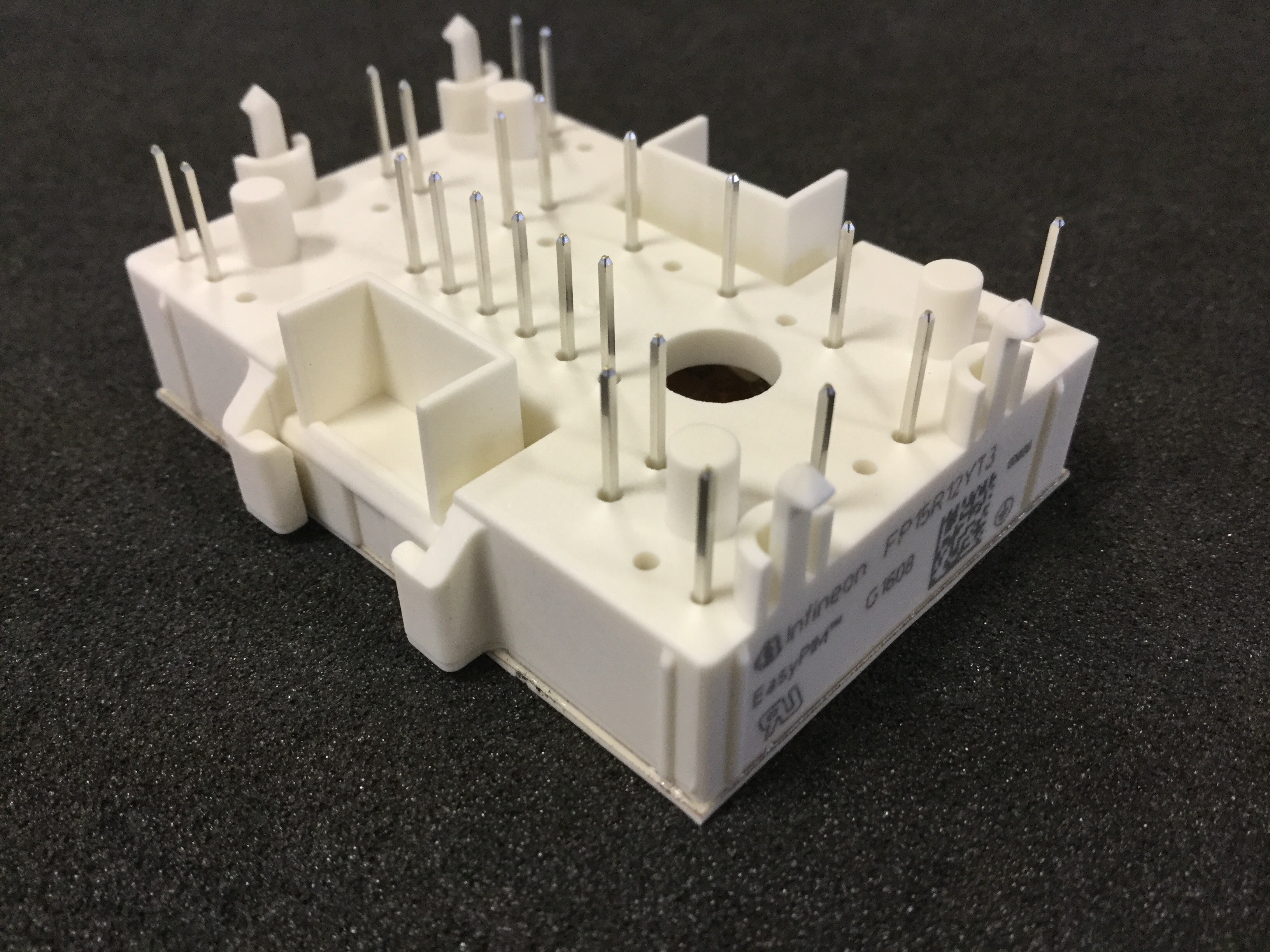

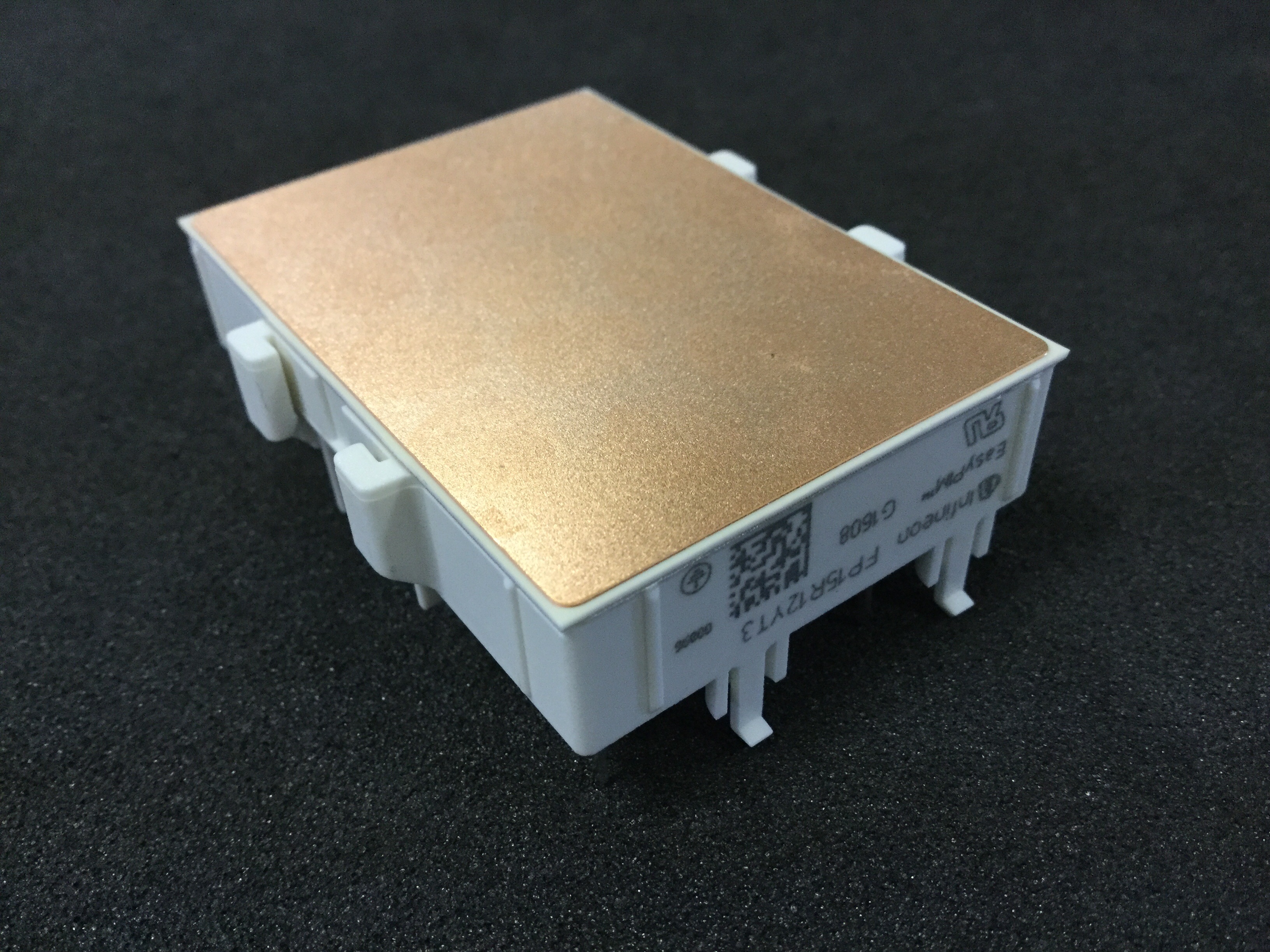

FP15R12YT3
1
-
- 個
２営業日以内に回答いたします
FP15R12YT3 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | FP15R12YT3 |
|---|---|
| メーカー | INFINEON |
| Case Connection | ISOLATED |
| Collector Current-Max (IC) | 25 A |
| Collector-emitter Voltage-Max | 1200 V |
| Configuration | COMPLEX |
| Gate-emitter Voltage-Max | 20 V |
| JESD-30 Code | R-XUFM-X23 |
| Number of Elements | 7 |
| Number of Terminals | 23 |
| Operating Temperature-Max | 150 Cel |
| Package Body Material | UNSPECIFIED |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT Meter |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation-Max (Abs) | 110 W |
| Qualification Status | Not Qualified |
| Sub Category | Insulated Gate BIP Transistors |
| Surface Mount | NO |
| Terminal Form | UNSPECIFIED |
| Terminal Position | UPPER |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Element Material | SILICON |
| Turn-off Time-Nom (toff) | 590 ns |
| Turn-on Time-Nom (ton) | 80 ns |
| VCEsat-Max | 2.15 V |
| 会社名称 | Infineon Technologies AG |
|---|---|
| 設立 | 1999 |
| 所在地 | Am Campeon 1-12 85579 Neubiberg Germany |
| URL | http://www.infineon.com/ |
