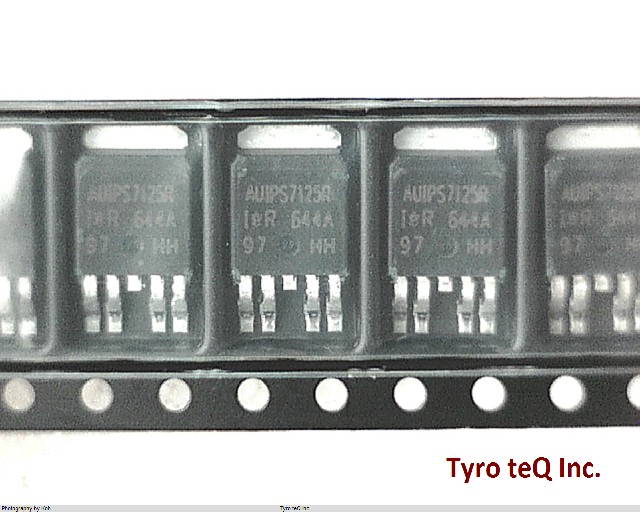

AUIPS7125RTRL

Name: AUIPS7125RTRL
Brand: INFINEON
SKU: 110269567-0000-0000-0000

AUIPS7125RTRL - INFINEON の商品詳細ページです。

２営業日以内に回答いたします

AUIPS7125RTRL の詳細情報

型番	AUIPS7125RTRL
メーカー	INFINEON
Built-in Protections	TRANSIENT; OVER CURRENT
Driver Number of Bits	1
Interface IC Type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code	R-PSSO-G4
JESD-609 Code	e3
Length	6.54 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	4
Output Current Flow Direction	SINK
Output Current-Max	3.8 A
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	TO-252
Package Equivalence Code	SMSIP5H,.37,50TB
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	28 V
Qualification Status	Not Qualified
Screening Level	AEC-Q100
Seated Height-Max	2.52 mm
Sub Category	Peripheral Drivers
Supply Voltage-Max	50 V
Supply Voltage-Min	6 V
Supply Voltage-Nom	28 V
Surface Mount	YES
Terminal Finish	TIN
Terminal Form	GULL WING
Terminal Pitch	1.14 mm
Terminal Position	SINGLE
Time@Peak Reflow Temperature-Max (s)	30
Turn-off Time	120 us
Turn-on Time	30 us
Width	6.095 mm
