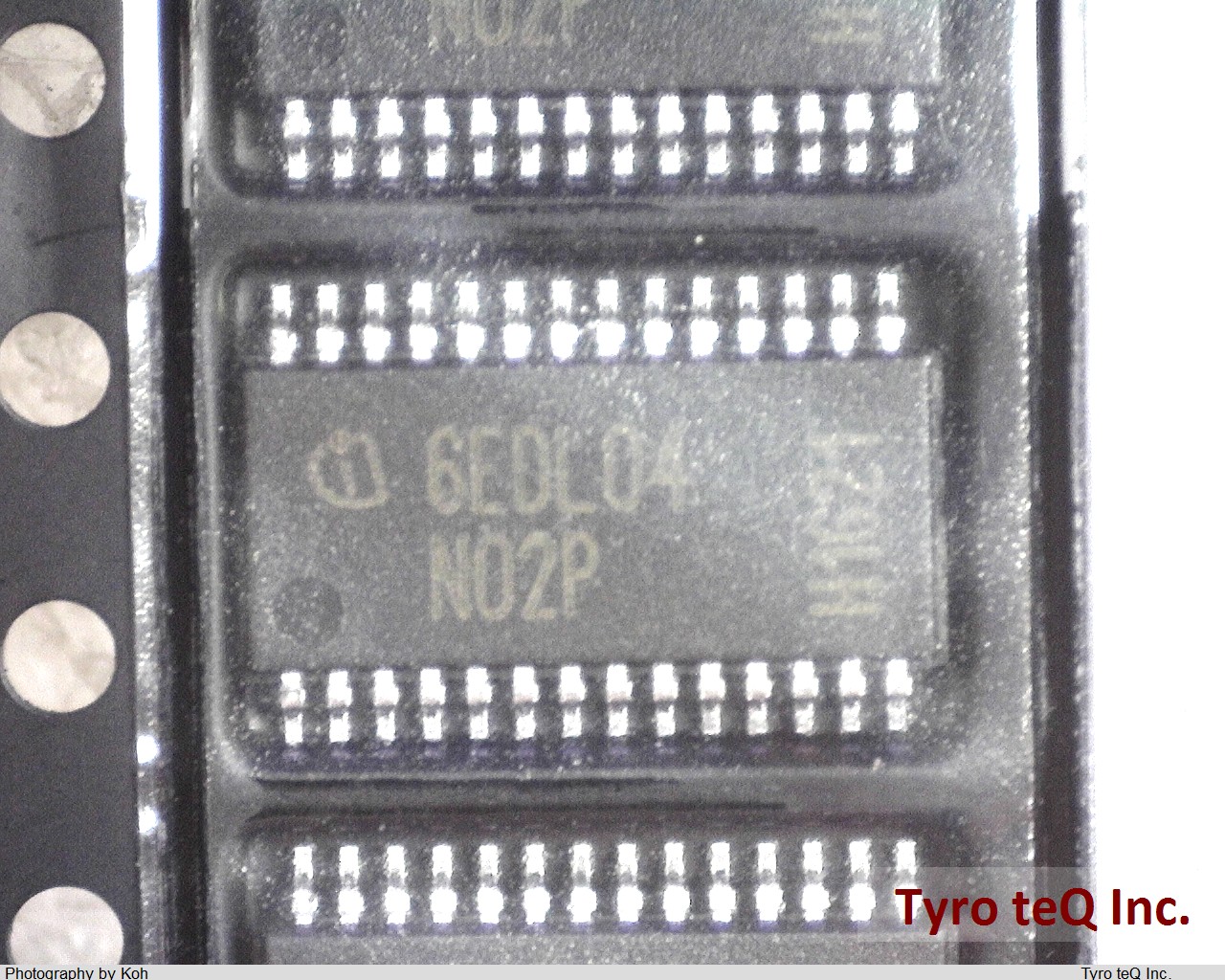

6EDL04N02PR

Name: 6EDL04N02PR
Brand: INFINEON
SKU: 70177910-0000-0000-0000

6EDL04N02PR - INFINEON の商品詳細ページです。

２営業日以内に回答いたします

6EDL04N02PR の詳細情報

型番	6EDL04N02PR
メーカー	INFINEON
High Side Driver	YES
Interface IC Type	HALF BRIDGE BASED MOSFET DRIVER
JESD-30 Code	R-PDSO-G28
JESD-609 Code	e4
Length	9.7 mm
Moisture Sensitivity Level	3
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	95 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP28,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	15 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Peripheral Drivers
Supply Voltage-Max	17.5 V
Supply Voltage-Min	13 V
Supply Voltage-Nom	15 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Turn-off Time	0.8 us
Turn-on Time	0.8 us
Width	4.4 mm
