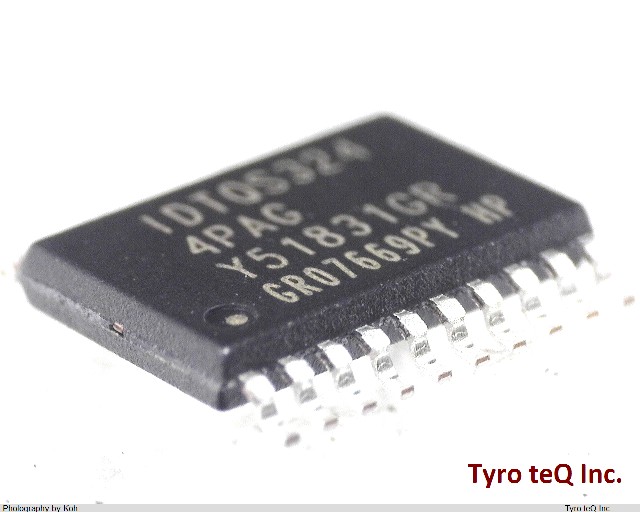

QS3244PAG

Name: QS3244PAG
Brand: IDT
SKU: 270015558-0000-0000-0000

QS3244PAG - IDT の商品詳細ページです。

２営業日以内に回答いたします

QS3244PAG の詳細情報

型番	QS3244PAG
メーカー	IDT
Family	3244
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e3
Length	6.5 mm
Logic IC Type	BUS DRIVER
Moisture Sensitivity Level	1
Number of Bits	4
Number of Functions	2
Number of Ports	2
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP20,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	260
Power Supplies	5 V
Propagation Delay (tpd)	0.25 ns
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Sub Category	Bus Driver/Transceivers
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	4.4 mm
