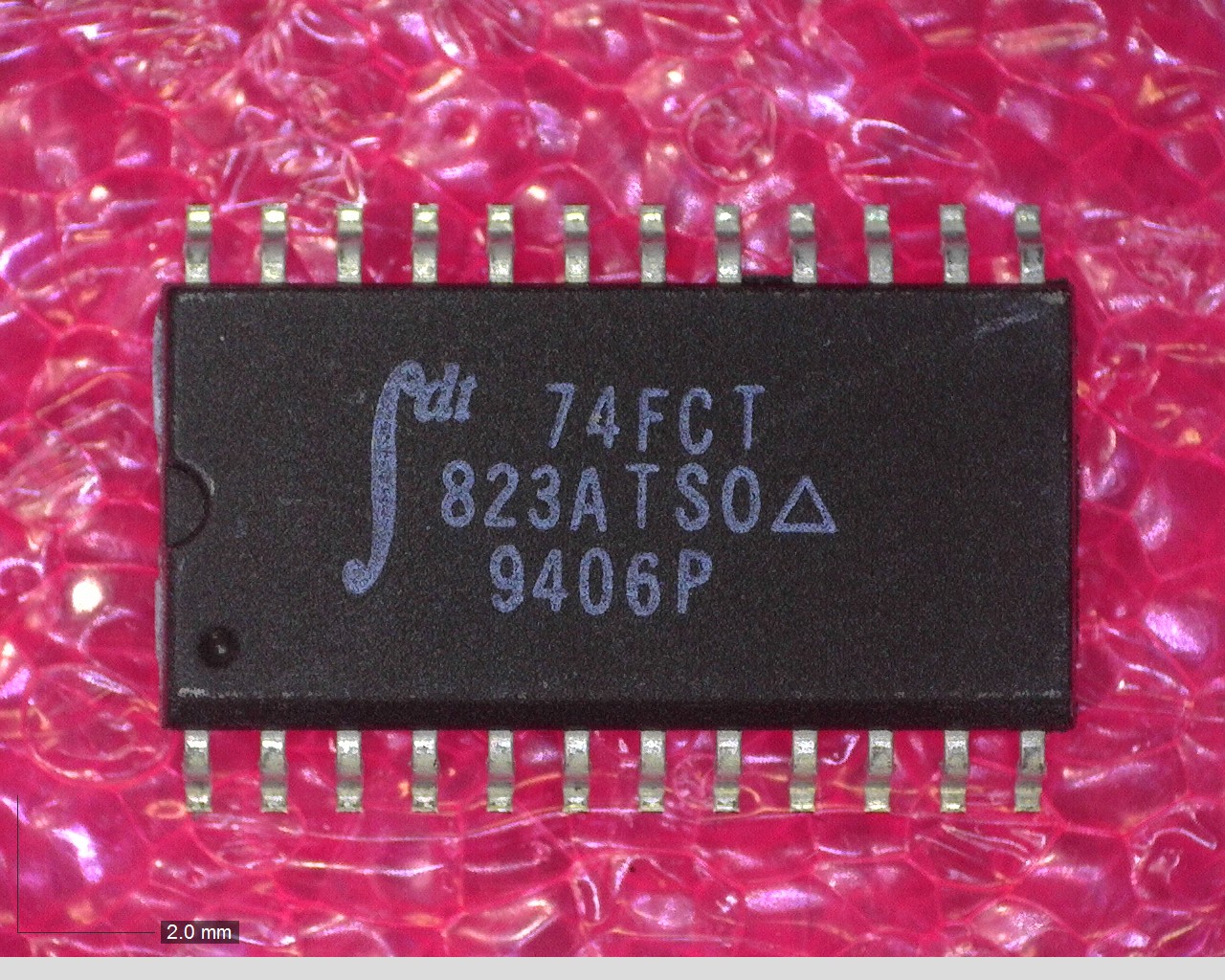

IDT74FCT823ATSO

Name: IDT74FCT823ATSO
Brand: IDT
SKU: 190000243-0000-0000-0000

IDT74FCT823ATSO - IDT の商品詳細ページです。

２営業日以内に回答いたします

IDT74FCT823ATSO の詳細情報

型番	IDT74FCT823ATSO
メーカー	IDT
Additional Feature	WITH CLEAR AND CLOCK ENABLE
Family	FCT
JESD-30 Code	R-PDSO-G24
JESD-609 Code	e0
Length	15.4178 mm
Load Capacitance (CL)	50 pF
Logic IC Type	BUS DRIVER
Max Frequency@Nom-Sup	71400000 Hz
Max I(ol)	0.048 Amp
Moisture Sensitivity Level	1
Number of Bits	9
Number of Functions	1
Number of Ports	2
Number of Terminals	24
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Characteristics	3-STATE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP24,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TR
Peak Reflow Temperature (Cel)	225
Power Supplies	5 V
Prop. Delay@Nom-Sup	10 ns
Propagation Delay (tpd)	20 ns
Qualification Status	Not Qualified
Seated Height-Max	2.6416 mm
Sub Category	FF/Latches
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Trigger Type	POSITIVE EDGE
Width	7.5 mm
