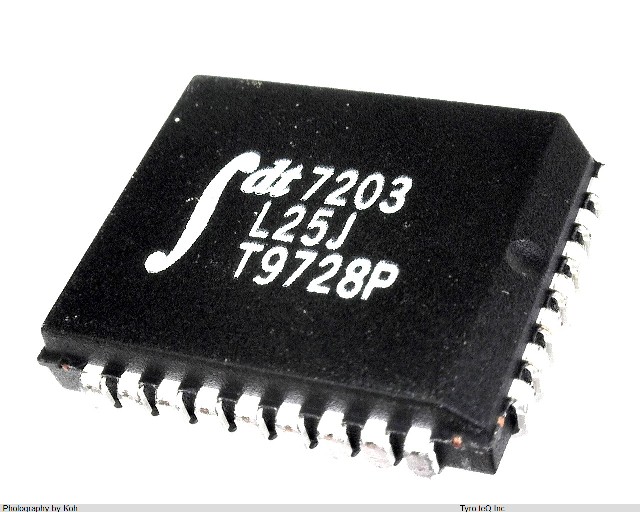

IDT7203L25J データシート

Name: IDT7203L25J
Brand: IDT
SKU: 190007069-0000-0000-0000

IDT7203L25J - IDT の商品詳細ページです。

２営業日以内に回答いたします

IDT7203L25J の詳細情報

型番	IDT7203L25J
メーカー	IDT
データシート
Access Time-Max	25 ns
Additional Feature	RETRANSMIT
Clock Frequency-Max (fCLK)	28.5 MHz
Cycle Time	35 ns
JESD-30 Code	R-PQCC-J32
JESD-609 Code	e0
Length	13.97 mm
Memory Density	18432 bit
Memory IC Type	OTHER FIFO
Memory Width	9
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	32
Number of Words	2048 words
Number of Words Code	2K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Organization	2KX9
Output Characteristics	3-STATE
Output Enable	NO
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC32,.5X.6
Package Shape	RECTANGULAR
Package Style	CHIP CARRIER Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	225
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	3.55 mm
Standby Current-Max	0.002 Amp
Sub Category	FIFOs
Supply Current-Max	0.12 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	11.43 mm
