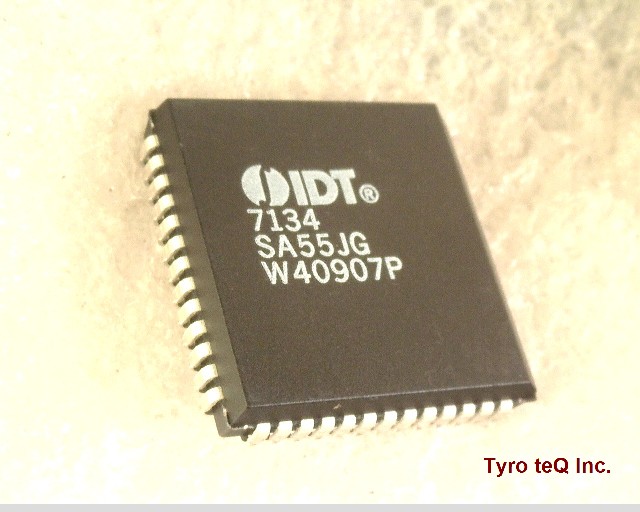

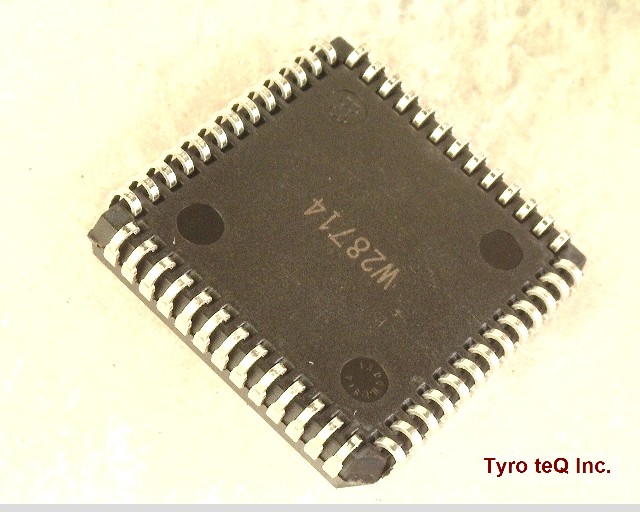

IDT7134SA55JG

Name: IDT7134SA55JG
Brand: IDT
SKU: 400067702-0000-0000-0000

IDT7134SA55JG - IDT の商品詳細ページです。

２営業日以内に回答いたします

IDT7134SA55JG の詳細情報

型番	IDT7134SA55JG
メーカー	IDT
Access Time-Max (ns)	55
Additional Feature	AUTOMATIC POWER-DOWN
DLA Qualification	Not Qualified
I/O Type	COMMON
J-STD-609 Code	e3
JESD-30 Code	S-PQCC-J52
Length (mm)	19.1262
Memory Density (bits)	32768
Memory IC Type	MULTI-PORT SRAM
Memory Organization	4KX8
Memory Width	8
Moisture Sensitivity Level	1
Number of Functions	1
Number of Ports	2
Number of Terminals	52
Number of Words (words)	4096
Number of Words Code	4K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max (Cel)	70
Operating Temperature-Min (Cel)	-55
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	QCCJ
Package Equivalence Code	LDCC52,.8SQ
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	5
Screening Level / Reference Standard	MIL-PRF-38535
Seated Height-Max (mm)	4.57
Standby Current-Max (A)	0.015
Standby Voltage-Min (V)	4.5
Sub Category	SRAMs
Supply Current-Max (mA)	240
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	4.5
Supply Voltage-Nom (V)	5
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn) - annealed
Terminal Form	J BEND
Terminal Pitch (mm)	1.27
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width (mm)	19.1262
