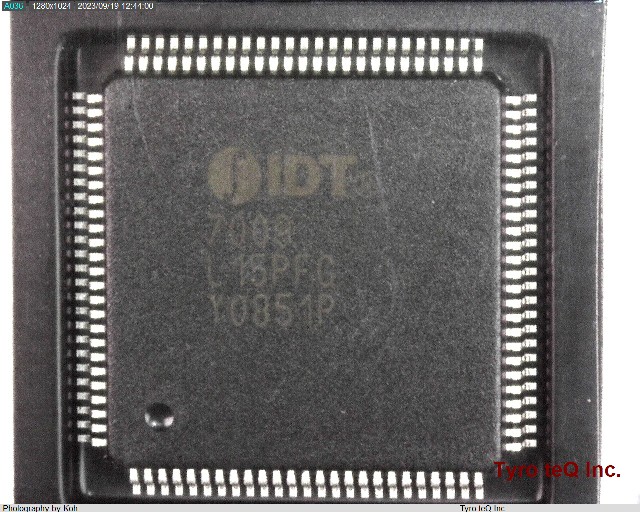

IDT7009-L15PFG
1
-
- 個
２営業日以内に回答いたします
IDT7009-L15PFG の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | IDT7009-L15PFG |
|---|---|
| メーカー | IDT |
| Access Time-Max (ns) | 15 |
| DLA Qualification | Not Qualified |
| I/O Type | COMMON |
| J-STD-609 Code | e3 |
| JESD-30 Code | S-PQFP-G100 |
| Length (mm) | 14 |
| Memory Density (bits) | 1048576 |
| Memory IC Type | MULTI-PORT SRAM |
| Memory Organization | 128KX8 |
| Memory Width | 8 |
| Moisture Sensitivity Level | 3 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 100 |
| Number of Words (words) | 131072 |
| Number of Words Code | 128K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max (Cel) | 70 |
| Operating Temperature-Min (Cel) | 0 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LFQFP |
| Package Equivalence Code | QFP100,.63SQ,20 |
| Package Shape | SQUARE |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH Meter |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 5 |
| Seated Height-Max (mm) | 1.6 |
| Standby Current-Max (A) | 0.003 |
| Standby Voltage-Min (V) | 4.5 |
| Sub Category | SRAMs |
| Supply Current-Max (mA) | 340 |
| Supply Voltage-Max (V) | 5.5 |
| Supply Voltage-Min (V) | 4.5 |
| Supply Voltage-Nom (V) | 5 |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Matte Tin (Sn) - annealed |
| Terminal Form | GULL WING |
| Terminal Pitch (mm) | 0.5 |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width (mm) | 14 |
| 会社名称 | Integrated Device Technology, Inc. |
|---|---|
| 設立 | 1980 |
| 所在地 | 6024 Silver Creek Valley Road, San Jose, CA 95138 USA |
| URL | http://www.idt.com/ |
