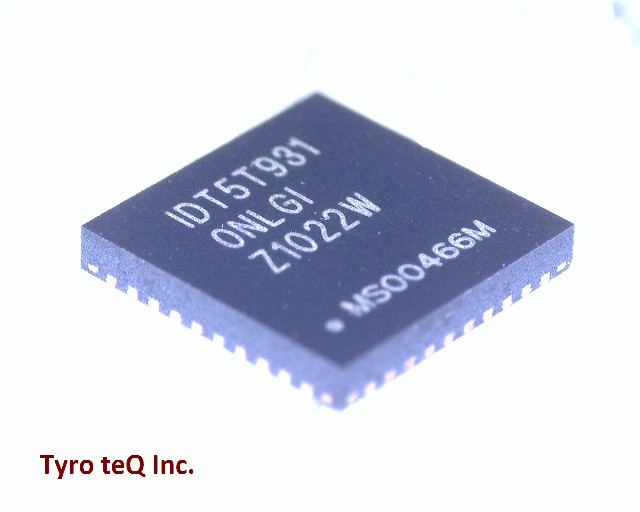

IDT5T9310NLGI

Name: IDT5T9310NLGI
Brand: IDT
SKU: 190020471-0000-0000-0000

IDT5T9310NLGI - IDT の商品詳細ページです。

２営業日以内に回答いたします

IDT5T9310NLGI の詳細情報

型番	IDT5T9310NLGI
メーカー	IDT
Family	5T
Input Conditioning	DIFFERENTIAL MUX
JESD-30 Code	S-PQCC-N40
JESD-609 Code	e3
Length	6 mm
Logic IC Type	LOW SKEW CLOCK DRIVER
Moisture Sensitivity Level	3
Number of Functions	1
Number of Inverted Outputs	0
Number of Terminals	40
Number of True Outputs	10
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Propagation Delay (tpd)	1.75 ns
Qualification Status	Not Qualified
Same Edge Skew-Max (tskwd)	0.025 ns
Seated Height-Max	1 mm
Supply Voltage-Max (Vsup)	2.7 V
Supply Voltage-Min (Vsup)	2.3 V
Supply Voltage-Nom (Vsup)	2.5 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Width	6 mm
fmax-Min	1000 MHz
