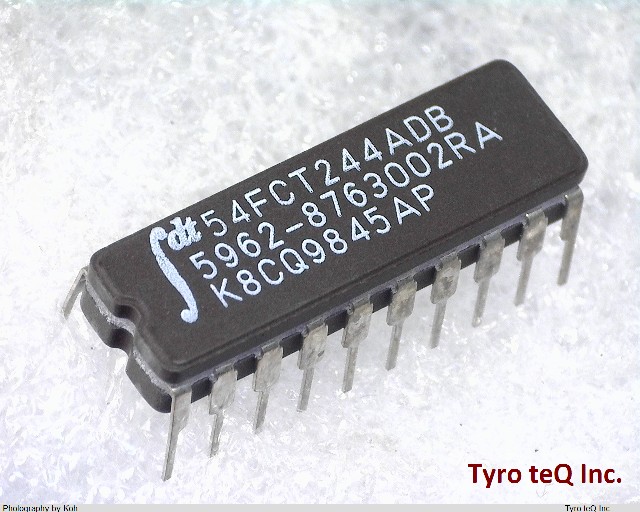

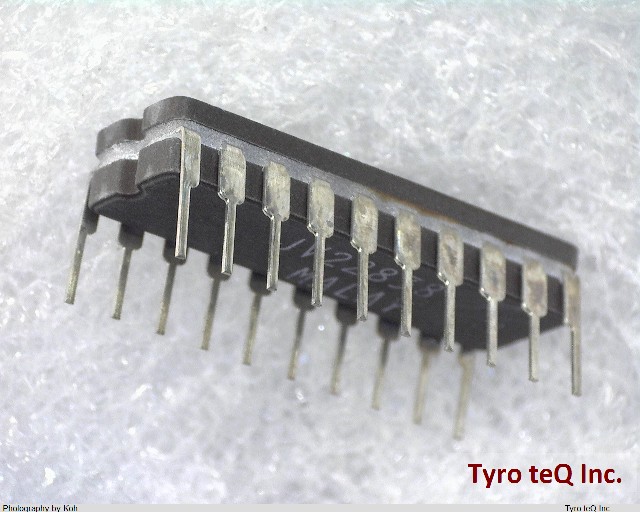

IDT54FCT244ADB
1
-
- 個
２営業日以内に回答いたします
IDT54FCT244ADB の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | IDT54FCT244ADB |
|---|---|
| メーカー | IDT |
| Additional Feature | IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V |
| Control Type | ENABLE LOW |
| Count Direction | BIDIRECTIONAL |
| Family | FCT |
| JESD-30 Code | R-GDIP-T20 |
| JESD-609 Code | e0 |
| Length | 25.3365 mm |
| Load Capacitance (CL) | 50 pF |
| Logic IC Type | BUS DRIVER |
| Max I(ol) | 0.048 Amp |
| Number of Bits | 4 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Max | 125 Cel |
| Operating Temperature-Min | -55 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power Supplies | 5 V |
| Power Supply Current-Max (ICC) | 14.5 mA |
| Prop. Delay@Nom-Sup | 5.1 ns |
| Propagation Delay (tpd) | 5.1 ns |
| Qualification Status | Not Qualified |
| Screening Level | MIL-STD-883 Class B |
| Seated Height-Max | 5.08 mm |
| Sub Category | Bus Driver/Transceivers |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | MILITARY |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |
| 会社名称 | Integrated Device Technology, Inc. |
|---|---|
| 設立 | 1980 |
| 所在地 | 6024 Silver Creek Valley Road, San Jose, CA 95138 USA |
| URL | http://www.idt.com/ |
