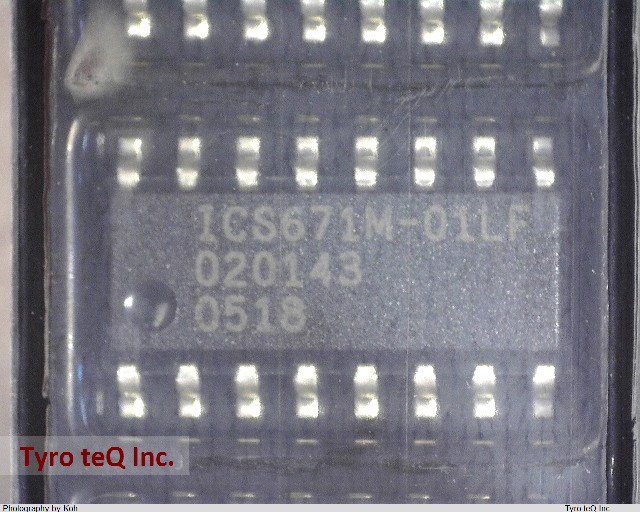

ICS671M-01LF

Name: ICS671M-01LF
Brand: IDT
SKU: 190017882-0000-0000-0000

ICS671M-01LF - IDT の商品詳細ページです。

２営業日以内に回答いたします

ICS671M-01LF の詳細情報

型番	ICS671M-01LF
メーカー	IDT
Family	671
Input Conditioning	STANDARD
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e3
Length	9.9 mm
Logic IC Type	PLL BASED CLOCK DRIVER
Max I(ol)	0.025 Amp
Moisture Sensitivity Level	3
Number of Functions	1
Number of Inverted Outputs	0
Number of Terminals	16
Number of True Outputs	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3.3 V
Qualification Status	Not Qualified
Same Edge Skew-Max (tskwd)	0.25 ns
Seated Height-Max	1.75 mm
Sub Category	Clock Drivers
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	3.13 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
fmax-Min	160 MHz
