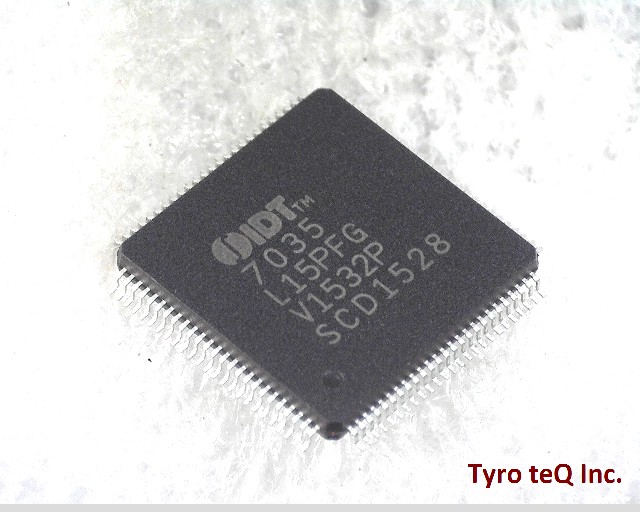

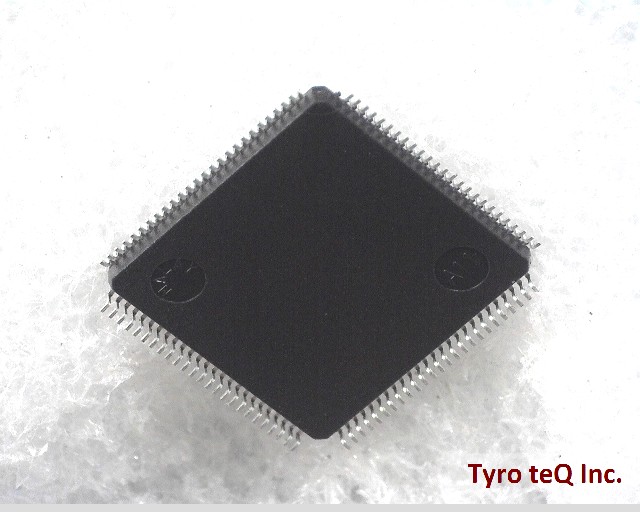

7035L15PFG
1
-
- 個
２営業日以内に回答いたします
7035L15PFG の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 7035L15PFG |
|---|---|
| メーカー | IDT |
| Access Time-Max | 15 ns |
| I/O Type | COMMON |
| JESD-30 Code | S-PQFP-G100 |
| JESD-609 Code | e3 |
| Length | 14 mm |
| Memory Density | 147456 bit |
| Memory IC Type | DUAL-PORT SRAM |
| Memory Width | 18 |
| Moisture Sensitivity Level | 3 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 100 |
| Number of Words | 8192 words |
| Number of Words Code | 8K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Organization | 8KX18 |
| Output Characteristics | 3-STATE |
| Output Enable | YES |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LFQFP |
| Package Equivalence Code | QFP100,.63SQ,20 |
| Package Shape | SQUARE |
| Package Style | FLATPACK Meter |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | 260 |
| Seated Height-Max | 1.6 mm |
| Standby Current-Max | 0.0015 Amp |
| Standby Voltage-Min | 2 V |
| Supply Current-Max | 0.26 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5 mm |
| Terminal Position | DUAL |
| Width | 14 mm |
| 会社名称 | Integrated Device Technology, Inc. |
|---|---|
| 設立 | 1980 |
| 所在地 | 6024 Silver Creek Valley Road, San Jose, CA 95138 USA |
| URL | http://www.idt.com/ |
7035L15PFGのレビュー
7035L15PFG のご注文について
050-3612-7934
045-263-9989
7035L15PFG - IDT の商品詳細ページです。
