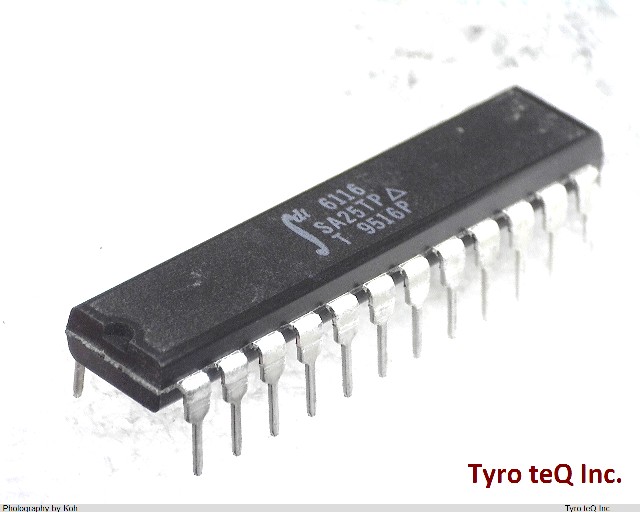

6116SA25TP
1
-
- 個
２営業日以内に回答いたします
6116SA25TP の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | 6116SA25TP |
|---|---|
| メーカー | IDT |
| Access Time-Max | 25 ns |
| I/O Type | COMMON |
| JESD-30 Code | R-PDIP-T24 |
| JESD-609 Code | e0 |
| Length | 31.75 mm |
| Memory Density | 16384 bit |
| Memory IC Type | STANDARD SRAM |
| Memory Width | 8 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 24 |
| Number of Words | 2048 words |
| Number of Words Code | 2K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | -55 Cel |
| Organization | 2KX8 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP24,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | 5 V |
| Qualification Status | Not Qualified |
| Screening Level | MIL-STD-883 Class B |
| Seated Height-Max | 4.191 mm |
| Standby Current-Max | 0.002 Amp |
| Standby Voltage-Min | 4.5 V |
| Sub Category | SRAMs |
| Supply Current-Max | 0.12 mA |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |
| 会社名称 | Integrated Device Technology, Inc. |
|---|---|
| 設立 | 1980 |
| 所在地 | 6024 Silver Creek Valley Road, San Jose, CA 95138 USA |
| URL | http://www.idt.com/ |
