GM76C256CLLFW-70 Hyundai

GM76C256CLLFW-70 - HYUNDAI の商品詳細ページです。

1

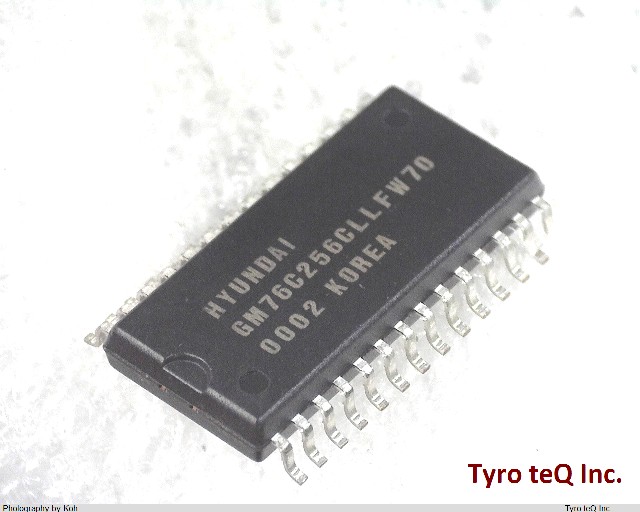

GM76C256CLLFW-70
  • GM76C256CLLFW-70
  • GM76C256CLLFW-70
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

GM76C256CLLFW-70 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番GM76C256CLLFW-70
メーカーHYUNDAI
Access Time-Max 70 ns
Additional Feature ALSO OPERATES WITH 5V SUPPLY
I/O Type COMMON
JESD-30 Code R-PDSO-G28
JESD-609 Code e0
Length 18.3895 mm
Memory Density 262144 bit
Memory IC Type STANDARD SRAM
Memory Width 8
Number of Functions 1
Number of Terminals 28
Number of Words 32768 words
Number of Words Code 32K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 70 Cel
Operating Temperature-Min -25 Cel
Organization 32KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP28,.5
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Parallel/Serial PARALLEL
Power Supplies 5 V
Qualification Status Not Qualified
Seated Height-Max 2.794 mm
Standby Current-Max 7.0E-6 Amp
Standby Voltage-Min 2 V
Sub Category SRAMs
Supply Current-Max 0.07 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Nom (Vsup) 3 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Width 8.6 mm
会社名称HYNIX INC.
URLhttp://www.hynix.com/
