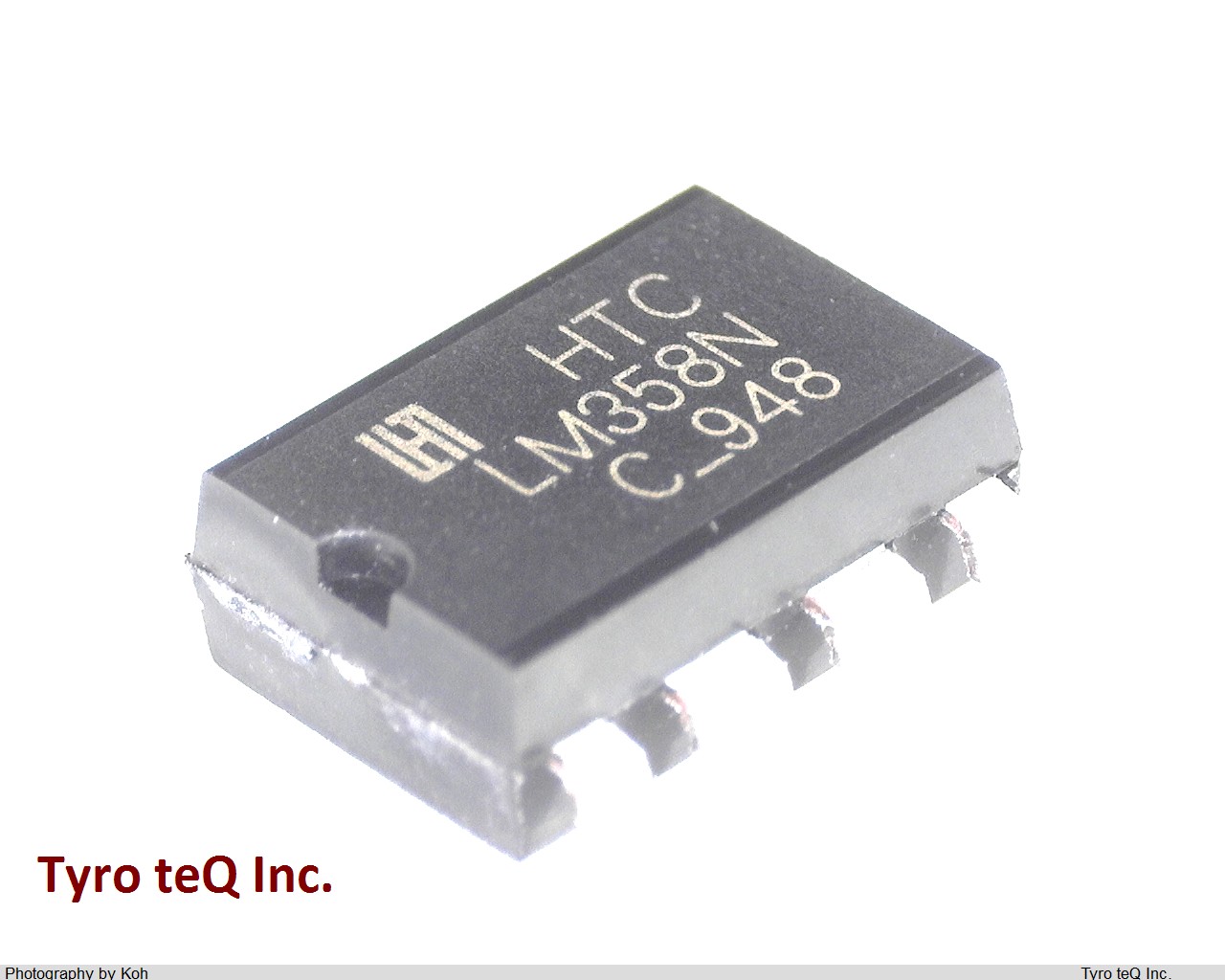

LM358N
1
71時間1分後
以内に見積もり依頼を頂ければ、
04月23日(火) 9:00
までに見積もり回答いたします。
- 個
LM358N の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | LM358N |
|---|---|
| メーカー | HTC KOREA |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | -0.5 uA |
| Bias Current-Max (IIB) @25C | 0.1 uA |
| Common-mode Reject Ratio-Min | 65 dB |
| Common-mode Reject Ratio-Nom | 70 dB |
| Frequency Compensation | NO |
| Input Offset Voltage-Max | 7000 uV |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e0 |
| Length | 9.2 mm |
| Low-Bias | NO |
| Low-Offset | NO |
| Micropower | NO |
| Moisture Sensitivity Level | 1 |
| Neg Supply Voltage Limit-Max | -18 V |
| Neg Supply Voltage-Nom (Vsup) | 0 V |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | -40 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Packing Method | RAIL |
| Peak Reflow Temperature (Cel) | 260 |
| Power | NO |
| Power Supplies | +-1.5/+-15/3/30 V |
| Programmable Power | NO |
| Qualification Status | Not Qualified |
| Seated Height-Max | 2 mm |
| Slew Rate-Nom | 0.1 V/us |
| Sub Category | Operational Amplifier |
| Supply Current-Max | 1.2 mA |
| Supply Voltage Limit-Max | 16 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | MATTE TIN |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Unity Gain BW-Nom | 400 kHz |
| Voltage Gain-Min | 15000 |
| Wideband | NO |
| Width | 5.3 mm |
