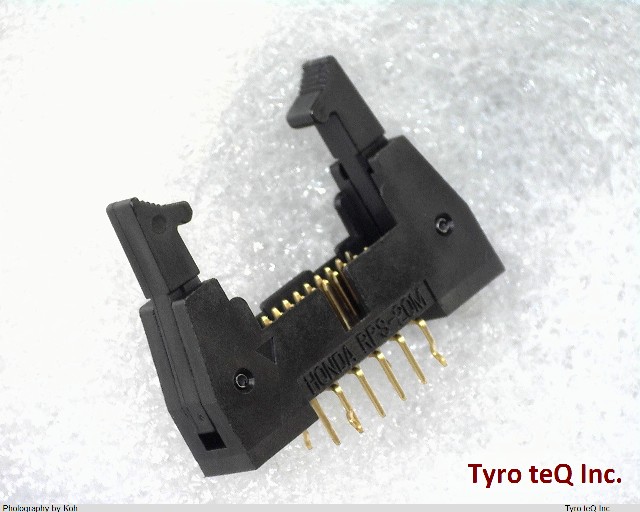

RPS-20RM+

Name: RPS-20RM+
Brand: HONDA
SKU: 280392126-0000-0000-0000

RPS-20RM+ - HONDA の商品詳細ページです。

２営業日以内に回答いたします

RPS-20RM+ の詳細情報

型番	RPS-20RM+
メーカー	HONDA
Additional Feature	LACTHED
Body Breadth	0.283 inch
Body Depth	0.559 inch
Body Length	1.197 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1100VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Mating Contact Pitch	0.05 inch
Mating Contact Row Spacing	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LATCH
Mounting Option 2	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	4
Number of Rows Loaded	2
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	1.905 mm
Plating Thickness	8u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.134 inch
Terminal Pitch	1.27 mm
Termination Type	SOLDER
Total Number of Contacts	20
UL Flammability Code	94V-0
