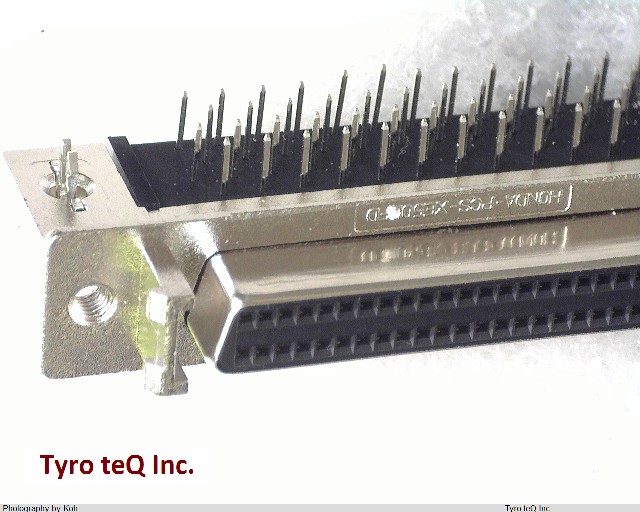

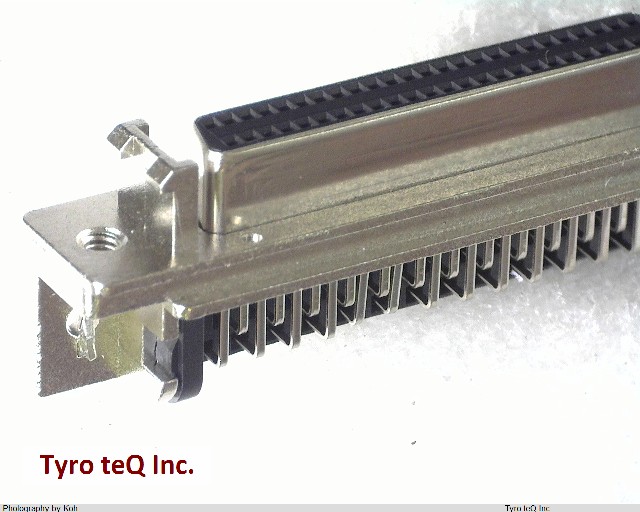

PCS-XE50LFD+

Name: PCS-XE50LFD+
Brand: HONDA
SKU: 260234052-0000-0000-0000

PCS-XE50LFD+ - HONDA の商品詳細ページです。

２営業日以内に回答いたします

PCS-XE50LFD+ の詳細情報

型番	PCS-XE50LFD+
メーカー	HONDA
Additional Feature	STAGGERED CONFIGURATION
Board Mounting Option	HOLE .086-.098
Body Breadth	0.413 inch
Body Depth	0.453 inch
Body Length	2.067 inch
Body/Shell Style	PLUG
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	AU ON NI
Contact Finish - Termination	Gold (Au)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	35 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e0
MIL Conformance	NO
Mating Contact Pitch	0.05 inch
Mating Contact Row Spacing	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	#2-56
Mounting Option 2	SCREW
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number of Rows Loaded	2
Option	GENERAL PURPOSE
Plating Thickness	8u inch
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Sub Category	Other Rectangular Connectors
Termination Type	SOLDER
Total Number of Contacts	50
UL Flammability Code	94V-0
