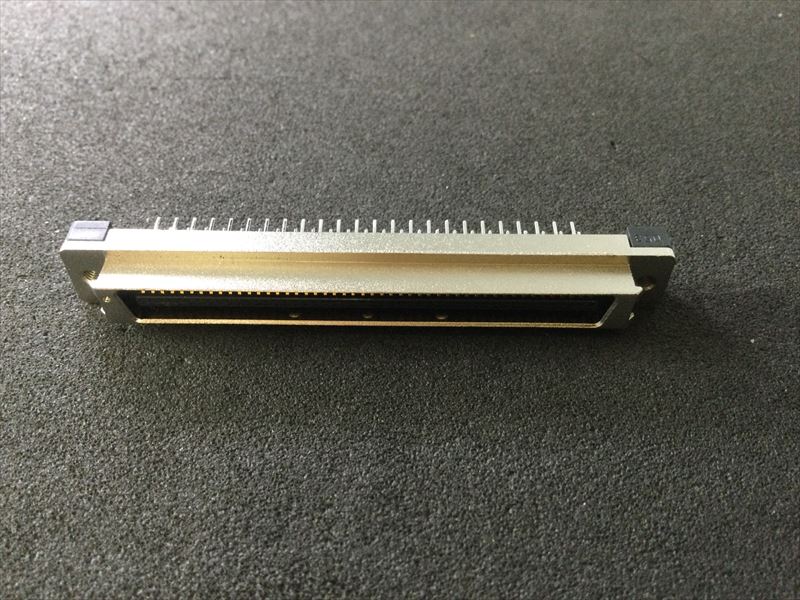

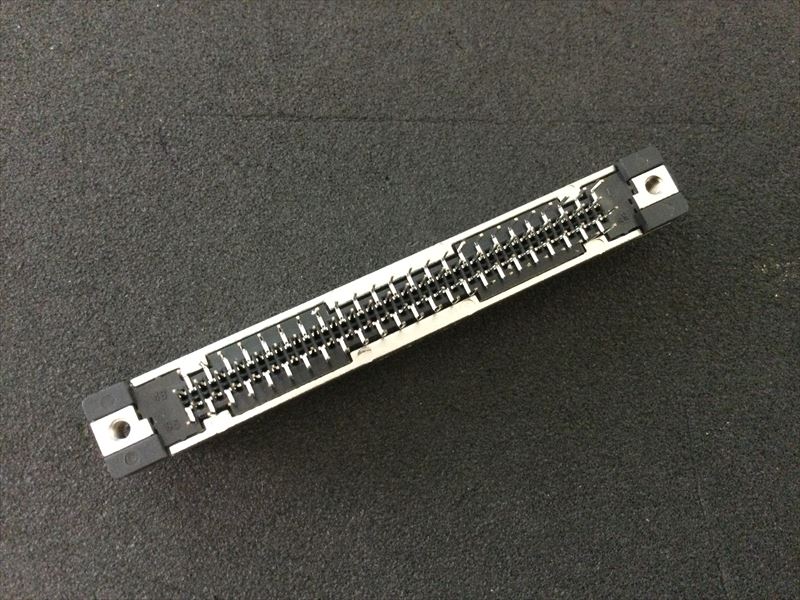

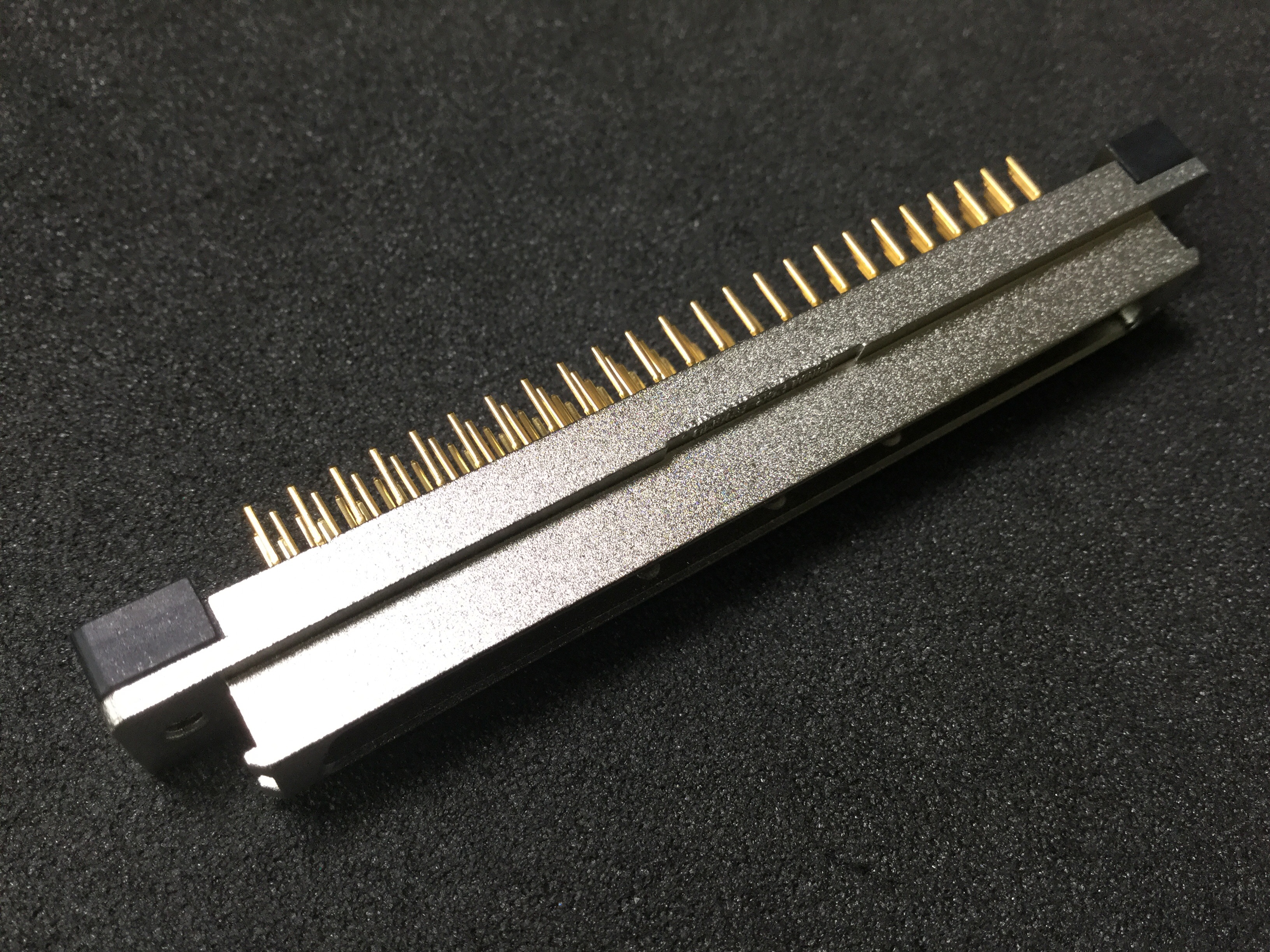

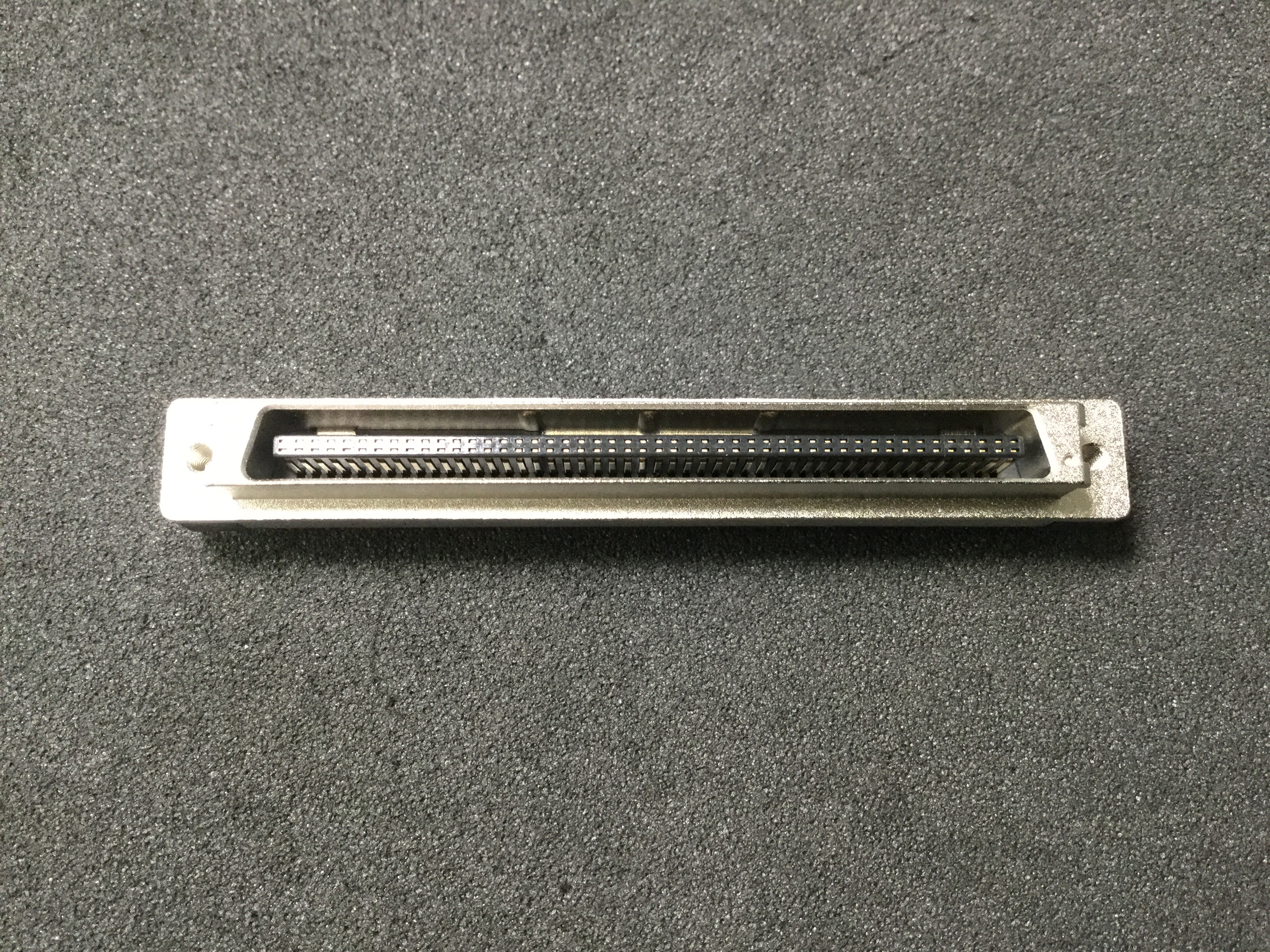

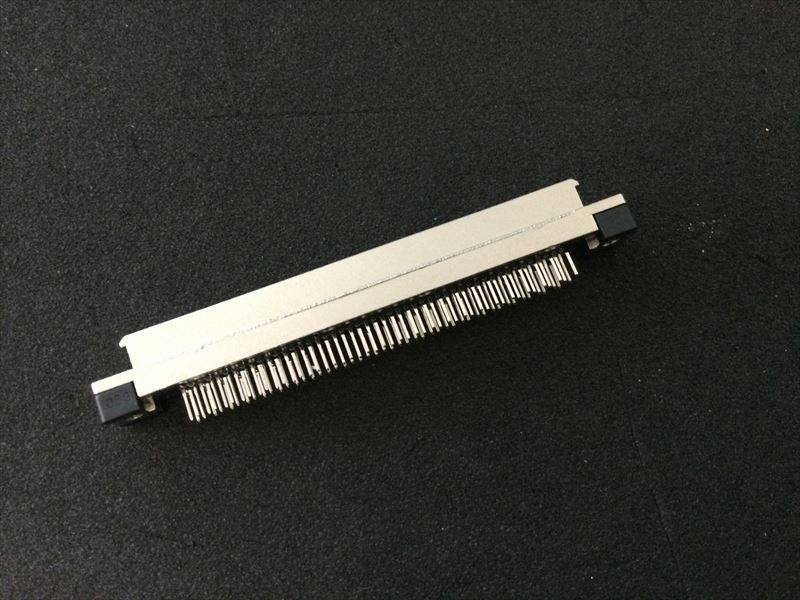

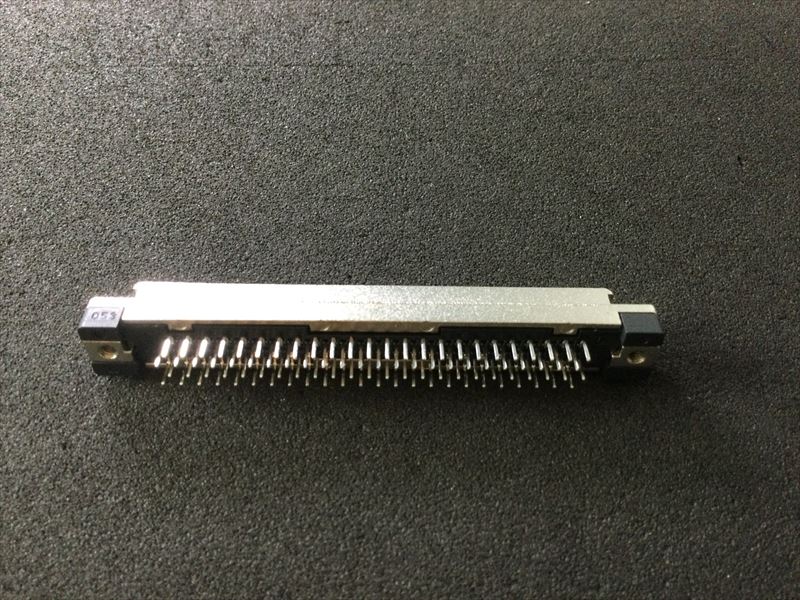

PCR-E96MD+

Name: PCR-E96MD+
Brand: HONDA
SKU: 260012941-0000-0000-0000

PCR-E96MD+ - HONDA の商品詳細ページです。

２営業日以内に回答いたします

PCR-E96MD+ の詳細情報

型番	PCR-E96MD+
メーカー	HONDA
Additional Feature	EMI FILTERED
Body Breadth	0.413 inch
Body Depth	0.22 inch
Body Length	3.215 inch
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	35 mohm
Contact Style	CENTRONIC
DIN Conformance	NO
Dielectric Withstanding Voltage	1100VAC V
Empty Shell	NO
Filter Feature	YES
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Mating Contact Pitch	0.05 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD AND PANEL
Number Of PCB Rows	4
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	1.905 mm
Plating Thickness	8u inch
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	ZINC ALLOY
Sub Category	D Type Connectors
Terminal Length	0.134 inch
Terminal Pitch	1.27 mm
Termination Type	SOLDER
Total Number of Contacts	96
UL Flammability Code	94V-0
