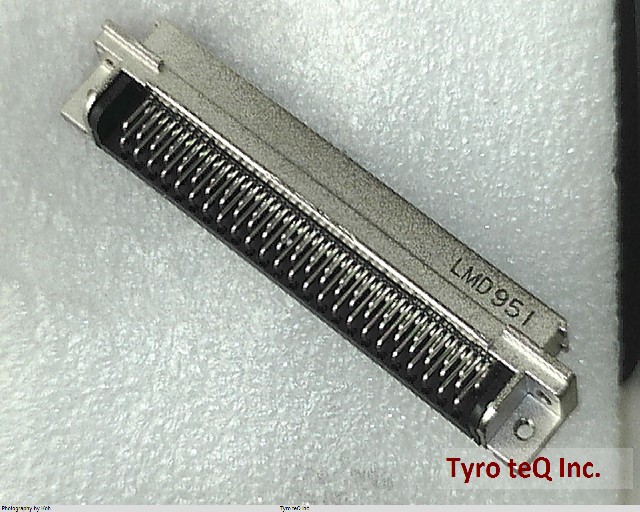

PCR-E96LMD

Name: PCR-E96LMD
Brand: HONDA
SKU: 260012940-0000-0000-0000

PCR-E96LMD - HONDA の商品詳細ページです。

２営業日以内に回答いたします

PCR-E96LMD の詳細情報

型番	PCR-E96LMD
メーカー	HONDA
Additional Feature	ESD RESISTANT
Body Breadth	0.413 inch
Body Depth	0.457 inch
Body Length	3.215 inch
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Finish - Mating	GOLD (8) OVER NICKEL
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	35 mohm
Contact Style	CENTRONIC
DIN Conformance	NO
Dielectric Withstanding Voltage	1050VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e0
MIL Conformance	NO
Mating Contact Pitch	0.05 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	4
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	1.905 mm
Plating Thickness	8u inch
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	COPPER/NICKEL
Shell Material	ZINC ALLOY
Sub Category	D Type Connectors
Terminal Length	0.134 inch
Terminal Pitch	1.27 mm
Termination Type	SOLDER
Total Number of Contacts	96
UL Flammability Code	94V-0
