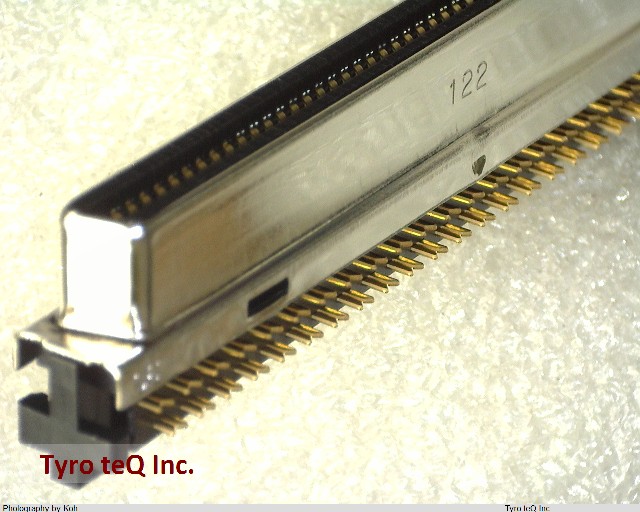

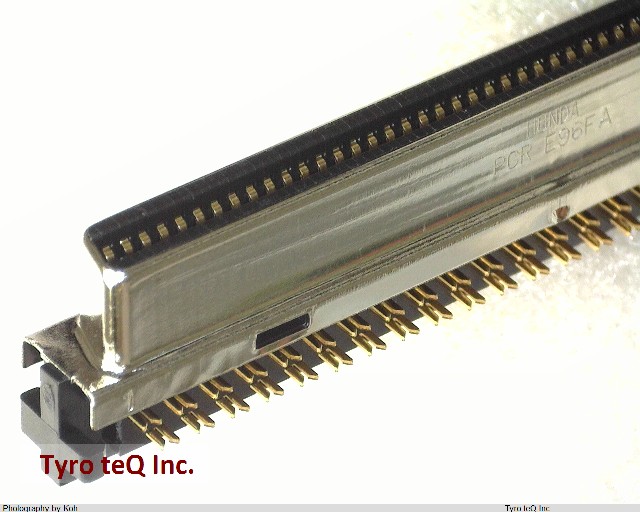

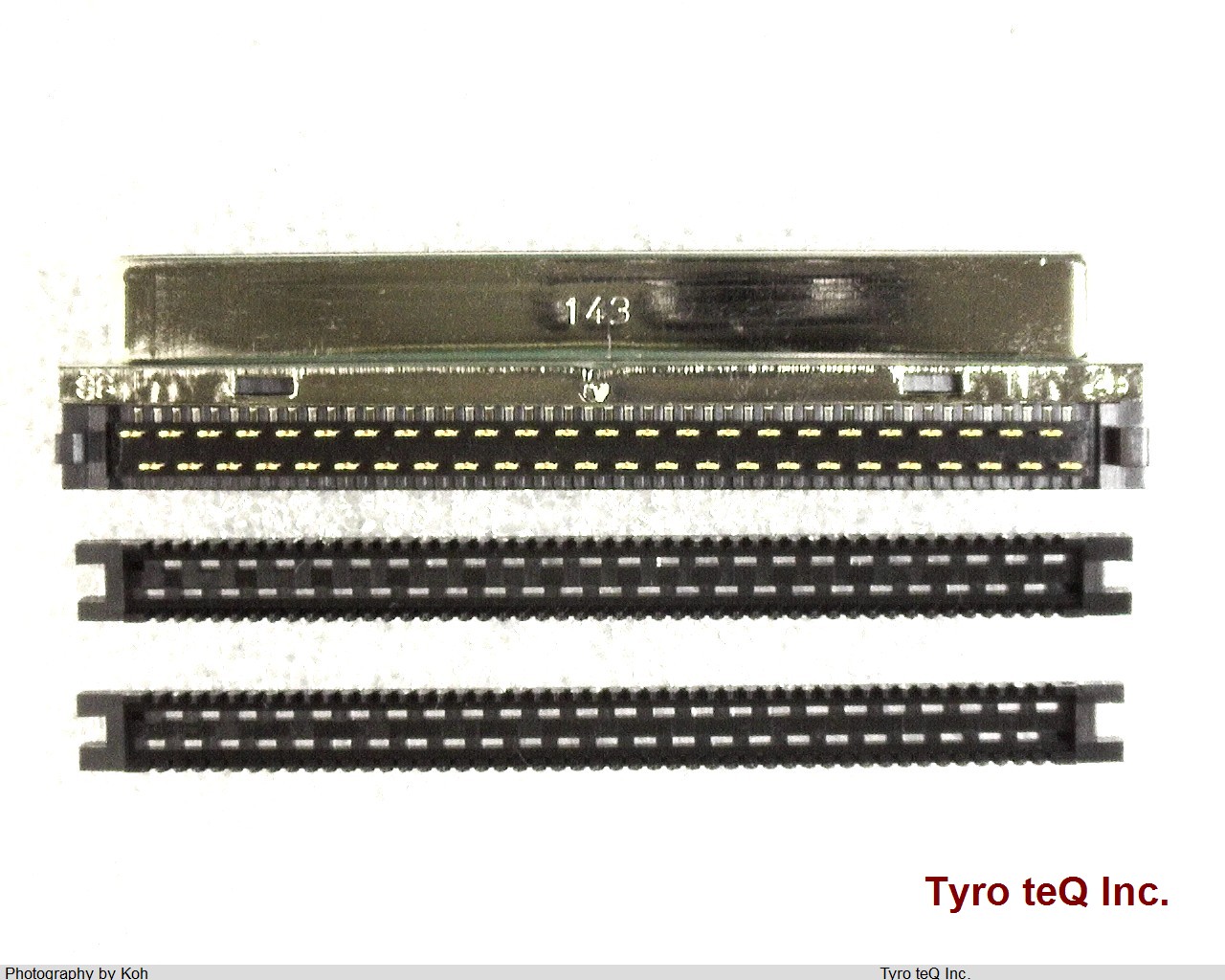

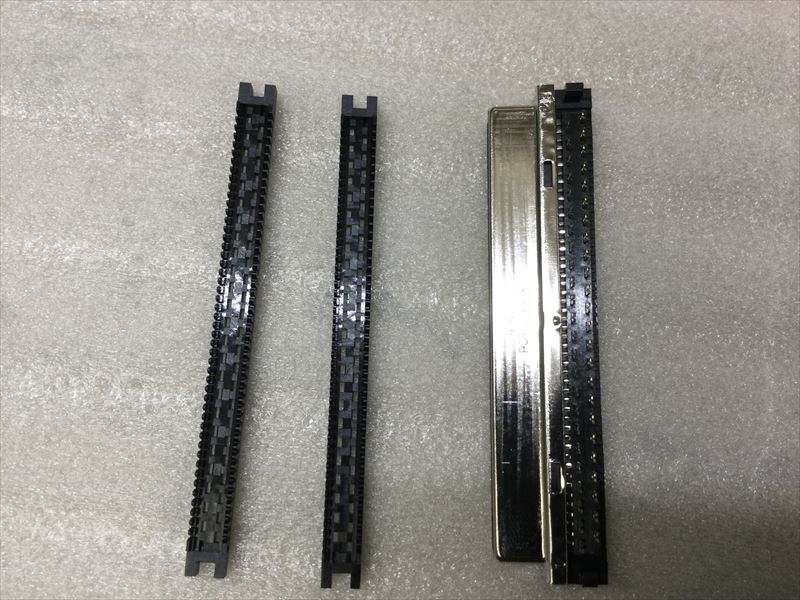

PCR-E96FA

Name: PCR-E96FA
Brand: HONDA
SKU: 260012939-0000-0000-0000

PCR-E96FA - HONDA の商品詳細ページです。

２営業日以内に回答いたします

PCR-E96FA の詳細情報

型番	PCR-E96FA
メーカー	HONDA
Body Breadth	0.287 inch
Body Depth	0.322 inch
Body Length	2.752 inch
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	GOLD (8) OVER NICKEL
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	35 mohm
Contact Style	CENTRONIC
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e0
MIL Conformance	NO
Mating Contact Pitch	0.05 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Option	GENERAL PURPOSE
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Sub Category	D Type Connectors
Termination Type	IDC
Total Number of Contacts	96
UL Flammability Code	94V-0
Wire Size-Max	28 AWG
Wire Size-Min	28 AWG
