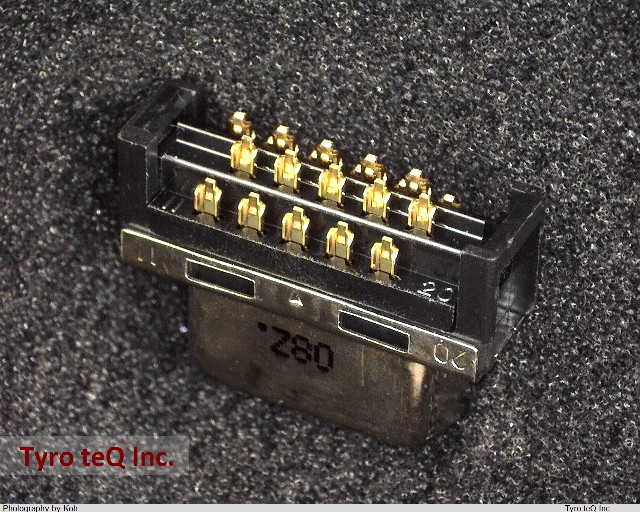

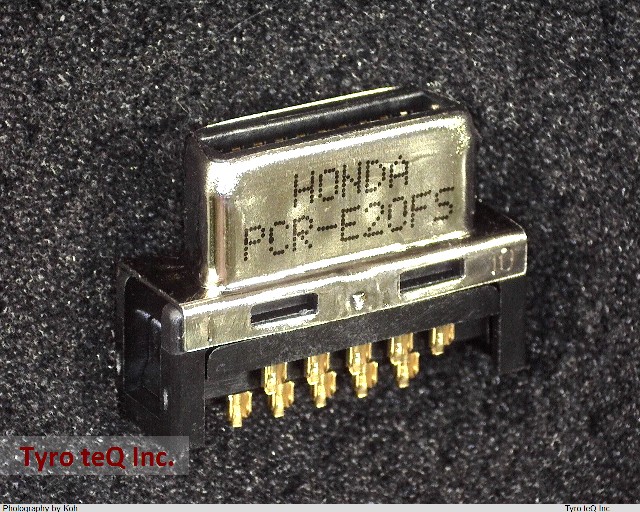

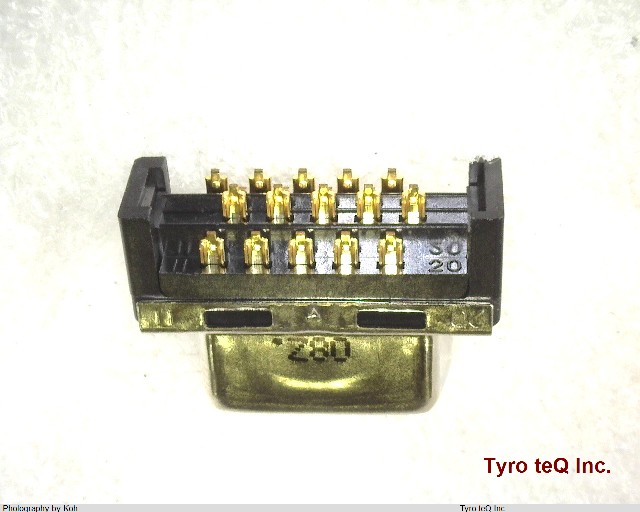

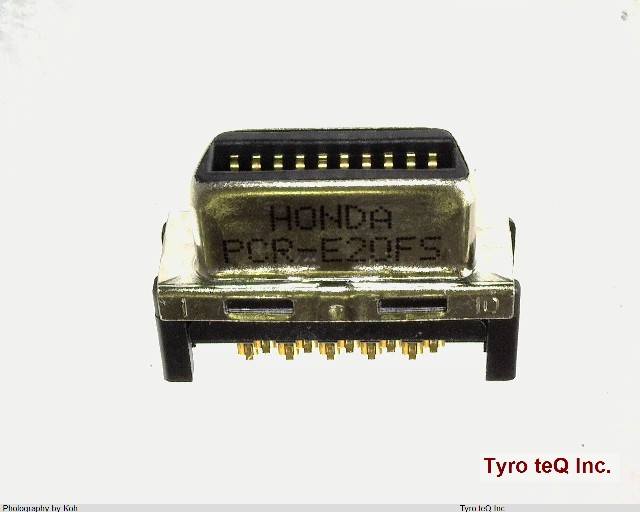

PCR-E20FS

Name: PCR-E20FS
Brand: HONDA
SKU: 260012927-0000-0000-0000

PCR-E20FS - HONDA の商品詳細ページです。

２営業日以内に回答いたします

PCR-E20FS の詳細情報

型番	PCR-E20FS
メーカー	HONDA
Body Breadth	0.287 inch
Body Depth	0.322 inch
Body Length	0.852 inch
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	35 mohm
Contact Style	CENTRONIC
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Mating Contact Pitch	0.05 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Option	GENERAL PURPOSE
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Sub Category	D Type Connectors
Termination Type	SOLDER
Total Number of Contacts	20
UL Flammability Code	94V-0
Wire Size-Max	20 AWG
Wire Size-Min	20 AWG
