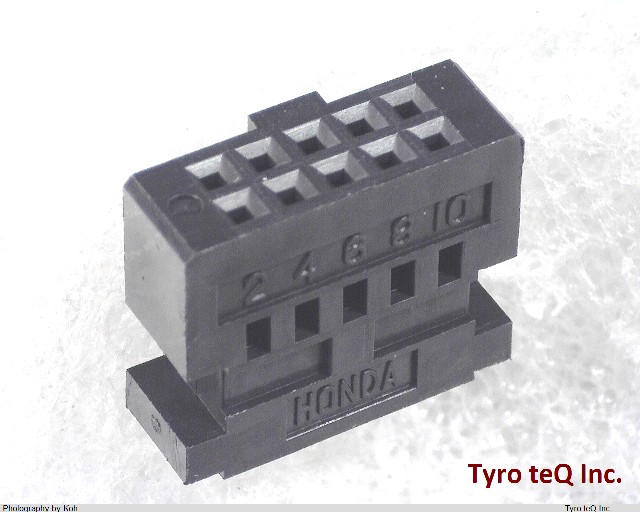

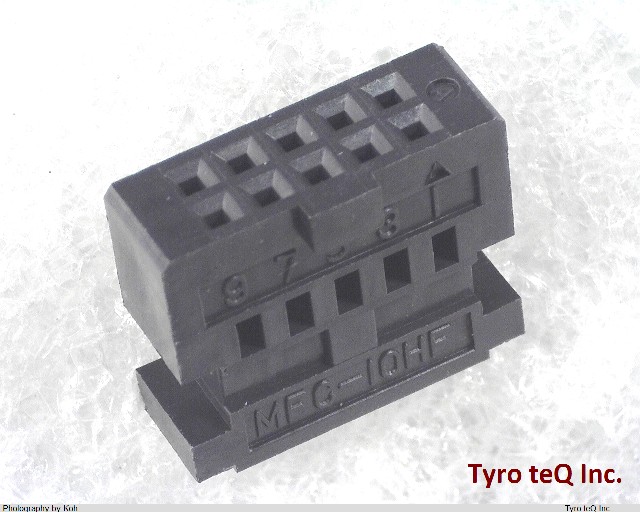

MFC-10HF

Name: MFC-10HF
Brand: HONDA
SKU: 230751364-0000-0000-0000

MFC-10HF - HONDA の商品詳細ページです。

２営業日以内に回答いたします

MFC-10HF の詳細情報

型番	MFC-10HF
メーカー	HONDA
Body Breadth	0.275 inch
Body Depth	0.59 inch
Body Length	0.679 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	AU
Contact Gender	FEMALE
Contact Material	PHOSPHOR BRONZE
Contact Pattern	RECTANGULAR
Contact Resistance	15 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	800VAC V
Filter Feature	NO
IEC Conformance	NO
Insulation Diameter-Min	0.047 inch
Insulation Resistance	1000000000 ohm
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mixed Contacts	NO
Mounting Type	CABLE
Number of Rows Loaded	2
Option	GENERAL PURPOSE
Polarization Key	CENTER
Rated Current (Signal)	3 A
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Termination Type	CRIMP
Total Number of Contacts	10
UL Flammability Code	94V-0
Wire Size-Max	24 AWG
Wire Size-Min	28 AWG
