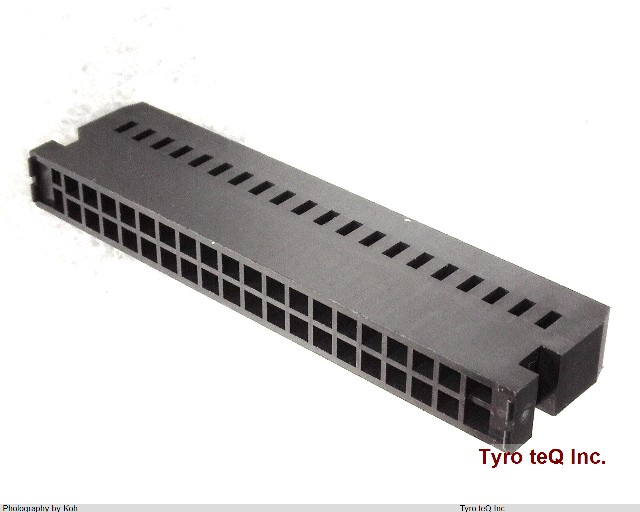

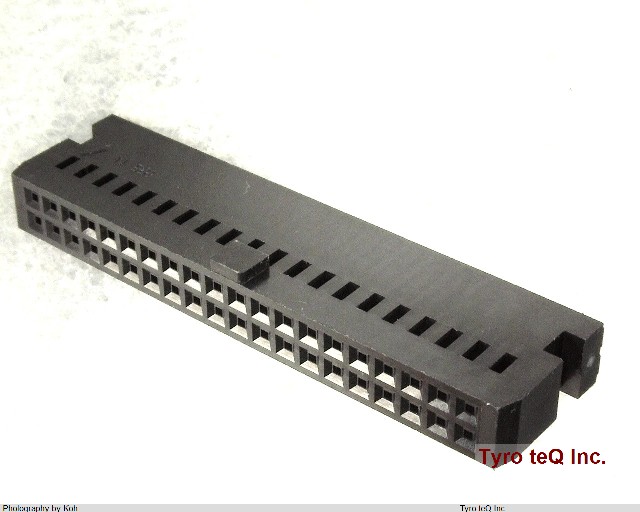

HKP-50FD2

Name: HKP-50FD2
Brand: HONDA
SKU: 180016860-0000-0000-0000

HKP-50FD2 - HONDA の商品詳細ページです。

２営業日以内に回答いたします

HKP-50FD2 の詳細情報

型番	HKP-50FD2
メーカー	HONDA
Additional Feature	ROHS COMPLIANT
Body Breadth	0.236 inch
Body Depth	0.374 inch
Body Length	2.524 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	10 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Durability	100 Cycles
Filter Feature	NO
IEC Conformance	NO
Insertion Force-Max	2.9468 N
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Plating Thickness	8u inch
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.114 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	50
UL Flammability Code	94V-0
Withdrawl Force-Min	.3892 N
