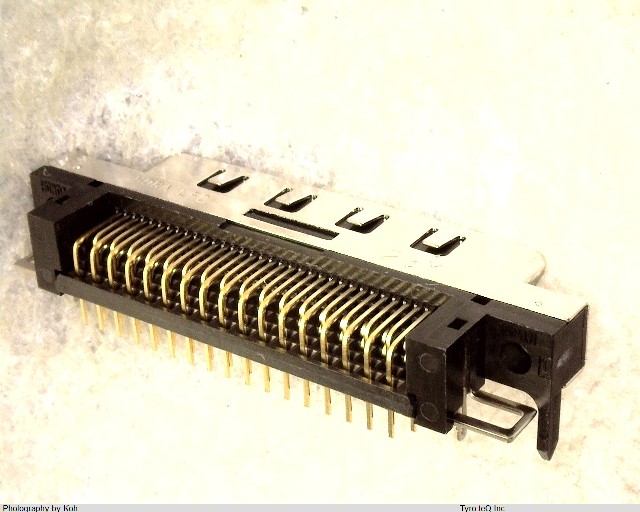

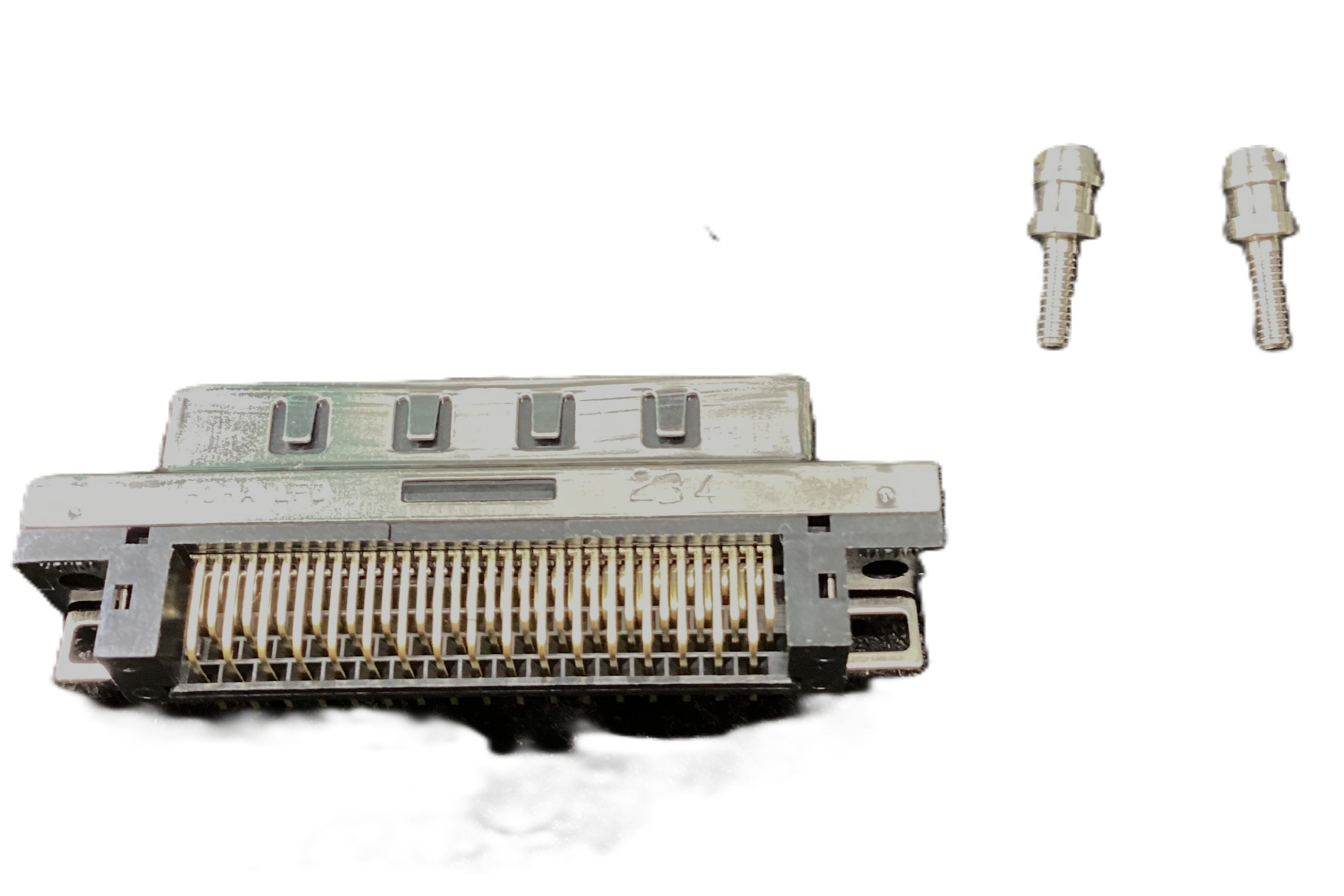

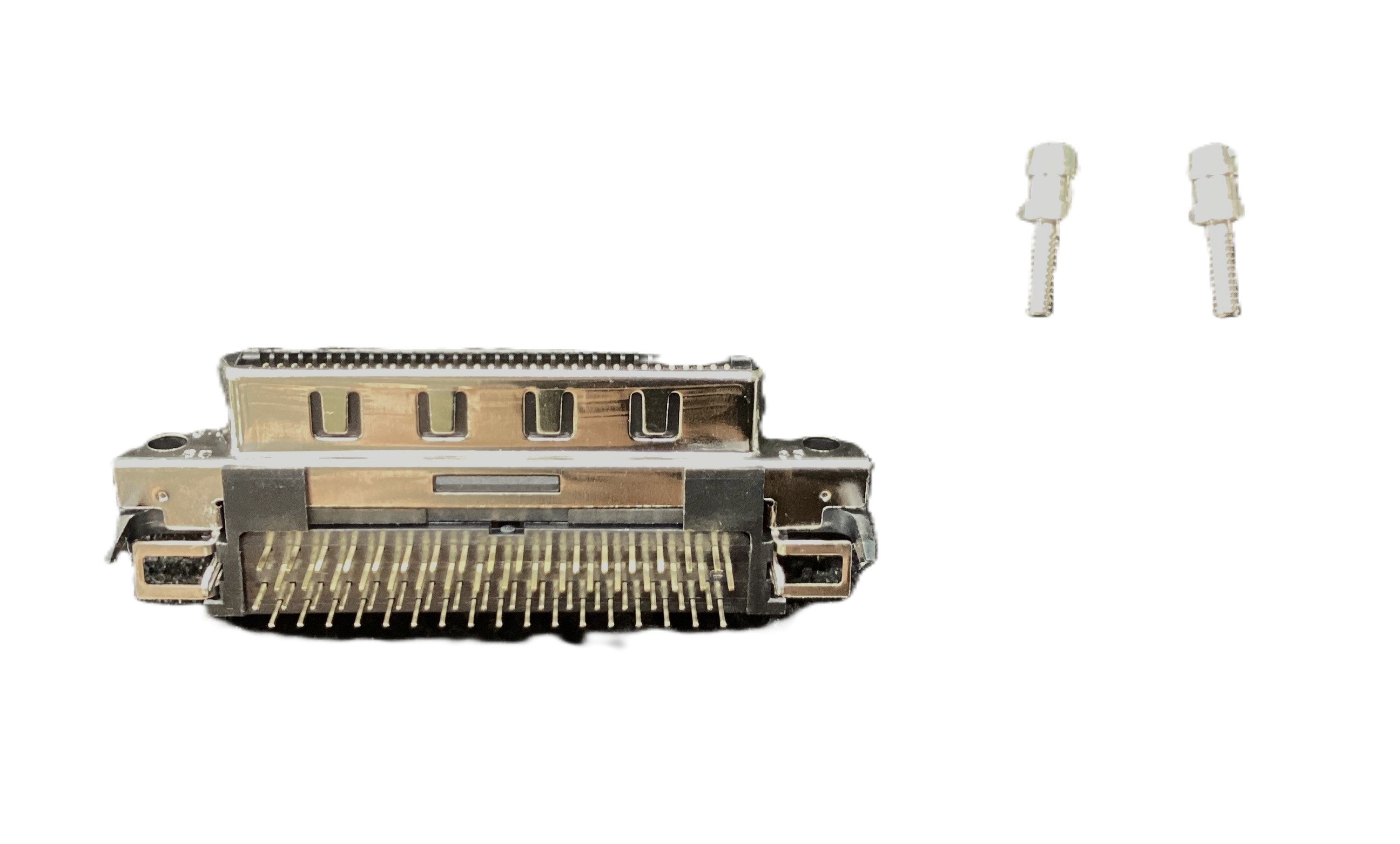

HDRA-EC68LFDT-SL

Name: HDRA-EC68LFDT-SL
Brand: HONDA
SKU: 180053044-0000-0000-0000

HDRA-EC68LFDT-SL - HONDA の商品詳細ページです。

２営業日以内に回答いたします

HDRA-EC68LFDT-SL の詳細情報

型番	HDRA-EC68LFDT-SL
メーカー	HONDA
Additional Feature	STAGGERED CONFIGURATION
Board Mounting Option	SPLIT BOARD LOCK
Body Breadth	0.236 inch
Body Depth	0.374 inch
Body Length	1.681 inch
Body/Shell Style	PLUG
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	AU-PD-NI ON NI
Contact Finish - Termination	GOLD OVER NICKEL
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	70 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	250VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	500000000 ohm
Insulator Color	BLACK
Insulator Material	POLYAMIDE
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.031 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	GUIDE PIN
Mounting Option 2	LATCH
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	4
Number of Rows Loaded	2
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
Plating Thickness	4u inch
Rated Current (Signal)	0.3 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Sub Category	D Type Connectors
Terminal Length	0.082 inch
Terminal Pitch	.7874 mm
Termination Type	SOLDER
Total Number of Contacts	68
UL Flammability Code	94V-0
