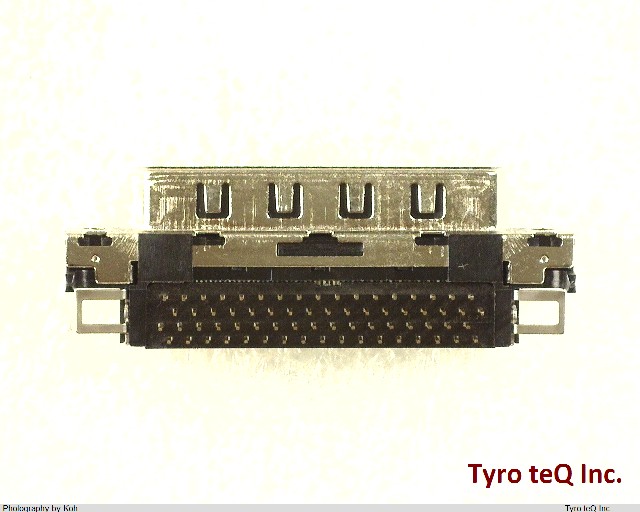

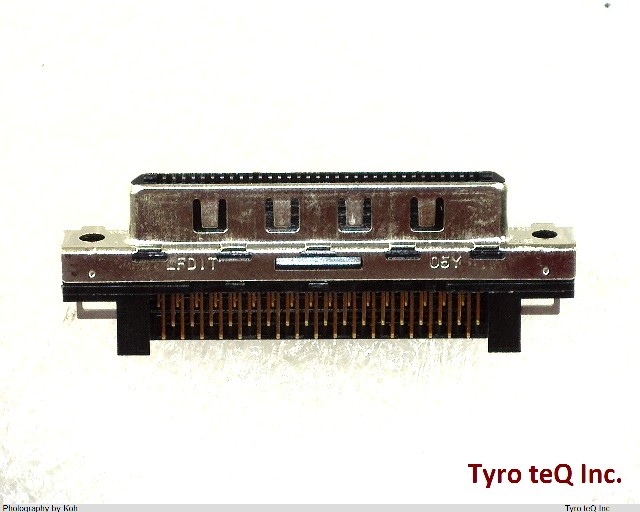

HDRA-E68LFD1T-SL+

Name: HDRA-E68LFD1T-SL+
Brand: HONDA
SKU: 180135197-0000-0000-0000

HDRA-E68LFD1T-SL+ - HONDA の商品詳細ページです。

２営業日以内に回答いたします

HDRA-E68LFD1T-SL+ の詳細情報

型番	HDRA-E68LFD1T-SL+
メーカー	HONDA
Additional Feature	ROHS COMPLIANT
Board Mounting Option	SPLIT BOARD LOCK
Body Breadth	0.236 inch
Body Depth	0.374 inch
Body Length	1.681 inch
Body/Shell Style	PLUG
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	70 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	250VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	LIQUID CRYSTAL POLYMER/POLYPHENYLENE SULFIDE
MIL Conformance	NO
Mating Contact Pitch	0.031 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	M2
Mounting Option 2	SCREWLOCKS
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD AND PANEL
Number of Rows Loaded	2
Option	GENERAL PURPOSE
Plating Thickness	4u inch
Rated Current (Signal)	0.3 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Sub Category	Other Rectangular Connectors
Termination Type	SOLDER
Total Number of Contacts	68
UL Flammability Code	94V-0
