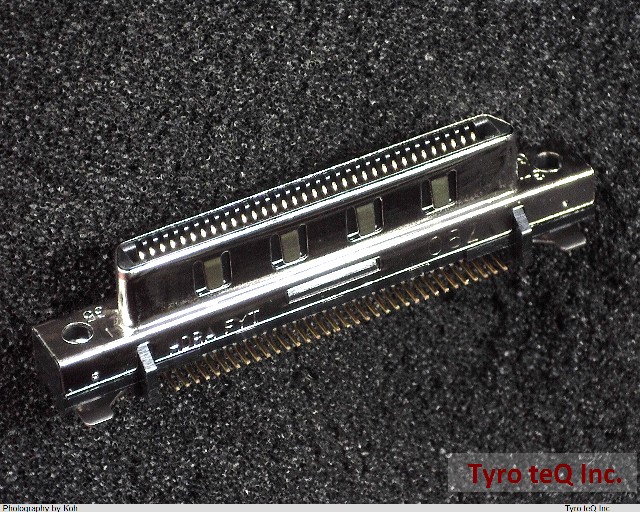

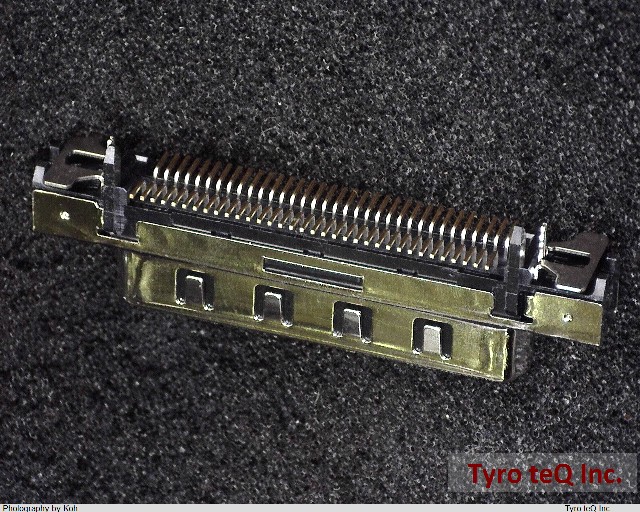

HDRA-E68FYT-SL+

Name: HDRA-E68FYT-SL+
Brand: HONDA
SKU: 180138611-0000-0000-0000

HDRA-E68FYT-SL+ - HONDA の商品詳細ページです。

２営業日以内に回答いたします

HDRA-E68FYT-SL+ の詳細情報

型番	HDRA-E68FYT-SL+
メーカー	HONDA
Additional Feature	LOW PROFILE
Board Mounting Option	SPLIT BOARD LOCK
Body Breadth	0.295 inch
Body Depth	0.217 inch
Body Length	1.681 inch
Body/Shell Style	PLUG
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	AU-PD-NI ON NI
Contact Finish - Termination	GOLD OVER NICKEL
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	70 mohm
Contact Style	BELLOWED TYPE
DIN Conformance	NO
Dielectric Withstanding Voltage	250VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	500000000 ohm
Insulator Color	BLACK
Insulator Material	LIQUID CRYSTAL POLYMER
MIL Conformance	NO
Mating Contact Pitch	0.031 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	M2
Mounting Option 2	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	2
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	4.2418 mm
Plating Thickness	4u inch
Rated Current (Signal)	0.3 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Sub Category	D Type Connectors
Terminal Pitch	.7874 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	68
UL Flammability Code	94V-0
