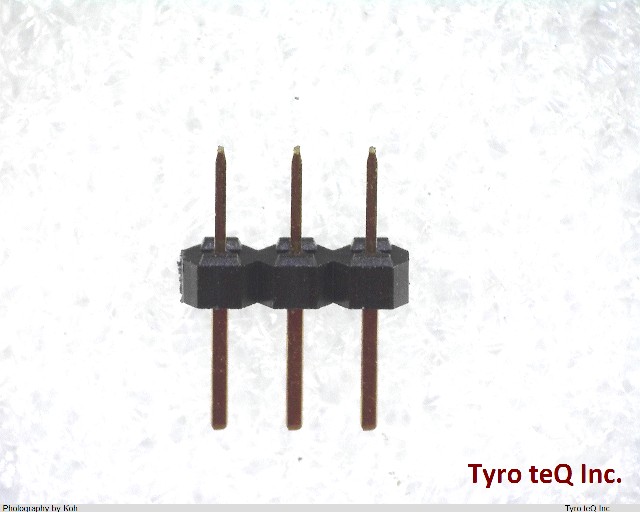

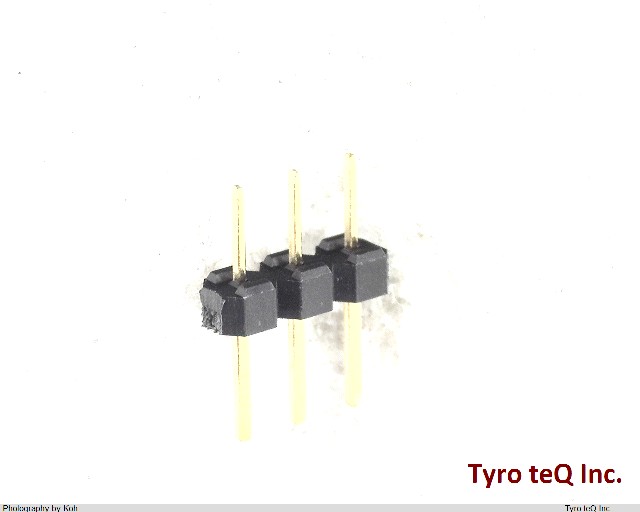

DIC-149-3P

Name: DIC-149-3P
Brand: HONDA
SKU: 140000577-0000-0000-0000

DIC-149-3P - HONDA の商品詳細ページです。

２営業日以内に回答いたします

DIC-149-3P の詳細情報

型番	DIC-149-3P
メーカー	HONDA
Body Breadth	0.1 inch
Body Depth	0.071 inch
Body Length	0.3 inch
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	GOLD (28)
Contact Finish - Termination	Gold (Au)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Filter Feature	NO
IEC Conformance	NO
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number of Rows Loaded	1
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Plating Thickness	28u inch
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.138 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	3
UL Flammability Code	94-HB
