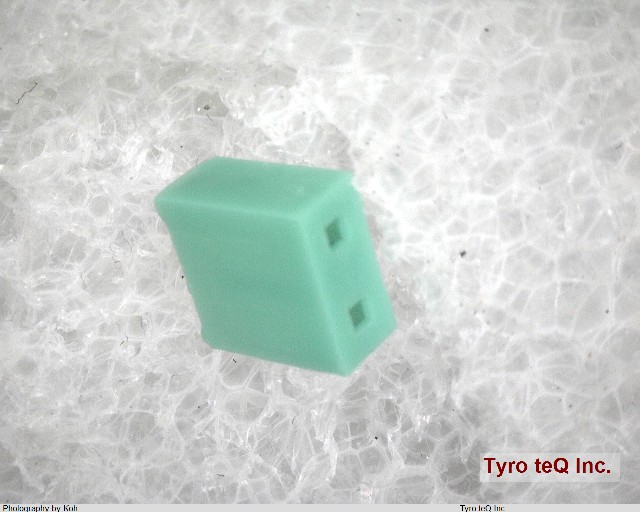

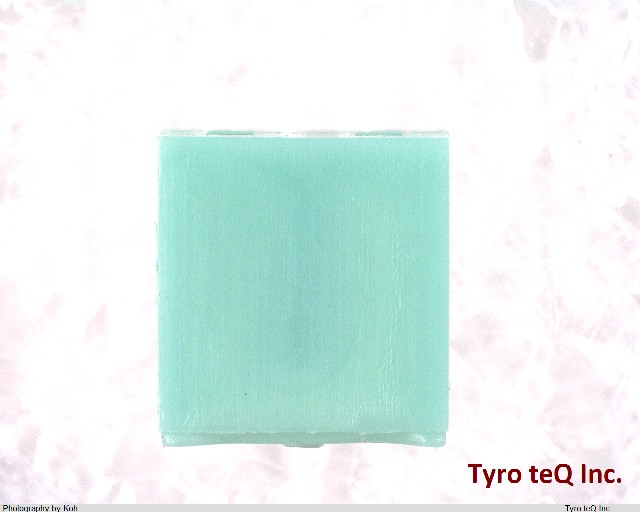

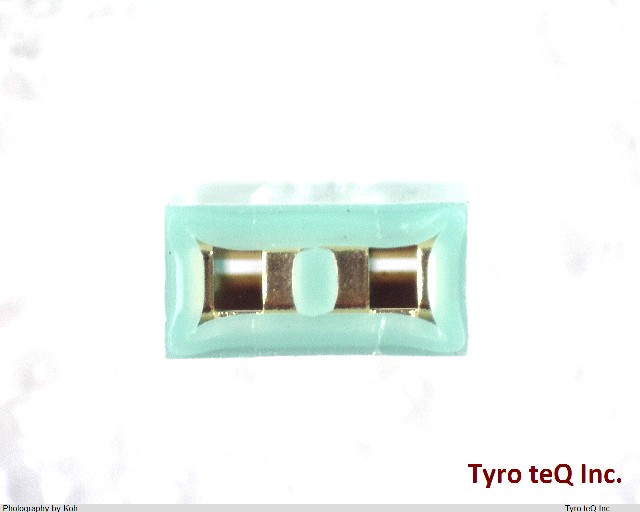

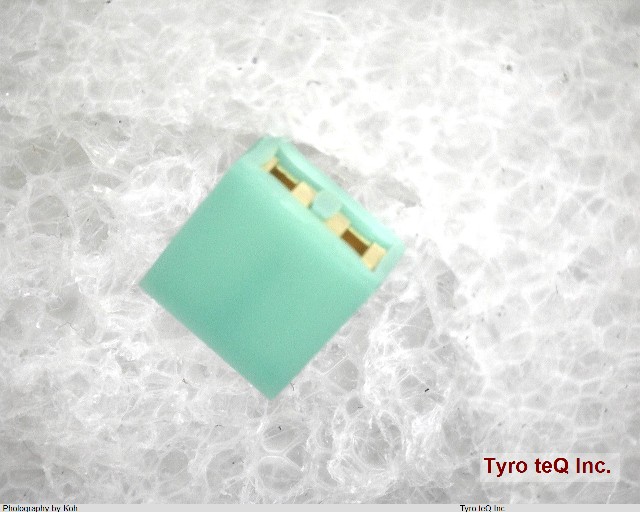

DIC-130

Name: DIC-130
Brand: HONDA
SKU: 140009429-0000-0000-0000

DIC-130 - HONDA の商品詳細ページです。

２営業日以内に回答いたします

DIC-130 の詳細情報

型番	DIC-130
メーカー	HONDA
Body Breadth	0.096 inch
Body Depth	0.213 inch
Body Length	0.197 inch
Body/Shell Style	PLUG
Connector Type	INTERCONNECTION DEVICE
Contact Finish - Mating	AU
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	1400VAC V
Insulation Resistance	1000000000 ohm
Insulator Color	GREEN
Mating Contact Pitch	0.1 inch
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Number Of Connectors	ONE
Number of Rows Loaded	1
Plating Thickness	28u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Other Interconnects
Total Number of Contacts	2
