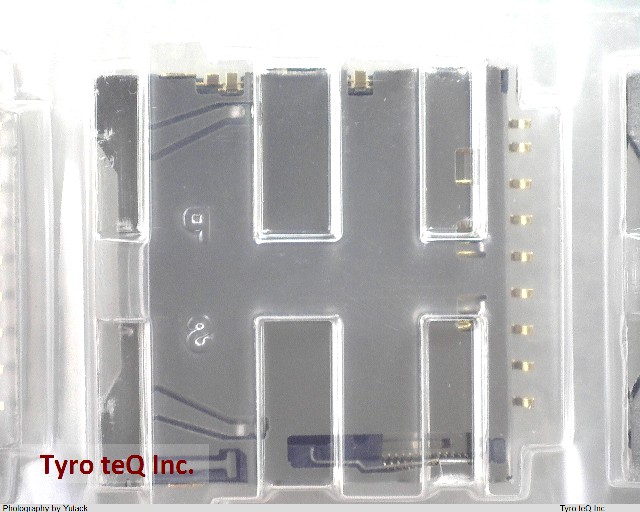

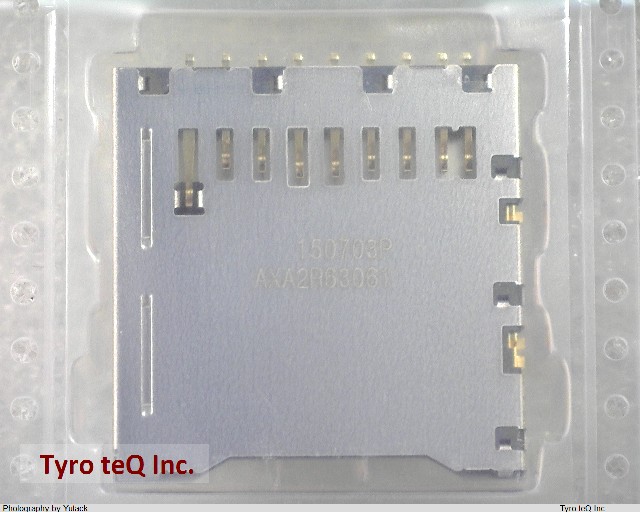

AXA2R63061P-M

Name: AXA2R63061P-M
Brand: HONDA
SKU: 110239353-0000-0000-0000

AXA2R63061P-M - HONDA の商品詳細ページです。

２営業日以内に回答いたします

AXA2R63061P-M の詳細情報

型番	AXA2R63061P-M
メーカー	HONDA
Additional Feature	ROHS COMPLIANT
Body Breadth	0.106 inch
Body Depth	1.118 inch
Body Length	1.108 inch
Body/Shell Style	SOCKET
Connector Type	PCB CONNECTOR
Contact Finish - Mating	GOLD FLASH OVER PALLADIUM NICKEL
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
Contact Resistance	150 mohm
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Durability	10000 Cycles
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.098 inch
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Ports	1
Number of Rows Loaded	1
Operating Temperature-Max	90 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Plating Thickness	FLASH inch
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	2.4892 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	9
