HN58V66AP-10 データシート

Name: HN58V66AP-10
Brand: HITACHI
SKU: 180018564-0000-0000-0000

HN58V66AP-10 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

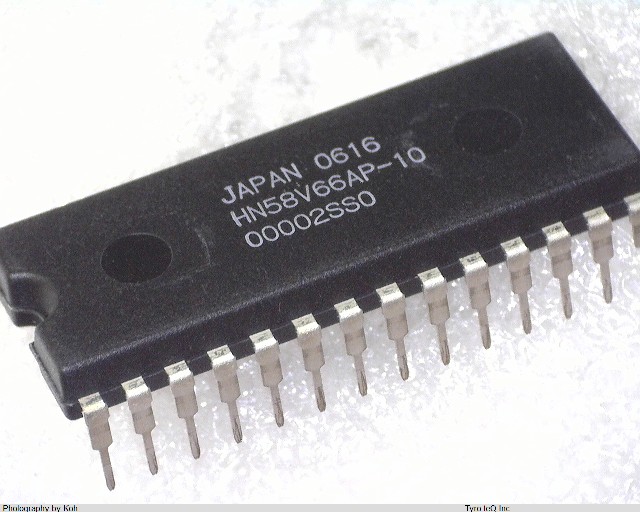

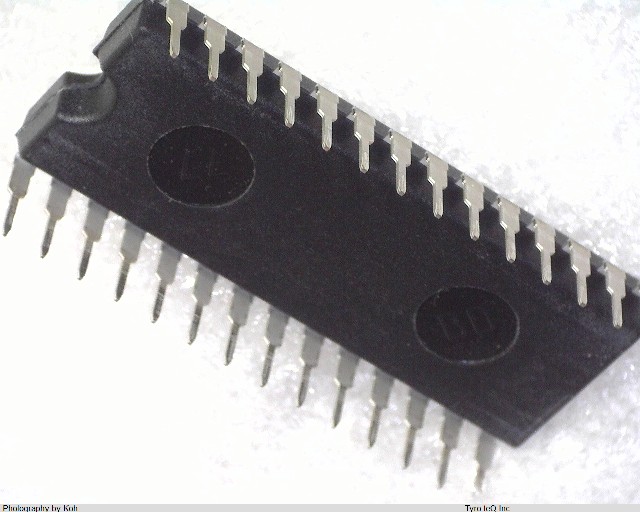

HN58V66AP-10 の詳細情報

型番	HN58V66AP-10
メーカー	HITACHI
データシート
Access Time-Max	100 ns
Additional Feature	100000 ERASE/WRITE CYCLES; 10 YEARS DATA RETENTION; SOFTWARE DATA PROTECTION; 32 BYTE PAGE WRITE
Command User Interface	NO
Data Polling	YES
Data Retention Time-Min	10
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e0
Length	35.6 mm
Memory Density	65536 bit
Memory IC Type	EEPROM
Memory Width	8
Number of Functions	1
Number of Terminals	28
Number of Words	8192 words
Number of Words Code	8K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	8KX8
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Page Size	64 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	3/5 V
Programming Voltage	3 V
Qualification Status	Not Qualified
Ready/Busy	YES
Seated Height-Max	5.7 mm
Standby Current-Max	5.0E-6 Amp
Sub Category	EEPROMs
Supply Current-Max	0.025 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN BISMUTH
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Toggle Bit	YES
Width	15.24 mm
Write Cycle Time-Max (tWC)	10 ms
