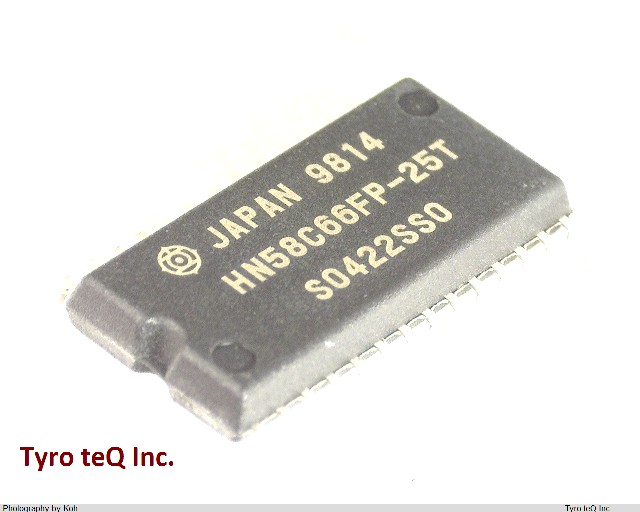

HN58C66FP-25T
1
-
- 個
２営業日以内に回答いたします
HN58C66FP-25T の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | HN58C66FP-25T |
|---|---|
| メーカー | HITACHI |
| Access Time-Max | 250 ns |
| Additional Feature | 10 YEARS DATA RETENTION |
| Data Retention Time-Min | 10 |
| JESD-30 Code | R-PDSO-G28 |
| JESD-609 Code | e0 |
| Length | 18 mm |
| Memory Density | 65536 bit |
| Memory IC Type | EEPROM |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Terminals | 28 |
| Number of Words | 8192 words |
| Number of Words Code | 8K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Max | 70 Cel |
| Operating Temperature-Min | 0 Cel |
| Organization | 8KX8 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE Meter |
| Parallel/Serial | PARALLEL |
| Programming Voltage | 5 V |
| Qualification Status | Not Qualified |
| Seated Height-Max | 3 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Width | 8.4 mm |
| 会社名称 | 株式会社 日立製作所 |
|---|---|
| 設立 | 1920年2月1日 |
| 資本金 | 458,790百万円 |
| 所在地 | 100-8280 東京都千代田区丸の内一丁目6番6号 |
| URL | http://www.hitachi.com/ |
