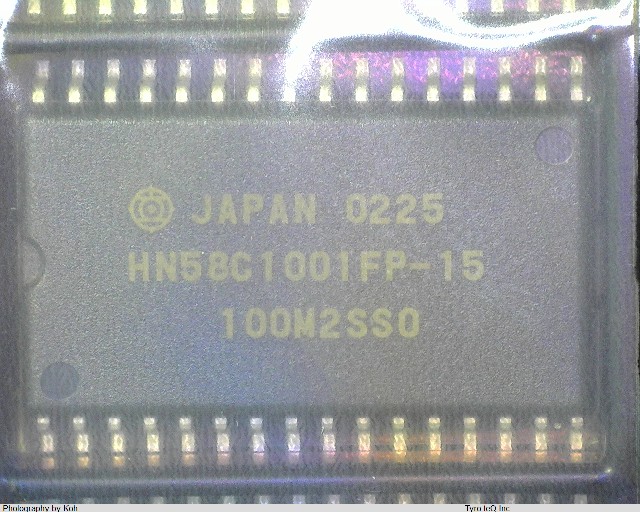

HN58C1001FP-15 データシート

Name: HN58C1001FP-15
Brand: HITACHI
SKU: 180018542-0000-0000-0000

HN58C1001FP-15 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HN58C1001FP-15 の詳細情報

型番	HN58C1001FP-15
メーカー	HITACHI
データシート
Access Time-Max	150 ns
Additional Feature	10K ERASE/WRITE CYCLES; DATA RETENTION 10 YEARS
Command User Interface	NO
Data Polling	YES
Data Retention Time-Min	10
JESD-30 Code	R-PDSO-G32
JESD-609 Code	e0
Length	20.45 mm
Memory Density	1048576 bit
Memory IC Type	EEPROM
Memory Width	8
Number of Functions	1
Number of Terminals	32
Number of Words	131072 words
Number of Words Code	128K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	128KX8
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP32,.56
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Page Size	128 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Power Supplies	5 V
Programming Voltage	5 V
Qualification Status	Not Qualified
Ready/Busy	YES
Seated Height-Max	3 mm
Standby Current-Max	2.0E-5 Amp
Sub Category	EEPROMs
Supply Current-Max	0.05 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Toggle Bit	YES
Width	11.3 mm
Write Cycle Time-Max (tWC)	10 ms
