HN28F101FP-15 Hitachi

HN28F101FP-15 - HITACHI の商品詳細ページです。

1

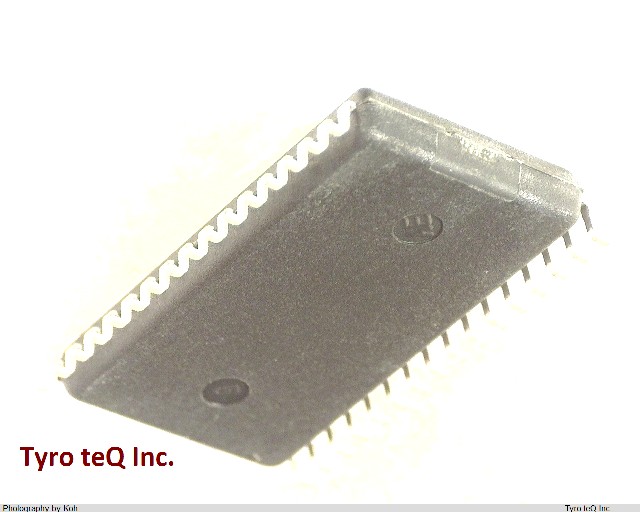

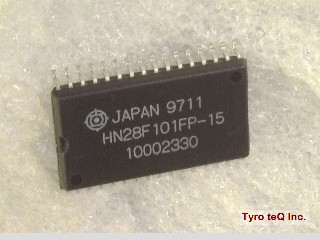

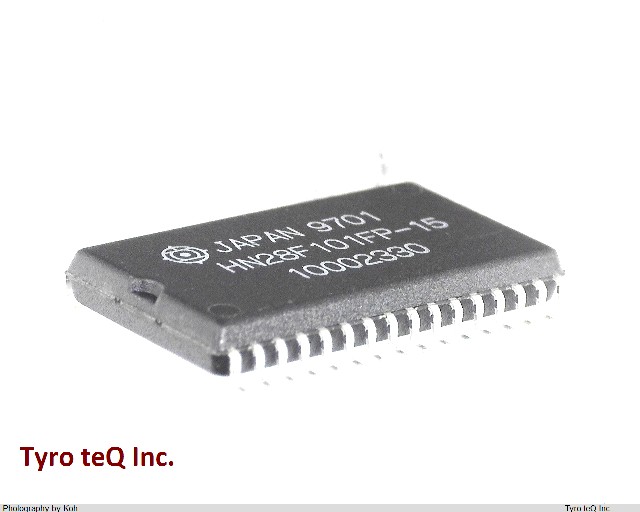

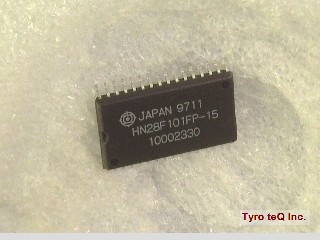

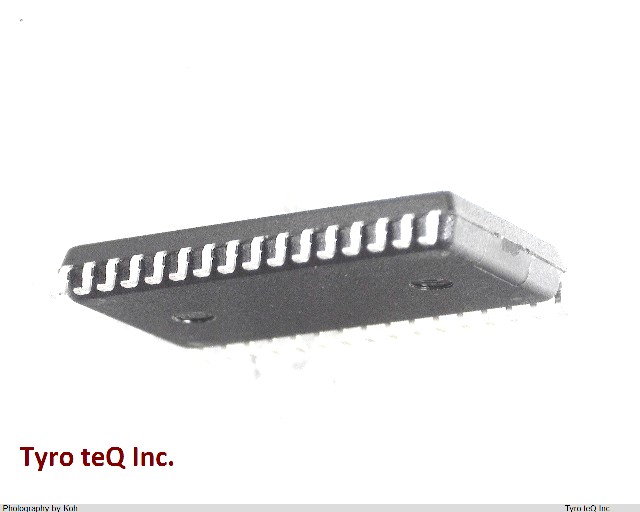

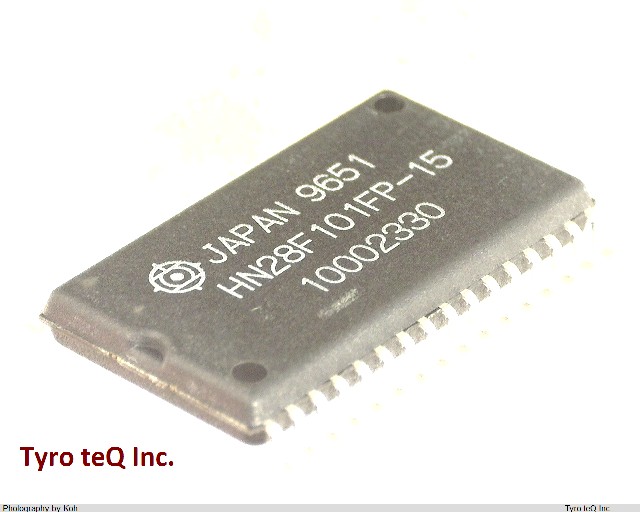

HN28F101FP-15
  • HN28F101FP-15
  • HN28F101FP-15
  • HN28F101FP-15
  • HN28F101FP-15
  • HN28F101FP-15
  • HN28F101FP-15
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

HN28F101FP-15 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番HN28F101FP-15
メーカーHITACHI
Access Time-Max 150 ns
Command User Interface NO
Data Polling NO
JESD-30 Code R-PDSO-G32
JESD-609 Code e0
Length 20.45 mm
Memory Density 1048576 bit
Memory IC Type FLASH
Memory Width 8
Number of Functions 1
Number of Terminals 32
Number of Words 131072 words
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Organization 128KX8
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP32,.56
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Parallel/Serial PARALLEL
Power Supplies 5 V
Programming Voltage 12 V
Qualification Status Not Qualified
Seated Height-Max 3 mm
Standby Current-Max 2.0E-5 Amp
Sub Category Flash Memories
Supply Current-Max 0.05 mA
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Toggle Bit NO
Type NOR TYPE
Width 11.3 mm
会社名称株式会社 日立製作所
設立1920年2月1日
資本金458,790百万円
所在地100-8280 東京都千代田区丸の内一丁目6番6号
URLhttp://www.hitachi.com/
