HN27C256G-20 Hitachi

HN27C256G-20 - HITACHI の商品詳細ページです。

1

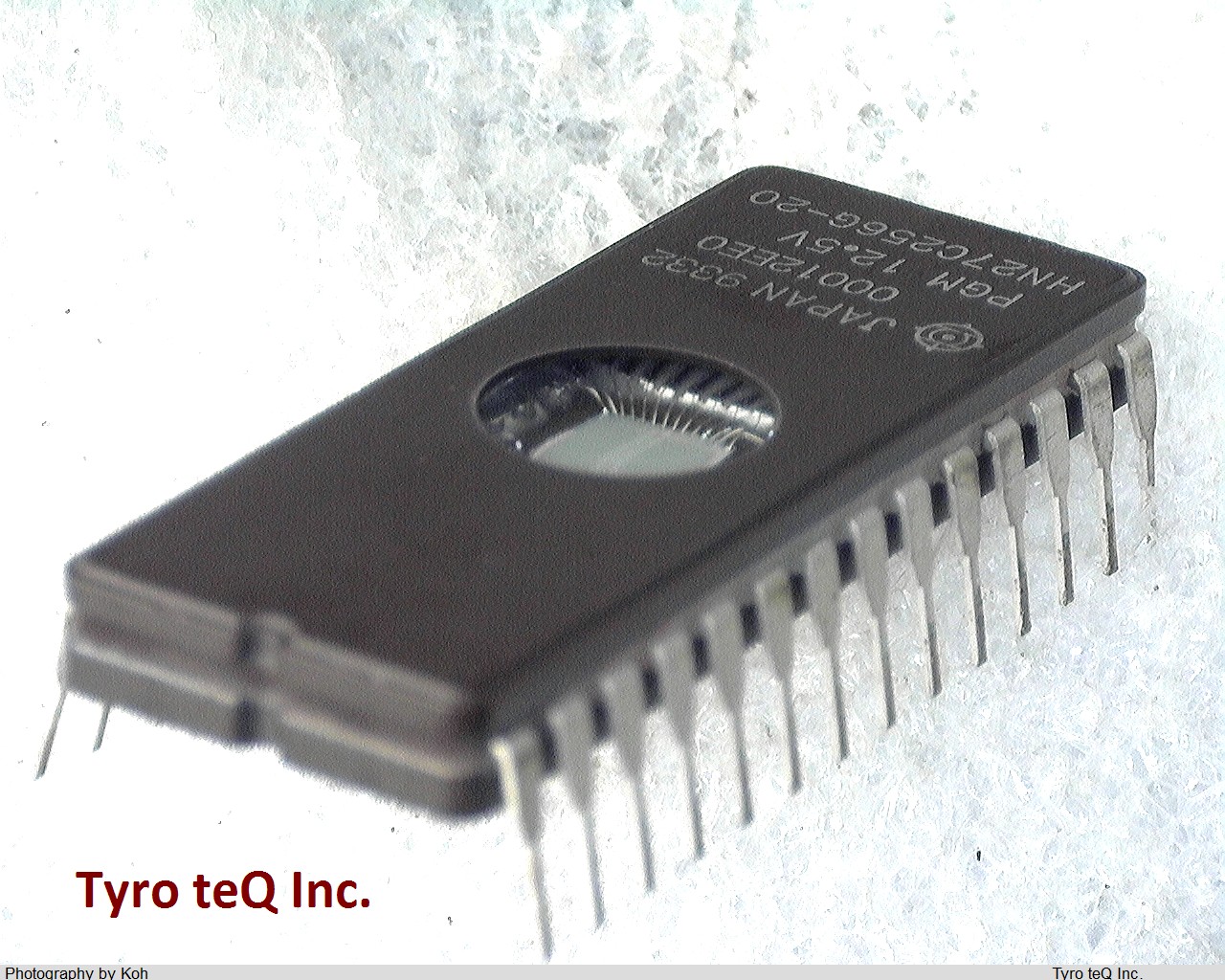

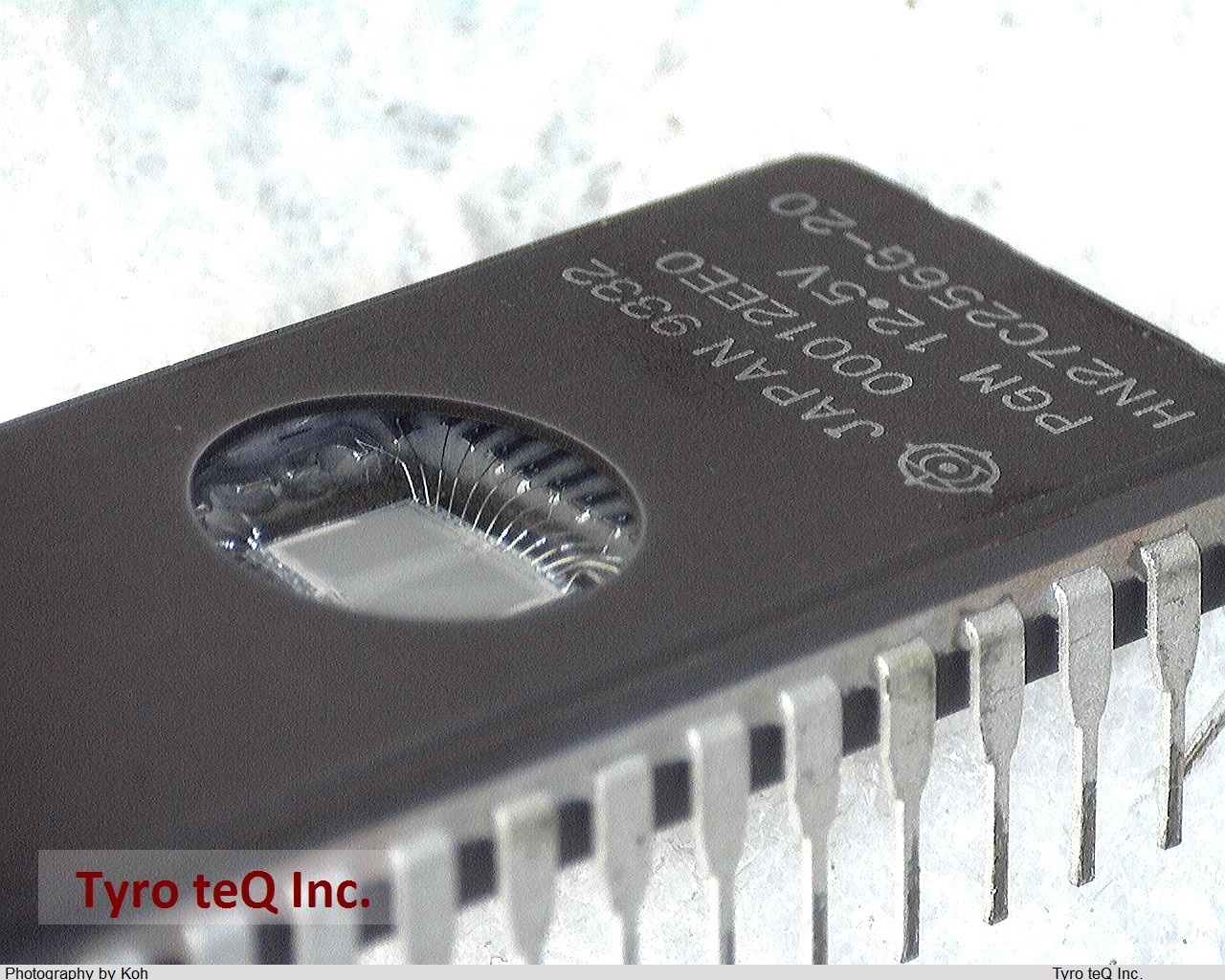

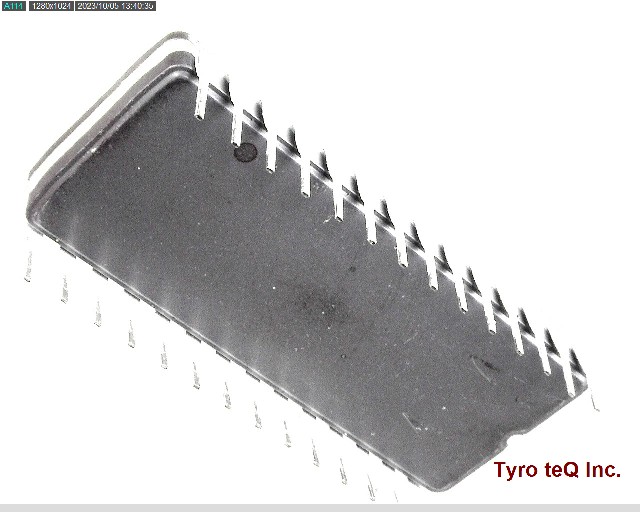

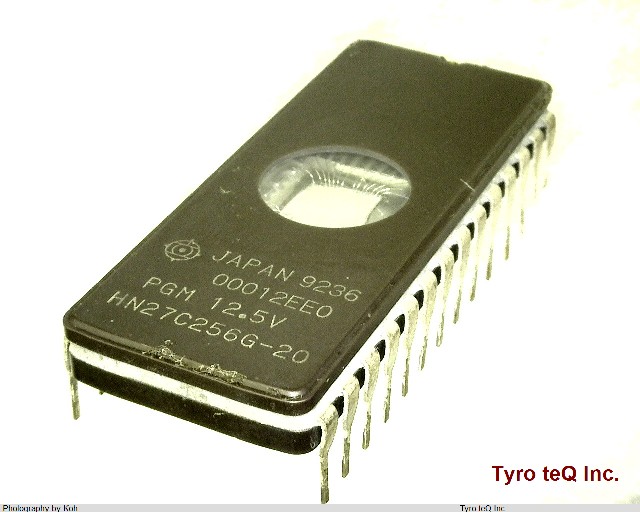

HN27C256G-20
  • HN27C256G-20
  • HN27C256G-20
  • HN27C256G-20
  • HN27C256G-20
  • HN27C256G-20
  • HN27C256G-20
  • HN27C256G-20
  • HN27C256G-20
  • HN27C256G-20
  • HN27C256G-20
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

HN27C256G-20 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番HN27C256G-20
メーカーHITACHI
Access Time-Max 200 ns
I/O Type COMMON
JESD-30 Code R-GDIP-T28
JESD-609 Code e0
Length 36.83 mm
Memory Density 262144 bit
Memory IC Type UVPROM
Memory Width 8
Number of Functions 1
Number of Terminals 28
Number of Words 32768 words
Number of Words Code 32K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max 70 Cel
Operating Temperature-Min 0 Cel
Organization 32KX8
Output Characteristics 3-STATE
Package Body Material CERAMIC, GLASS-SEALED
Package Code WDIP
Package Equivalence Code DIP28,.6
Package Shape RECTANGULAR
Package Style IN-LINE, WINDOW Meter
Parallel/Serial PARALLEL
Power Supplies 5 V
Programming Voltage 12.5 V
Qualification Status Not Qualified
Seated Height-Max 5.89 mm
Standby Current-Max 2.0E-5 Amp
Sub Category EPROMs
Supply Current-Max 0.03 mA
Supply Voltage-Max (Vsup) 5.25 V
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 15.24 mm
