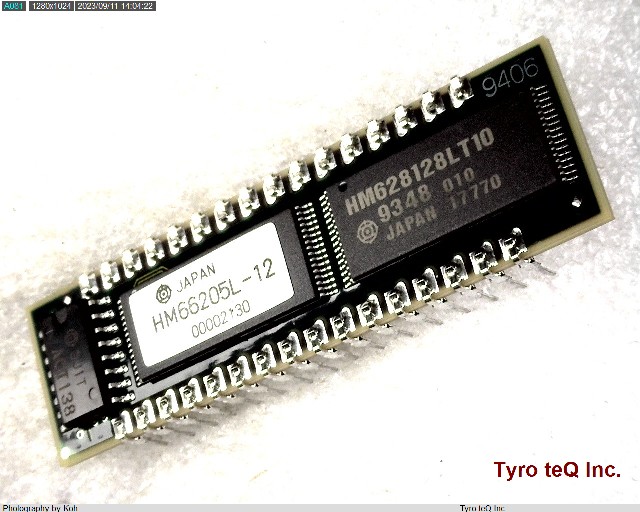

HM66205L-12

Name: HM66205L-12
Brand: HITACHI
SKU: 400067155-0000-0000-0000

HM66205L-12 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HM66205L-12 の詳細情報

型番	HM66205L-12
メーカー	HITACHI
Access Time-Max	120 ns
Access Time-Max (ns)	120
DLA Qualification	Not Qualified
I/O Type	COMMON
J-STD-609 Code	e0
JESD-30 Code	R-XDMA-T32
Memory Density	4194304 bit
Memory Density (bits)	4194304
Memory IC Type	SRAM MODULE
Memory Organization	512KX8
Memory Width	8
Number of Functions	1
Number of Ports	1
Number of Terminals	32
Number of Words	524288 words
Number of Words (words)	524288
Number of Words Code	512K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Organization	512KX8
Output Characteristics	3-STATE
Output Enable	YES
Package Body Material	UNSPECIFIED
Package Code	DIP
Package Equivalence Code	DIP32,.6
Package Shape	RECTANGULAR
Package Style	MICROELECTRONIC ASSEMBLY Meter
Parallel/Serial	PARALLEL
Power Supplies (V)	5
Qualification Status	Not Qualified
Standby Current-Max (A)	0.0002
Standby Voltage-Min (V)	2
Sub Category	SRAMs
Supply Current-Max (mA)	89
Supply Voltage-Max (V)	5.5
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (V)	4.5
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (V)	5
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Form	THROUGH-HOLE
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
