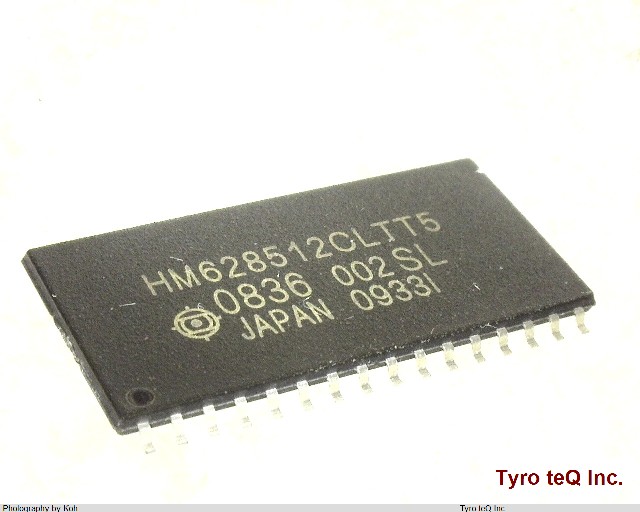

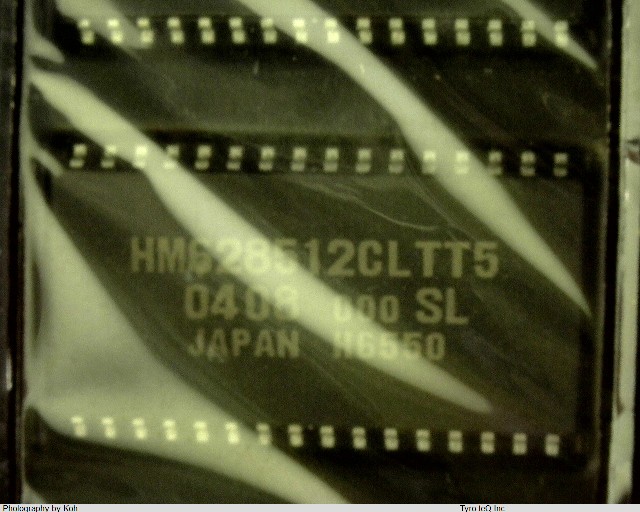

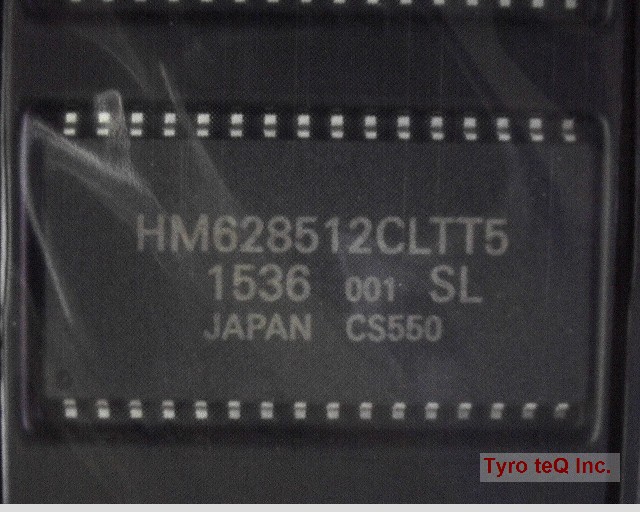

HM628512CLTT-5SL

Name: HM628512CLTT-5SL
Brand: HITACHI
SKU: 180149124-0000-0000-0000

HM628512CLTT-5SL - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HM628512CLTT-5SL の詳細情報

型番	HM628512CLTT-5SL
メーカー	HITACHI
Access Time-Max	55 ns
I/O Type	COMMON
JESD-30 Code	R-PDSO-G32
JESD-609 Code	e0
Length	20.95 mm
Memory Density	4194304 bit
Memory IC Type	STANDARD SRAM
Memory Width	8
Number of Functions	1
Number of Terminals	32
Number of Words	524288 words
Number of Words Code	512K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-20 Cel
Organization	512KX8
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	TSOP2
Package Equivalence Code	TSOP32,.46
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, THIN PROFILE Meter
Parallel/Serial	PARALLEL
Power Supplies	5 V
Qualification Status	Not Qualified
Seated Height-Max	1.2 mm
Standby Current-Max	1.0E-5 Amp
Standby Voltage-Min	2 V
Sub Category	SRAMs
Supply Current-Max	0.025 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	10.16 mm
