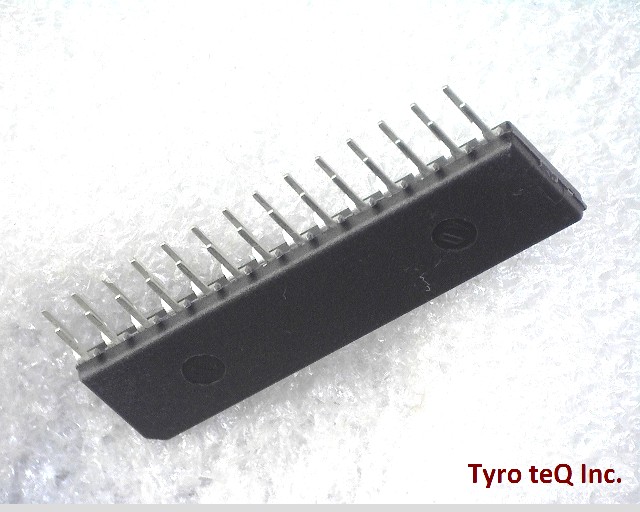

HM514800AZ8

Name: HM514800AZ8
Brand: HITACHI
SKU: 180017332-0000-0000-0000

HM514800AZ8 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HM514800AZ8 の詳細情報

型番	HM514800AZ8
メーカー	HITACHI
Access Mode	FAST PAGE
Access Time-Max	80 ns
Additional Feature	RAS ONLY/CAS BEFORE RAS REFRESH
I/O Type	COMMON
JESD-30 Code	R-PZIP-T28
JESD-609 Code	e0
Length	35.58 mm
Memory Density	4194304 bit
Memory IC Type	FAST PAGE DRAM
Memory Width	8
Number of Functions	1
Number of Ports	1
Number of Terminals	28
Number of Words	524288 words
Number of Words Code	512K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	512KX8
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	ZIP
Package Equivalence Code	ZIP28,.1
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Refresh Cycles	1024
Seated Height-Max	10.16 mm
Self Refresh	NO
Standby Current-Max	0.001 Amp
Sub Category	DRAMs
Supply Current-Max	0.1 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	1.27 mm
Terminal Position	ZIG-ZAG
Width	2.85 mm
