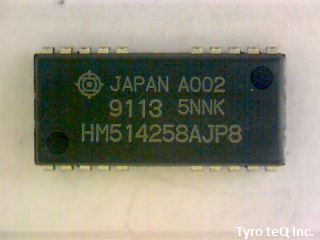

HM514258AJP8

Name: HM514258AJP8
Brand: HITACHI
SKU: 180150738-0000-0000-0000

HM514258AJP8 - HITACHI の商品詳細ページです。

２営業日以内に回答いたします

HM514258AJP8 の詳細情報

型番	HM514258AJP8
メーカー	HITACHI
Access Mode	STATIC COLUMN
Access Time-Max	80 ns
Additional Feature	RAS ONLY/CAS BEFORE RAS REFRESH
I/O Type	COMMON
JESD-30 Code	R-PDSO-J20
JESD-609 Code	e0
Length	16.9 mm
Memory Density	1048576 bit
Memory IC Type	STATIC COLUMN DRAM
Memory Width	4
Number of Functions	1
Number of Ports	1
Number of Terminals	20
Number of Words	262144 words
Number of Words Code	256K
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Organization	256KX4
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	SOJ
Package Equivalence Code	SOJ20/26,.34
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Power Supplies	5 V
Qualification Status	Not Qualified
Refresh Cycles	512
Seated Height-Max	3.76 mm
Standby Current-Max	0.001 Amp
Sub Category	SRAMs
Supply Current-Max	0.075 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	TIN LEAD
Terminal Form	J BEND
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	7.62 mm
